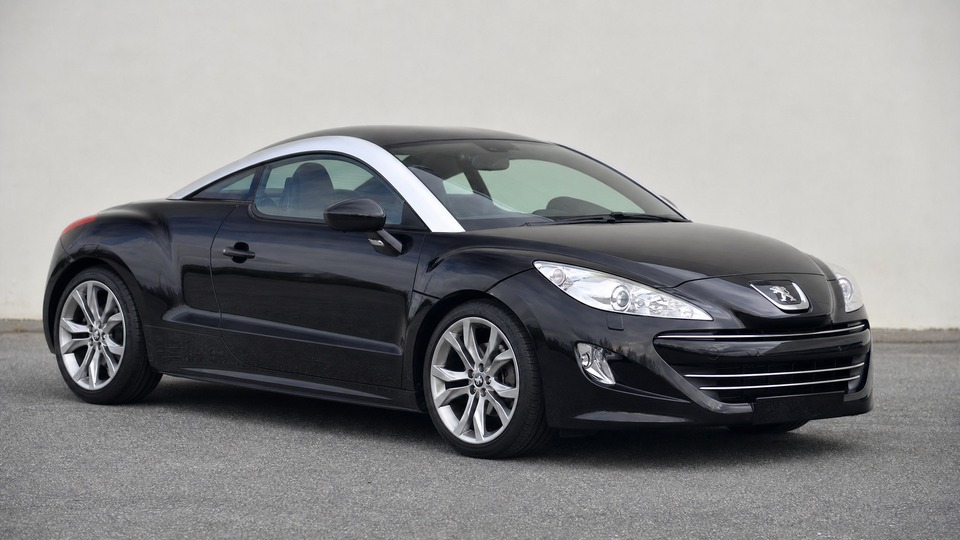

Peugeot RCZ 2.0 HDi

The DPF requires periodic regeneration cycles where exhaust temperatures reach 600+ degrees to burn off accumulated soot. This only happens during sustained higher-speed driving (typically 20+ minutes above 60 km/h). Cars used predominantly for short urban trips accumulate soot faster than the system can burn it off. Warning light appears when the filter reaches approximately 45% blockage. If caught early, a forced regeneration at a dealer costs around €100-150. Professional DPF cleaning runs €200-400. If the filter is beyond cleaning, replacement costs €1,200-2,000 depending on whether a genuine or aftermarket unit is fitted. Regular motorway driving is the single most effective prevention. Forum members consistently describe this as a usage pattern issue rather than a design defect.

The EGR valve on the DW10CTED4 gradually accumulates carbon and soot deposits, particularly on cars driven at low speeds or in urban traffic. Symptoms include rough idle, reduced power, increased smoke, and the engine management light. A stuck-open EGR valve can also accelerate DPF clogging. Cleaning the EGR valve costs €150-250 at an independent garage if it can be removed and cleaned. If the valve or integrated cooler needs replacement, the part alone costs €300-500, with labor adding another €150-200 due to the difficult access on the RCZ. Total replacement runs €500-700. Some owners report successful cleaning extending the valve's life by 30,000-50,000 km. The issue typically becomes noticeable between 80,000-130,000 km depending on driving patterns.

The dual mass flywheel absorbs torsional vibrations from the diesel engine. Over time, the internal springs weaken, producing a distinctive rattle at idle and juddering during takeoff in first gear. The official workshop time for clutch and DMF replacement is approximately 10 hours due to gearbox removal. A complete DMF, clutch kit, slave cylinder, and release bearing replacement costs €800-1,100 at an independent garage or €1,200-1,500 at a Peugeot dealer. Some owners opt for a solid flywheel conversion kit which eliminates future DMF failures but puts more stress on the gearbox. Typically occurs between 100,000-180,000 km depending on driving style. Urban stop-and-go driving accelerates wear. When replacing, always include the clutch kit, slave cylinder, and new flywheel bolts.

The Garrett turbocharger on the 2.0 HDi is generally robust, but can fail from oil starvation (caused by blocked oil feed pipe or low oil level) or excessive carbon buildup in the variable geometry vanes. Signs include loss of power, blue or grey exhaust smoke, and a whining or grinding noise from the turbo area. A remanufactured Garrett turbo costs €300-500, while a new genuine unit runs €600-1,000. Total replacement including labor is €500-1,200 at an independent garage or up to €1,800 at a dealer. The pre-catalytic converter must be removed first, adding to labor time. Regular oil changes with quality oil and allowing the turbo to cool down before switching off after hard driving help prevent this issue. Less common than turbo failures on the 1.6 HDi engines.

The DW10CTED4 uses Delphi piezo-electric common rail injectors that are sensitive to fuel quality. Over time, internal wear causes excessive fuel return flow (back-leakage), and contaminated fuel can clog the injector nozzles. Symptoms include rough idle, misfires, increased fuel consumption, and difficulty starting. A single reconditioned Delphi injector costs around €150-250, while a new genuine unit costs €300-400. Labor is approximately 2-3 hours per injector, with coding required afterward. If one injector fails, specialists often recommend replacing all four to maintain balanced fueling, bringing the total to €1,200-1,600 for a full set fitted. Using quality diesel fuel and replacing the fuel filter on schedule helps prevent premature wear. Issues typically appear after 120,000-180,000 km.

The RCZ's aluminium double-bubble roof relies on rubber seals that harden and shrink with age, UV exposure, and temperature cycling. Water enters through compromised seals and can accumulate in footwells or the boot. Mirror seals can also allow water ingress. Simple re-sealing with appropriate sealant costs €200-300 if the seals are in reasonable condition. Full seal replacement runs €500-800 at a specialist, as the work requires careful disassembly. Regular application of rubber conditioner and silicone grease extends seal life. Cars garaged indoors fare noticeably better than those parked outside. This affects all RCZ variants equally, not just the diesel.

The glow plugs assist cold starting and also raise exhaust temperatures during DPF regeneration. They gradually lose effectiveness and should be replaced preventively every 100,000 km. Failing glow plugs cause extended cranking in cold weather and can prevent successful DPF regeneration cycles. The four glow plugs are located at the back of the engine, making access difficult and increasing labor time. A set of four glow plugs costs €60-100 for the parts, but labor at an independent garage runs €150-300 due to the awkward positioning, with dealer labor reaching €400+. Total replacement costs €200-500 depending on the workshop.

The DW10CTED4 engine uses a timing belt for the main drive but has a small chain linking the two camshafts. This chain can stretch at around 240,000 km (150,000 miles), causing timing synchronization issues, reduced power, and potentially valve damage if it skips. This is primarily a concern for very high mileage examples. Replacement requires removal of the cylinder head cover and camshaft components, costing €600-1,500 depending on whether additional components need attention. Using quality oil and maintaining proper oil change intervals helps slow chain wear. Most RCZ owners will not reach this mileage, but it is worth knowing for high-mileage bargain purchases.
