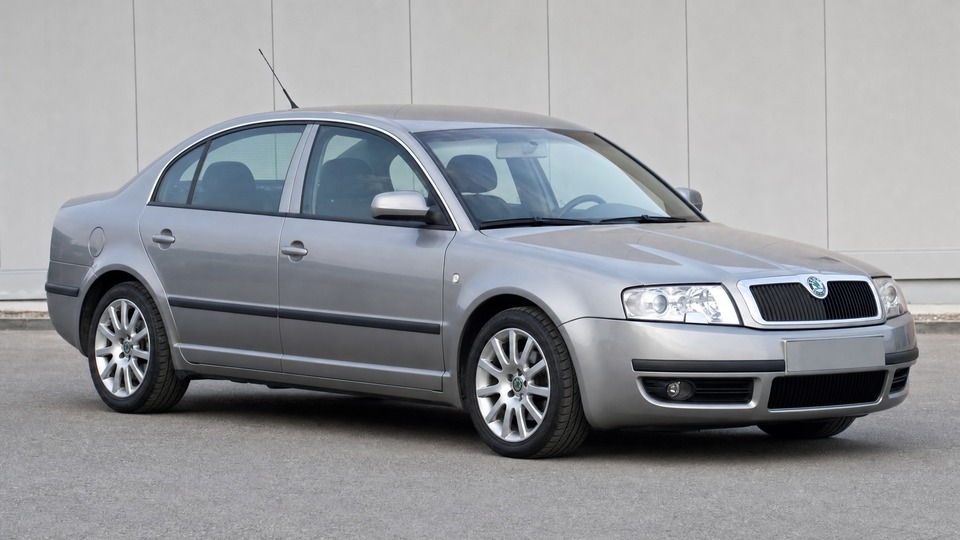

Skoda Superb 2.0 TDI Mk1

This is the single most serious issue with the 2.0 TDI PD engine in the Superb Mk1. The BSS engine uses twin Lanchester balance shafts that counter-rotate at twice crank speed. The oil pump is driven from the slave balance shaft via a 6mm hex bar. A manufacturing tolerance issue (up to 0.1mm off-centre in the drive socket) causes the hex coupling to gradually round off, eventually spinning freely without driving the oil pump. When this happens, the engine loses oil pressure instantly and suffers catastrophic bearing failure. Early production cars (2005-2006) used a chain-driven balance shaft module, while later ones switched to gear-driven. The gear-driven version is more reliable, but the hex drive to the oil pump remains the weak link. VW later introduced a longer hex shaft and improved concentricity as a running change. Specialist repair (new hardened hex shaft and reamed socket) costs around €250-800, but if the failure has already occurred and the engine is damaged, replacement runs €2,500-4,000. Preventive inspection requires dropping the sump. There is no definitive external way to tell which hex shaft version is fitted without disassembly.

The Pumpe-Duse injection system places significantly higher stress on the camshaft compared to conventional designs, because the camshaft directly actuates both the valves and the high-pressure fuel injectors. This extra loading accelerates lobe wear, particularly when incorrect oil specifications are used. The BSS engine requires VW 505.01 specification oil, and using standard long-life oil accelerates wear. Symptoms include increased ticking/tapping noise from the cylinder head, misfires, and reduced power. A new camshaft costs around €500-700 for parts, plus tappets at roughly €30 each (8 required), with total replacement including labour running €800-1,500. Using the correct 505.01 oil and shortening oil change intervals to 10,000 km significantly reduces this risk.

The BSS engine uses a wet-type DPF that relies on Eolys fluid (stored in a tank under the spare wheel) to lower the soot ignition temperature during regeneration. This system is more complex than the dry DPF used on later common rail engines. The exhaust pressure sensor (G450) was known to be defective from factory on some BSS/BGW/BWW engines, with leaking seals providing incorrect readings and preventing successful regeneration cycles. When the DPF cannot regenerate, soot builds up until the engine goes into limp mode. Professional DPF cleaning costs €300-500. Sensor replacement costs around €150-250. If the DPF needs full replacement, expect €800-1,500. Motorway drivers rarely encounter this issue, but short-trip urban driving can trigger problems within 60,000-80,000 km.

The dual mass flywheel on manual gearbox Superbs wears due to torsional vibration absorption. Symptoms include a metallic rattling from the bell housing on cold start and juddering or shuddering when pulling away. Replacement requires gearbox removal, with dealers quoting €1,200-1,600 for DMF and clutch together. Solid flywheel conversion kits are available for around €600-800 including fitting, eliminating future DMF problems but introducing slightly more vibration and noise. Urban stop-start driving accelerates wear. Typical failure occurs between 80,000-130,000 km, though some last considerably longer with gentle motorway use. The 5-speed automatic (ZF Tiptronic) variants are not affected by this issue.

The Superb Mk1 shares its front suspension design with the VW Passat B5, using a 4-arm multilink setup with 8 ball joints across both sides. Ball joints and control arm bushes wear over time, producing clunking over bumps, vague steering, and uneven tire wear. Unlike simpler MacPherson strut designs, the multilink system has many more failure points. Individual control arm replacement costs €80-150 per arm plus labour. A full front suspension refresh (all 8 arms, tie rods, and drop links) runs €800-1,200 at an independent specialist. Most cars of this age will need at least partial suspension work. Polyurethane bush upgrades are available for around €200 as a kit but require pressing.

The Garrett GT1749VA turbocharger fitted to the BSS engine uses variable-geometry vanes controlled by a vacuum actuator. Carbon buildup causes the vanes to stick, particularly on cars driven gently or only for short trips. Symptoms include sudden loss of power, limp mode, and the EPC warning light. The actuator diaphragm can also split over time. An actuator-only replacement costs €250-400, but VW does not sell this separately from the turbo in many cases. A remanufactured turbo unit runs €600-1,000, while new OEM replacements cost €1,500-2,000 fitted. Regular oil changes with VW 505.01 oil and occasional spirited driving help keep the mechanism free.

The Pumpe-Duse injectors are sealed into the cylinder head with copper crush washers and rubber O-rings. These seals harden and degrade over time, allowing diesel fuel to leak externally or into the crankcase (diluting the engine oil). Symptoms include a strong diesel smell, visible fuel leaks around the injectors, and rough running or misfires. Re-sealing all four injectors with new copper washers and O-rings costs €200-400 at an independent workshop. If an injector itself has failed internally, individual replacement runs €300-500 per injector for a remanufactured unit. This is primarily an age-related issue affecting most PD engines over 15 years old.

First-generation Superbs are known for inadequate factory undersealing, particularly around the wheel arches and sill areas. Rust bubbles appear on arch lips and inner sills, progressing from cosmetic to structural if left untreated. Rear arches tend to be affected first. Professional repair per arch runs €200-400 depending on severity. Full underseal treatment costs around €300-500. If corrosion has reached the structural sills, welding repairs can cost €500-1,000 per side. Cars from salt-heavy regions (northern Europe, Alpine areas) are most affected. Inspect carefully underneath and inside arch liners during any pre-purchase inspection.
