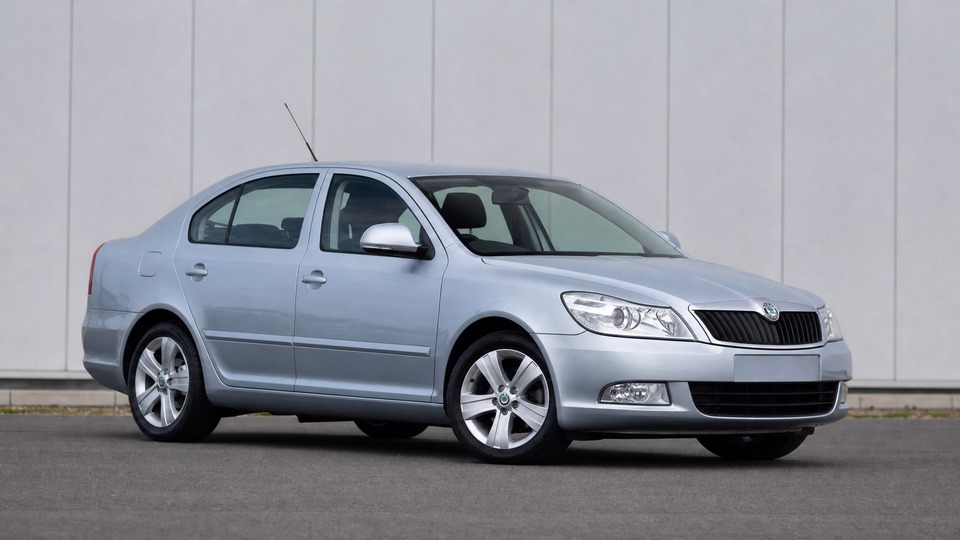

Skoda Octavia 1.6 TDI Mk2

The 1.6 TDI CAYC uses Siemens/VDO piezoelectric injectors (part number 03L130277B) that have a documented insulation defect. The internal insulation degrades over time, causing intermittent misfires, rough running, and eventually complete injector failure. This primarily affects 2009-2013 production. A single injector replacement costs around €300-400 at a specialist, but since one failure usually means the others will follow soon, replacing all four is recommended at €1,200-1,600 for parts alone. With labor, total costs reach €1,500-3,200 depending on how many need replacement and whether dealer or independent. The injectors cannot be reconditioned due to their construction. VW offered a limited warranty extension on these injectors in some markets after the Dieselgate emissions fix.

The EGR valve on the 1.6 TDI is prone to carbon buildup, especially on cars used for short trips. Symptoms include rough idling, loss of power, and engine warning lights. On the CAYC engine, the EGR valve is awkwardly positioned, making access difficult and labor-intensive. Professional cleaning costs around €150-250, but if the valve is beyond cleaning, a full replacement with labor runs €400-800. Some owners report that the Dieselgate emissions software update accelerated EGR clogging, with failures occurring within months of the fix being applied. Regular highway driving helps prevent buildup.

The DPF is particularly sensitive to driving patterns on the 1.6 TDI. Short trips where the engine never reaches full operating temperature prevent passive regeneration, leading to excessive soot buildup. When the DPF warning light appears, a forced regeneration drive (20-30 minutes at steady highway speeds in 4th gear) may resolve it. If ignored, the DPF becomes critically blocked, requiring professional chemical cleaning (€300-500) or full replacement (€800-1,200). Cars used exclusively for urban commutes are most at risk. Some owners report increased DPF issues after the Dieselgate software update due to higher soot loading rates.

The dual-mass flywheel gradually wears under the torque loading of the diesel engine. Symptoms include rattling or knocking at idle, vibration through the clutch pedal, and juddering on pull-away. Failure typically occurs between 120,000 and 200,000 km. Since removing the gearbox is required for replacement, the clutch is usually replaced at the same time. A combined DMF and clutch kit with labor costs €800-1,500 depending on parts choice and workshop. Some owners convert to a single-mass flywheel (SMF) kit, which is cheaper but produces more gear noise.

The variable-geometry turbo uses an electronic actuator that can stick due to carbon buildup or electronic failure. Symptoms include intermittent loss of boost, engine warning light, and limp mode. Gentle driving patterns with little turbo demand can accelerate the problem. Actuator-only replacement at a specialist costs €300-500, but if the turbo internals are damaged, a full turbo replacement runs €800-1,500. Occasional spirited driving on the highway helps keep the actuator free.

The intake manifold contains swirl flaps that optimize combustion at different engine speeds. These flaps can stick or their linkages can wear, causing the check engine light with fault code P2015. Carbon from the EGR system accelerates degradation. A repair kit for the swirl flap mechanism costs €100-150 fitted, avoiding the need for a full manifold replacement (€400-600). This is a relatively minor issue but occurs frequently enough to be worth checking for.

The Octavia Mk2 has a design weakness in the wiring loom that passes between the door and the B-pillar. The wire ends are at the same height, causing them to fold rather than rotate when the door opens and closes. Over time, individual wires fracture inside the conduit, causing intermittent failures in central locking, electric windows, mirror adjustment, and interior lighting. The driver's door is most commonly affected. Repair involves replacing the damaged wiring loom section, costing €150-400 depending on how many wires are affected and labor required.
