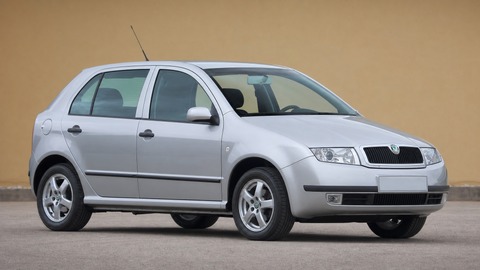

Skoda Fabia 1.4 TDI Mk1

The PD (Pumpe-Düse) injection system puts extreme pressure on the camshaft lobes that actuate the unit injectors. These lobes are narrow by design and require oil meeting VW 505.01 specification (5W-40 PD-rated). If serviced with standard 5W-30 or non-PD oil, the cam lobes can wear through, causing misfires and loss of power. Symptoms are tappet noise on cold start that does not disappear, and eventually a misfire on one cylinder. Many independent garages are unaware of this requirement and use generic diesel oil. A camshaft replacement including lifters and seals typically costs €800-2,000 depending on parts sourcing. Verify the oil specification used at every service in the history.

The single-screw clamping foot on PD injectors allows slight rocking in the bore over time, which wears semi-circular grooves into the sealing surfaces. This lets high-pressure fuel leak past the seals and dilute the engine oil. An oil level that rises between services is the main symptom. Seal kit replacement including gaskets, adjustment screws, and injector loom typically costs €300-600 at a specialist. If ignored, the diluted oil causes accelerated bearing and camshaft wear, turning a minor fix into a major engine rebuild.

The EGR valve accumulates carbon deposits, particularly on cars used for short trips where the engine rarely reaches full operating temperature. Symptoms include rough idle, hesitation on acceleration, increased exhaust smoke, and eventual limp mode. Cleaning is possible if caught early (€80-150 at a specialist), but a clogged valve usually needs replacement. A new EGR valve costs €120-200 for an aftermarket part, with approximately 1-2 hours of labour. Total replacement cost is typically €200-500 depending on parts quality and labour rates.

The five-speed manual gearbox (type 085 or 02T) used in the Fabia Mk1 is known to develop synchromesh wear at higher mileages (typically above 150,000 km). Second gear is usually the first to crunch on downshifts, followed by fifth. Bearing noise in neutral (a whining that disappears when the clutch is pressed) indicates bearing wear. A gearbox rebuild at a specialist typically costs €700-1,200. Replacement with a used unit costs €400-700 including fitting. Using the correct gearbox oil (75W-90 GL-4) and avoiding aggressive cold-shift habits extends the lifespan.

The small KKK/BorgWarner turbo on the 1.4 TDI is generally reliable, but can fail if oil changes are neglected (causing bearing oil starvation) or if the wastegate actuator seizes from corrosion and carbon buildup. Symptoms include excessive exhaust smoke, loss of boost, and whining noises. A reconditioned turbo costs €400-600 fitted at an independent specialist. A new OEM unit is €800-1,200 installed. Letting the engine idle for 30 seconds before switching off after a hard run helps preserve turbo bearings.

The tandem pump provides both fuel supply and vacuum for the brake servo. The internal diaphragm can fail, allowing diesel to contaminate engine oil (causing oil level rise) or leak externally. This was also covered by a Skoda recall for certain production batches where the pump housing bolts could fracture. A new tandem pump seal costs approximately €30-50 for parts, but if the pump body is damaged, full replacement runs €200-500. Always verify the recall status on affected cars.

Corrosion is the biggest age-related concern on the Fabia Mk1. The sills (especially behind the front wheels and ahead of the rear wheels), inner wheel arches, rear beam mounting points, and spare wheel well are all prone to rust. Cars from Central/Eastern Europe or coastal climates are most affected. A professional sill repair costs €300-600 per side. If structural rust has progressed to the rear beam mounts or subframe, the repair becomes uneconomical. Tap suspect areas with a coin: a dull thud rather than a metallic ring indicates corrosion beneath the surface.
