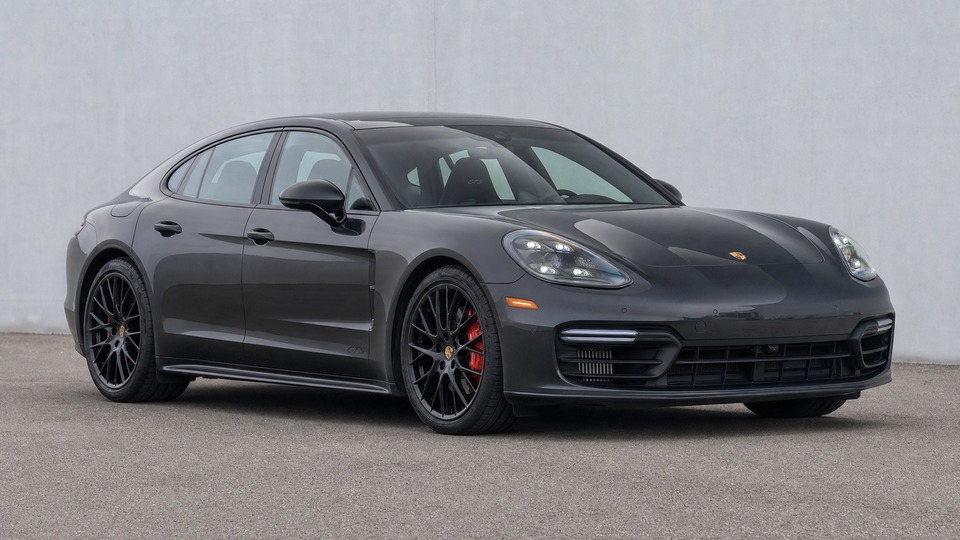

Porsche Panamera GTS 971

The EA825 4.0L V8 has its switchable water pump located in the hot-vee between the cylinder banks. When the pump seal fails, coolant leaks internally into the shared vacuum system that controls the turbocharger wastegates via the N649 changeover valve. This causes underboost (P0299 code) and limp mode. A straightforward water pump replacement at an independent specialist costs approximately 2,000-3,000. However, if coolant has contaminated the vacuum lines, changeover valves, and turbo actuator solenoids, repairs escalate to 5,000-7,000. Porsche dealers often recommend full engine removal for access, inflating quotes further. This issue is documented across all EA825 applications (Cayenne, Urus, RS6/RS7, Bentayga). Audi issued TSB 2074303/7 for the same defect. Most failures occur between 50,000 and 90,000 km. Always check for sweet coolant smell in the engine bay, verify coolant level, and request a vacuum line inspection before purchase.

The Panamera GTS comes standard with adaptive air suspension (PASM). Individual air struts develop leaks at the rubber bladder or O-ring seal, causing one corner to sag overnight. The compressor runs increasingly to compensate and eventually fails. OEM struts cost approximately 800-1,200 per corner. Compressor replacement costs 650-1,200 for the part plus labor. A full set of four struts at a Porsche dealer can exceed 5,000. Aftermarket options from Arnott or Bilstein cost roughly 40-50% of OEM. Most failures occur between 80,000 and 120,000 km. Cars equipped with PDCC (Porsche Dynamic Chassis Control) have additional hydraulic anti-roll system components that add further repair complexity and cost (2,000-5,000 for pump or actuator replacement). If one corner has been replaced, budget for the opposite side within 20,000-30,000 km.

The active rear spoiler uses electric actuator motors that can seize due to water ingress through degraded seals, or from mechanical wear. Symptoms include a 'Spoiler Failure' warning on the dashboard, lopsided spoiler deployment, or failure to retract. Porsche does not sell individual serviceable parts for the spoiler mechanism. The complete assembly costs 2,000-3,000 at a dealer. Aftermarket motor replacements are available for 150-300 per unit, bringing total repair cost to 800-1,500 at a specialist. After replacement, calibration via PIWIS diagnostic tool is mandatory. This issue affects around 20-25% of Panamera models beyond 80,000 km based on forum reports.

The PCM system in the 971 Panamera has been prone to software-related issues including screen freezes, unexpected reboots, and complete reboot loops. Some cases were triggered by over-the-air or dealer-installed software updates. A software reflash at a dealer costs 200-400. If the PCM internal storage is damaged, module replacement costs 1,500-2,500 including programming. Most cases are resolved with software updates and do not recur. Early 2017-2018 models were most affected. The 2019+ GTS models benefited from several software revisions and show fewer reports, though the issue has not been entirely eliminated.

The electrically operated tailgate can fail in several ways: the lock actuator motor dies (clicking noise when attempting to open), the rear electronics control module fails due to water ingress from blocked roof drains, or the gas struts lose pressure preventing proper closing. The rear electronics module costs approximately 200-300 for the part. Lock actuators cost 100-150. If blocked drainage channels have caused water damage to multiple components, repair costs can reach 1,000-1,500. Regular clearing of roof drain channels during annual service helps prevent this. Sport Turismo models are slightly more susceptible due to the larger rear opening.

The 971 V8 uses coolant pipe connectors that are glued into aluminum housings. Over time and temperature cycling, the glue seal fails and coolant weeps out, typically at the front or rear of the engine near the transmission joint. If caught early, the repair is relatively straightforward: updated connectors with screw-in inserts replace the glued ones, costing 500-1,200 at a specialist. However, Porsche may recommend engine and transmission separation for rear leaks, pushing dealer costs to 1,500-2,000. If left unattended, coolant loss can cause hot spots and potentially cracked cylinder liners. Always check coolant level and inspect for residue around coolant connections.

Some AWD Panamera models develop drivetrain vibration under acceleration caused by internal wear in the transfer case. Symptoms include a juddering sensation during acceleration, particularly at low speeds with full steering lock. A software update can sometimes reduce the symptoms for approximately 200-500. If internal gears are worn, full transfer case replacement costs 2,500-3,500. This issue was more prevalent on earlier Cayenne and Macan models and appears less common on the 971 Panamera, but it has been documented. The problem is less likely on cars that have had their AWD controller oil changed at proper intervals.
