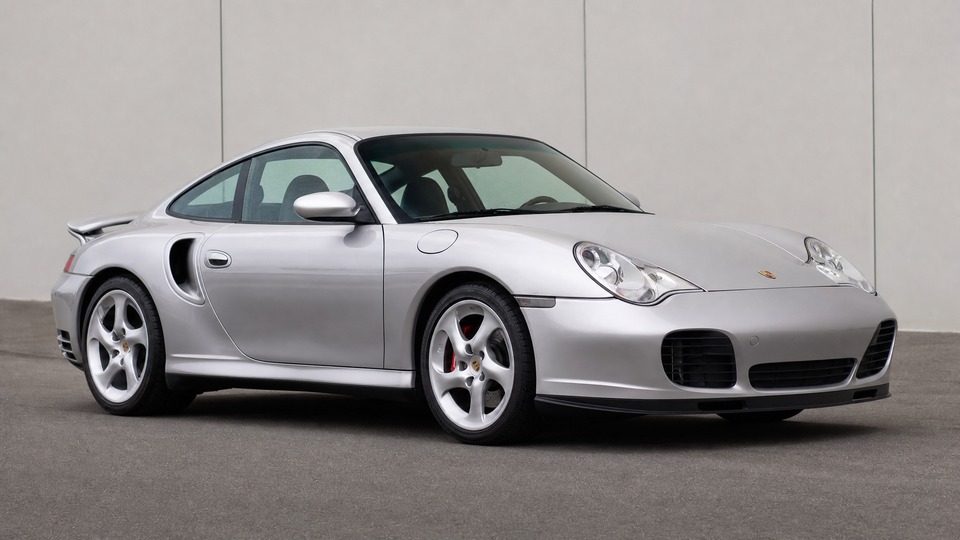

Porsche 911 996 Turbo

The Mezger engine uses aluminium coolant pipes bonded into the crankcase with an adhesive that degrades over 15-20 years of heat cycling. When the epoxy lets go the pipe pops out under pressure, dumping coolant in seconds. Specialists including BBI Autosport, Lang Racing and Shark Werks consider this almost inevitable on untouched cars and many owners pre-emptively have the pipes pinned or TIG-welded in place. The fix itself is straightforward but requires engine removal, which drives the cost: specialists quote €3,500-4,500 for pinning and around €5,000+ for a full welded kit. In-situ pinning services exist but are less common in Europe. Ask for documented evidence the pipes have already been pinned — it is the single most important service item on a 996 Turbo.

The 996 Turbo uses a 240mm hydraulically-assisted clutch and a dual-mass flywheel. The DMF typically shows wear by 80,000-120,000 km, with symptoms including a rattle at idle that disappears when the clutch is pressed, clutch judder from rest and gear selection issues. Porsche specialists strongly recommend replacing the flywheel at the same time as the clutch because the transmission is already out — doing it separately doubles the labour cost. Parts run around €1,200-1,800 for OEM clutch and DMF, plus 15-25 hours of labour at €120-180/hour, putting a typical job at €2,500-4,000 at a specialist. Porsche dealer prices can push well above €4,500.

The K16 turbos themselves are robust, but the wastegate actuators and boost-control components fail with age. Common symptoms include boost errors, uneven boost between the two turbos, limp mode and rough running under load. The three one-way check valves in the boost control circuit are a known weak point and fail relatively often — replacement is cheap (€100-200) but diagnosis requires a specialist. Full turbo actuator replacement is typically €1,500-2,500; if the turbos themselves need rebuilding (rare) costs rise to €3,500-4,500+. Heat-shield corrosion is also normal and most cars will need shields replaced every few years at €200-400.

The 996 Turbo's AWD system is generally reliable but the front and rear wheel bearings are a known wear item, with failures often appearing between 100,000-150,000 km. Symptoms include grinding noise that changes with cornering and a loose or wandering steering feel. Wheel bearing replacement runs €400-700 per corner at a specialist. The rear differential bushings and front driveshafts can also show play after 150,000+ km. Budget €800-1,500 for preventive suspension bushing renewal, and up to €2,500 if driveshafts and multiple bearings are replaced together.

The AOS diaphragm degrades over time and is well-known on all M96/M97-based engines including the Mezger Turbo. Symptoms include heavy blue-white smoke on cold start that clears after a few seconds, oil consumption, and oil misting in the intake tract. A failing AOS can also starve the engine of oil under hard cornering. Part cost is approximately €250-400; labour is relatively straightforward on the Turbo (access is better than on the Carrera), so total at a specialist runs €600-900. If ignored long enough the oil-soaked MAF and plugs add another €300-600.

The 996 Turbo uses the Mercedes-Benz 722.6 five-speed automatic marketed as Tiptronic S. It is fundamentally reliable but Porsche famously labelled the fluid as 'lifetime fill', which is not true in practice. Specialists recommend a full fluid and filter service every 80,000-100,000 km (€500-800). If neglected, symptoms progress from harsh shifting to slipping; valve body overhaul runs €1,500-2,500 and a full rebuild can reach €3,500+. On a neglected high-mileage car be cautious: changing the fluid on a transmission that has never been serviced can sometimes unmask existing wear.

Porsche used a specific foam behind the dashboard, inside HVAC ducting and in the door panels on 996-era cars. Over 20 years it breaks down into dust that travels through the ventilation system and causes rattles. Proper remediation requires dashboard removal and costs €1,500-3,000 at a specialist. Most cars will show this to some degree by now. Sticky soft-touch plastics on switches and trim pieces are also common across the 996 range and individual button replacement runs €50-150 per piece.

After 20+ years and 100,000+ km the front lower control arm bushings and ball joints are almost certainly worn on any unrestored 996 Turbo. Symptoms include vague steering, clunks over bumps and uneven tire wear. A full front suspension refresh (control arms, drop links, thrust arms, tie rod ends) is typically €1,200-2,000 in parts plus 6-10 hours of labour. Many owners upgrade to stiffer rubber or polyurethane bushings at the same time. Rear trailing arm bushings are also wear items and add €400-600 if done together.
