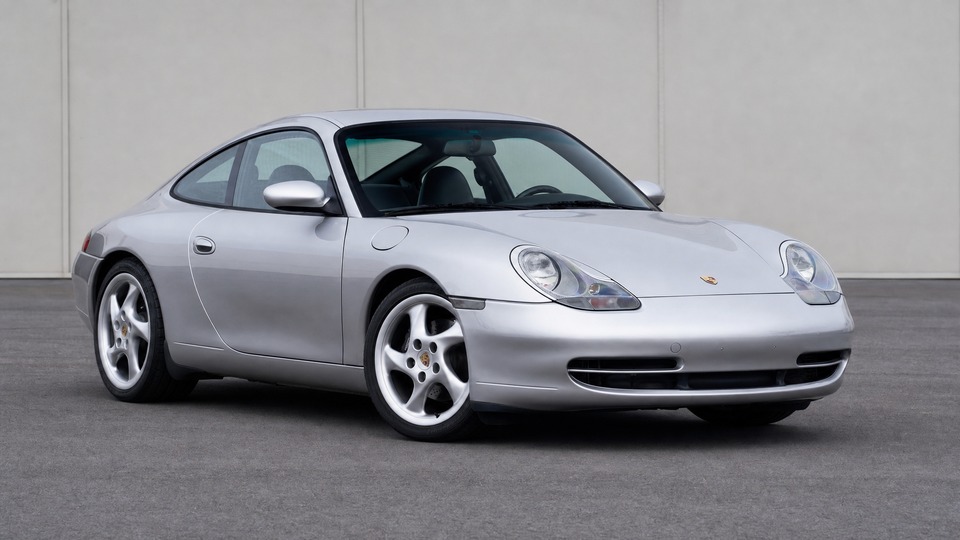

Porsche 911 Carrera 4 996

The IMS bearing supports the intermediate shaft that drives the camshafts from the crankshaft. In 1998-1999 Carrera 4 models, a dual-row bearing was used with a roughly 1% failure rate. From 2000 onwards, Porsche switched to a single-row bearing with failure rates estimated at 8-10% over the vehicle's lifetime, based on data from the Eisen class-action lawsuit. There is no predictable mileage pattern — failures have occurred from 20,000 km to well over 200,000 km. When the bearing fails, metal debris circulates through the engine, blocking oil passages and causing catastrophic internal damage. Preventive IMS bearing upgrade with an LN Engineering or similar kit costs €1,500-2,500 including parts and 10-14 hours of labor. If the bearing fails before replacement, expect €8,000-15,000 for an engine rebuild at a specialist like Hartech (UK) or equivalent European shops. Cars that are driven regularly with quality 5W-40 oil changed annually tend to have fewer failures. Always verify whether the IMS bearing has been upgraded before purchase — this is the single most important check on any 996.

The M96 engine's open-deck crankcase design allows cylinders to distort under thermal and mechanical stress. Cylinder 6 is most susceptible because the piston thrust side runs hotter on the right bank. The 3.4-litre engine (996.1) has thinner cylinder walls than the 3.6, making it slightly more vulnerable to d-chunk failures where a D-shaped piece of the cylinder wall breaks off. Estimated to affect around 5% of M96 engines overall. Symptoms include a rhythmic metallic ticking at cold idle, increasing oil consumption, and sooty exhaust on one side. A bore scope inspection before purchase is essential — any qualified Porsche specialist can perform this for €100-200. If scoring is found, repair requires machining and installing Nickies billet aluminum sleeves with new pistons, costing €5,000-6,000 for the cylinder work alone. With engine removal, full rebuild, and reinstallation, expect €10,000-15,000 total. Prevention includes annual oil changes, avoiding extended oil change intervals, and ensuring the cooling system is in good condition.

The rear main seal sits where the crankshaft exits the engine block toward the clutch and transmission. Porsche redesigned this seal multiple times but never fully resolved the issue. When it fails, oil leaks onto the flywheel, clutch disc, and gearbox bellhousing. In severe cases, the clutch friction material becomes contaminated and needs replacing. The seal itself costs under €50, but the gearbox must be removed for access, making it labor-intensive at 6-8 hours. Most specialists recommend combining RMS replacement with clutch replacement and IMS bearing upgrade since the transmission is already out. Standalone RMS replacement costs €1,200-1,800. Combined with clutch and IMS bearing, the total runs €2,500-4,000 but covers three major service items at once. A mild oil seep is tolerable, but active dripping warrants attention.

The air-oil separator recirculates crankcase blow-by gases back into the intake. Over time, the internal diaphragm degrades and ruptures, allowing liquid oil to be drawn into the intake manifold. Mild failure causes a hunting idle that fluctuates slightly. As failure progresses, the engine produces blue or white smoke from the exhaust, sometimes dramatically so. The part costs approximately €100-150, but access is poor, requiring 3-4 hours of labor. Total replacement cost is €400-800 at a specialist. Always use genuine Porsche replacements — aftermarket units have shorter lifespans. AOS failure can also lean out the fuel mixture on one bank, potentially contributing to bore scoring if left unaddressed.

The Carrera 4's front differential uses side bearings, pinion shaft bearings, and a viscous coupling that are subjected to considerable stress. Over time, the bearings wear and produce an audible whining noise, particularly at higher speeds. In some cases, bearing cages have failed at relatively modest mileage around 100,000 km. A bearing and seal rebuild costs €1,500-2,500 at a specialist. If gear damage has occurred or the viscous coupling needs replacement, a complete front differential overhaul can reach €3,000-4,500. The viscous coupling is a sealed unit that cannot be serviced — when it fails (typically locking solid or losing torque transfer capacity), it must be replaced at around €1,200-1,500 including labor. Regular front differential oil changes (often overlooked) help extend bearing life.

The plastic coolant expansion tank becomes brittle with age and thermal cycling. After 8-10 years, hairline cracks develop that may only leak under pressure, making diagnosis difficult. Symptoms include small coolant puddles, a slowly dropping coolant level, or a sweet smell from the engine bay. Porsche's labor estimate is 5.5 hours including coolant filling and bleeding. Parts cost approximately €100-200, with total repair running €400-900. If the leak goes unnoticed, overheating can cause head gasket failure or accelerate bore scoring. On a 996 of this age, preventive replacement is recommended if the original tank is still fitted.

The M96 water pump uses a plastic impeller that weakens from repeated thermal cycling. When blades break off, fragments circulate through the cooling system and can block passages in the cylinder heads, creating localized hot spots that accelerate bore scoring. Symptoms include gradually rising coolant temperatures, especially in traffic, and reduced cabin heating output. Replacement with an updated metal-impeller pump is recommended every 60,000-80,000 km. Parts cost €100-200 and labor is 2.5-3.5 hours, totaling €500-1,000 at a specialist.

With most 996 Carrera 4s now over 20 years old, exhaust system corrosion is increasingly common. The main exhaust header pipes leading to the catalytic converters develop cracks at stress points, causing exhaust leaks that trigger check engine lights. Catalytic converter replacement is the most expensive component at €1,500-2,500 per side for OEM units, though aftermarket alternatives are available for €600-1,200. Ignition coil failure (common every 60,000-80,000 km) can cook the catalytic converters by sending unburned fuel into the exhaust. Individual section repairs cost €800-1,500, while a complete exhaust system overhaul runs €2,000-3,000.
