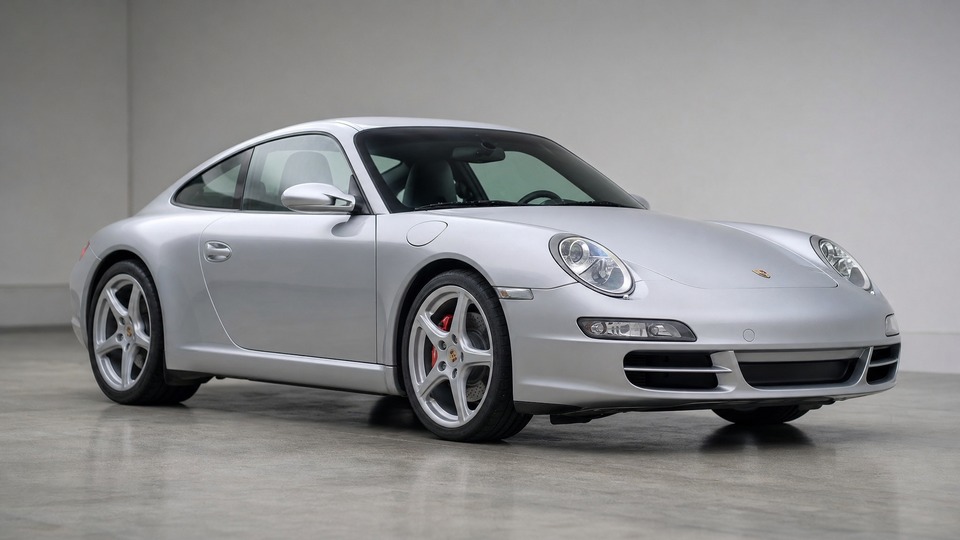

Porsche 911 Carrera 4 997

The 997.1 Carrera 4 (2005-2008) uses the M96.05 engine with a larger non-serviceable IMS bearing. Failure rates are estimated at 1-3% over the engine's lifetime, substantially lower than the 8-10% rate seen on the earlier 996. When the bearing does fail, metal debris circulates through the engine and causes catastrophic internal damage. Preventive IMS bearing upgrade (LN Engineering Retrofit or IMS Solution) costs €2,000-3,000 including gearbox removal. If the bearing fails before replacement, expect €8,000-12,000 for an engine rebuild. The 997.2 (2009-2012) uses the MA1 DFI engine which has no intermediate shaft at all, making this issue irrelevant for later cars.

Bore scoring occurs when the Lokasil cylinder lining is damaged by thermal distortion, allowing pistons to contact bare aluminium. The 3.6-litre M96.05 in the standard Carrera 4 is significantly less susceptible than the 3.8 in the Carrera 4S, with specialist estimates suggesting under 5% of 3.6 engines are affected. Cylinder 6 runs hottest and is most vulnerable. Symptoms include rhythmic metallic ticking at cold idle and increasing oil consumption. A bore scope inspection before purchase (€100-200 at any Porsche specialist) is essential. If scoring is found, repair requires machining and installing billet aluminium sleeves with forged pistons, costing €5,000-6,000 for cylinder work alone, or €10,000-12,000 including full engine removal and rebuild. The 997.2 DFI engine has a closed-deck block design that largely eliminates this issue.

The 997's front-mounted radiators connect to the rear engine via long coolant pipes running under the car. The aluminium crossover pipes corrode internally over time and the rubber connecting hoses perish. A sweet coolant smell near the front of the car is the typical first sign. This is one of the most common 997 issues across all model years. The repair involves replacing the crossover pipe, rubber hoses, and clamps. On AWD Carrera 4 models the front axle carrier and front differential complicate access compared to the RWD car. Parts cost €200-400 but labour is significant. Total repair at a specialist runs €800-1,500. If a coolant leak goes unnoticed, overheating can cause serious engine damage.

The rear main seal (RMS) is a persistent weak point on M96 and M97 engines. When it fails, oil drips onto the flywheel and clutch, potentially contaminating clutch material and requiring clutch replacement as well. The seal itself costs under €50, but the gearbox must be removed for access, requiring 6-8 hours of labour. Most specialists recommend combining RMS replacement with clutch, IMS bearing upgrade, and AOS replacement since the gearbox is already out. Standalone RMS repair costs €1,200-1,800. Combined with clutch replacement, expect €2,000-3,500 total. RMS leaks affect an estimated 15-20% of 997 cars over their lifetime, with manual transmission cars statistically more often reported.

The AOS recirculates crankcase gases back into the intake manifold. When its internal diaphragm degrades, liquid oil passes into the intake, causing lean running conditions that can contribute to bore scoring. Symptoms are often subtle: slightly irregular idle, occasional misfire codes, and marginal fuel trim drift. Heavy smoking from the exhaust is less common on 997s than on 996s. The part costs €100-150, but labour is 3-4 hours due to difficult access behind the intake manifold on the driver's side. Total replacement at a specialist runs €400-800. Porsche specialists recommend genuine Porsche AOS units, as aftermarket replacements have higher failure rates.

A well-known 997 issue where coil springs crack at their lower end where water collects and corrodes the metal. Owners sometimes hear a loud crack while the car is parked, or a sharp metallic noise while driving. Broken spring fragments can damage tyres. Front springs are more commonly affected than rears. Springs should be replaced in pairs per axle. Parts cost approximately €150-250 per pair, with 2 hours of labour for fitting. Total replacement including alignment runs €400-800 per axle. Cars driven in wet or salty conditions and those with PASM adaptive suspension are more susceptible due to increased spring stress.

Cars optioned with PASM (Porsche Active Suspension Management) use electronically adjustable dampers that can fail mechanically through hydraulic fluid leaks or electronically through internal solenoid issues. A 'PASM Fault' warning on the dashboard with the car defaulting to firm mode is the typical symptom. Replacement struts must be fitted in pairs per axle. OEM PASM struts cost approximately €600-800 each, with 3-4 hours labour per axle plus alignment. Total per-axle replacement at a specialist runs €1,400-2,200. Aftermarket non-PASM coilover conversions are common but remove the adaptive function. Pre-2008 PASM units have a slightly higher reported failure rate than later units.

The Carrera 4 uses a viscous-clutch all-wheel-drive system that sends 5-40% of torque to the front wheels through a propshaft, transfer case, and front differential. The viscous coupling and differential are robust but require periodic fluid changes (every 60,000-80,000 km) that owners often skip. Neglected units can develop noise or front-axle binding. A fluid service at a specialist runs €300-400. If the viscous coupling fails or front differential develops bearing wear, replacement runs €800-1,200. Front driveshaft CV boots also tend to split with age, allowing grease loss and eventual joint failure. Replacement boots cost €250-400 per side.

Early 997.1 models (primarily 2005-2006) have a known issue with a poor factory crimp on the battery/starter/alternator cable. The connection develops resistance over time, reducing both alternator charging output and starter motor cranking speed. Symptoms worsen with heat, sometimes causing complete failure to start when the engine is hot. Porsche issued a Technical Service Bulletin for this. The updated cable costs approximately €80-100. A dealer installation runs around €500-600 total, while an independent specialist charges €300-400. The repair requires removing the alternator and routing the new cable from the top of the engine to the side of the transmission.
