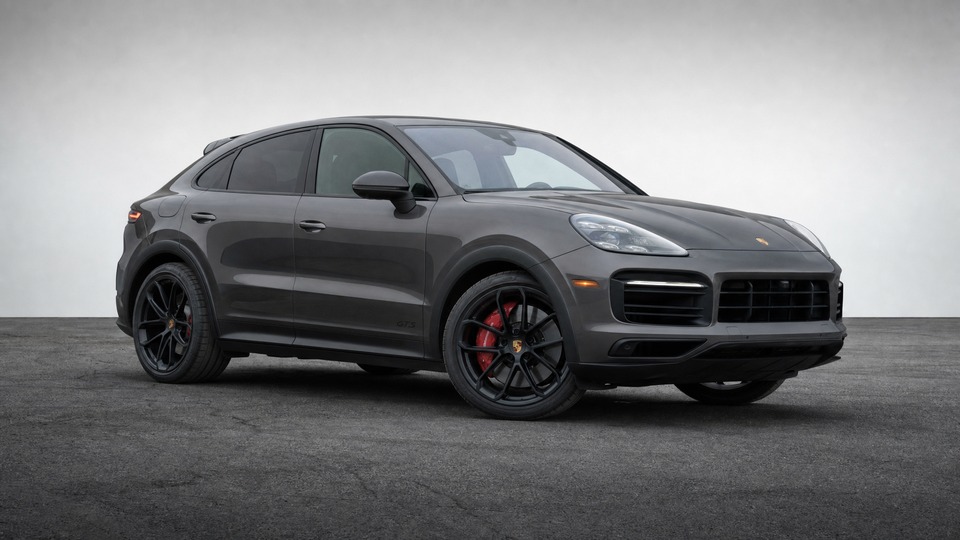

Porsche Cayenne Coupe GTS 9YA

The EA825 4.0 V8 uses a vacuum-actuated switchable water pump located in the hot-V between the turbochargers. The internal seal degrades due to heat cycling, allowing coolant to leak into the vacuum lines. This contaminates the entire vacuum system: wastegate actuators, switchover valves, vacuum pump, and brake booster lines. The pump itself is inexpensive, but because coolant migrates through the connected systems, a full repair requires replacing the pump, thermostat, coolant changeover valve (N649), all vacuum lines, and potentially the wastegate actuators. Dealer invoices of €7,000-9,000 are documented; independent specialists typically charge €4,500-6,000. This is a shared VW Group issue affecting the Cayenne, Panamera, Lamborghini Urus, Audi RS6/RS7, and Bentley Bentayga. Typical failure mileage is 40,000-110,000 km. Symptoms include P0299 underboost code, reduced power, and check engine light. No revised seal design has been confirmed by Porsche as of early 2026.

The GTS comes with adaptive air suspension as standard. Air struts on the 9YA are more robust than the 958 generation but still develop leaks over time, particularly at the crimp seals. Symptoms include the car sitting lower on one corner after being parked overnight, or the compressor running excessively at startup. A single strut replacement costs approximately €1,200-1,800 including labor. If the compressor has been overworked due to a slow leak, it may also need replacement (€1,500-2,000). In worst cases where multiple struts fail in sequence, total repair can reach €4,500-5,500. Failure tends to appear after 80,000-120,000 km or 5-7 years of age.

The plastic breather hoses in the crankcase ventilation system become brittle due to continuous heat and oil exposure. When the diaphragm in the crankcase vent tube cracks (either bank 1 or bank 2), it disrupts the engine's pressure balance. Symptoms include increased oil consumption, white smoke on startup, fouled spark plugs, and in severe cases, damage to catalytic converters. A Porsche TSB exists calling for breather line replacement as a first step (€500-800 at an independent). If the air-oil separator units themselves have failed, the repair escalates to €2,000-3,500. Documented on the 4.0 V8 typically between 50,000-90,000 km. One documented case on a 2021 GTS at 93,000 km cost approximately €2,300.

The GTS uses Porsche Torque Vectoring Plus (PTV+), which has an electronically controlled limited-slip differential with clutch packs. The clutch plates gradually wear, producing a grinding or humming noise most noticeable at parking speeds when turning. Porsche has released software updates to minimize the noise, suggesting awareness of the issue, but the noise tends to return as clutch plates wear further. Differential fluid changes with the correct 75W-90 LS specification fluid every 30,000 km can delay progression. Full differential replacement costs €2,500-4,500 at an independent specialist. More common on cars driven frequently in urban environments with many low-speed maneuvers.

Early 9YA models (2019-2021) were fitted with a LiFePO4 lithium battery that has proven problematic. The Battery Management System can overcharge individual cells, causing premature failure. Symptoms include the car failing to start or going completely flat within a few days of parking. A Porsche dealer replacement costs €2,500-3,500. Specialized repair services that rebuild the BMS module charge approximately €800-1,500. Later production (late 2021 onward) switched back to a conventional AGM battery, eliminating this specific concern. If buying a 2020-2021 car, verify whether the battery has already been replaced.

Some GTS Coupe models were optioned with Porsche Surface Coated Brakes (PSCB), identifiable by white calipers. The tungsten carbide coating is only 0.1 mm thick and can develop micro-crack lines and chipping, particularly after 50,000-80,000 km of mixed driving. Once the coating is compromised, the disc needs replacement. A full set of PSCB rotors and pads costs approximately €5,000-6,000. Porsche has discontinued PSCB on newer models, which suggests awareness of limitations. Many owners replace worn PSCB with standard cast-iron rotors and pads (€1,500-2,000 total) rather than paying for new PSCB discs. Persistent squealing at low speed with no known permanent fix is also a documented complaint with these brakes.
