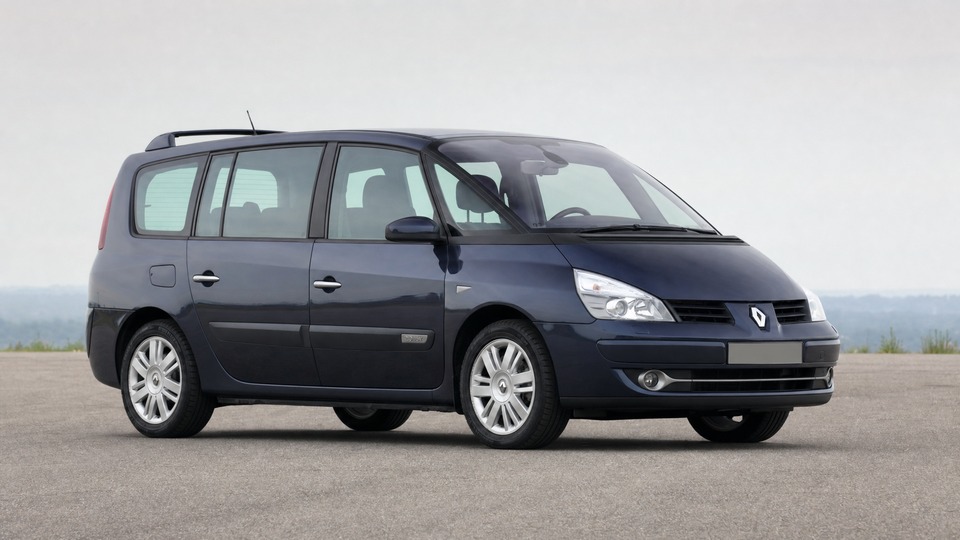

Renault Espace 2.0 dCi Mk4

The M9R engine integrates the EGR valve with the throttle body, and carbon buildup is a common issue especially with urban or short-trip driving. Symptoms include rough idle, difficulty starting, power loss, and the EPC warning light. Cleaning can work as a temporary fix (€150-250), but replacement of the throttle body and EGR assembly is often needed (€500-800 at an independent garage). The problem tends to appear between 80,000 and 120,000 km. Regular highway driving helps keep the system cleaner. Many owners report this as the single most common issue with the M9R engine.

The Garrett turbocharger is fundamentally reliable, but the variable geometry actuator is prone to sticking from soot buildup, particularly on cars that see mostly gentle or urban driving. Symptoms include loss of boost, limp mode, and error codes related to turbo boost pressure. An actuator-only repair at a specialist costs around €400-600, but if the turbo internals are damaged, a remanufactured unit runs €700-1,200 including labor. A new OEM Garrett turbo with installation can reach €2,000-2,500 at a Renault dealer. The turbo itself typically lasts to around 200,000 km with regular oil changes.

The UCH (Unite de Communication Habitacle) is the central body control module that manages central locking, interior and exterior lighting, electric windows, wipers, and the immobilizer. Failures can manifest as erratic lighting, inability to lock or unlock, windows not working, or the car refusing to start. The UCH cannot be simply swapped as it is coded to the vehicle. Specialist cloning services cost around €150-200, but finding a compatible replacement unit and having it cloned typically totals €300-600. In complex cases where the module has internal damage requiring board-level repair, costs can reach €800-1,000. The Espace IV has two UCH variants (red and white), and parts are not interchangeable between them.

The DPF system on the 2.0 dCi requires sustained highway driving to reach the 550-650 degrees Celsius needed for regeneration. Cars used predominantly for short urban trips can experience DPF clogging as early as 30,000 km. A forced regeneration via diagnostic tools costs €100-200 and may resolve the issue. Professional DPF cleaning costs €300-500. If the filter is beyond cleaning, replacement ranges from €800 to €1,500 depending on whether aftermarket or OEM parts are used. DPF longevity on well-driven cars is typically 140,000 to 190,000 km.

The Espace IV's digital instrument cluster is a well-documented weak point. The unit can develop flickering displays, random beeping, complete power failure, or erratic gauge readings. In some cases, the odometer may display incorrect readings. The issue is caused by internal component degradation within the cluster. Specialist repair services can refurbish the cluster for €200-300 and offer lifetime or long-term warranties. A new replacement from Renault is considerably more expensive (€500+) and requires reprogramming to the vehicle.

The Espace IV uses an electronically operated parking brake with motor-driven cables. These cables can snap over time, causing the parking brake to either not engage, not release, or cause the brakes to bind. Renault dealers typically advise that the entire mechanism must be replaced, not just the cable, which pushes costs to €600-800 including labor. Some independent specialists can replace the cables alone for €400-500. Symptoms include a parking brake warning on the dashboard, grinding sounds when the brake is applied, or the car rolling when parked on a slope.

The M9R's timing chain is rated as a lifetime component by Renault, but in practice the chain stretches over time, particularly beyond 180,000 km. Warning signs include a rattling noise on cold start that settles after a few seconds, indicating the tensioner is losing pressure overnight. Replacement of the chain, guides, tensioner, and sprockets costs €800-1,500 at an independent specialist. If the chain jumps or breaks, the resulting valve and piston contact can cause engine damage costing €3,000 or more. Regular oil changes with the correct 5W-30 specification help extend chain life.

The crankcase ventilation valve on the M9R can become clogged with oil residue, especially with extended oil change intervals. When blocked, blow-by gases build pressure inside the crankcase, preventing proper oil circulation. Early symptoms include oil leaks from gaskets and seals, blue exhaust smoke, and high oil consumption. The valve itself costs €50-100 and replacement labor is straightforward (€150-250 total). However, if the condition is ignored, the sustained high crankcase pressure can damage connecting rod bearings, leading to repair costs of €2,000-2,500 or more.
