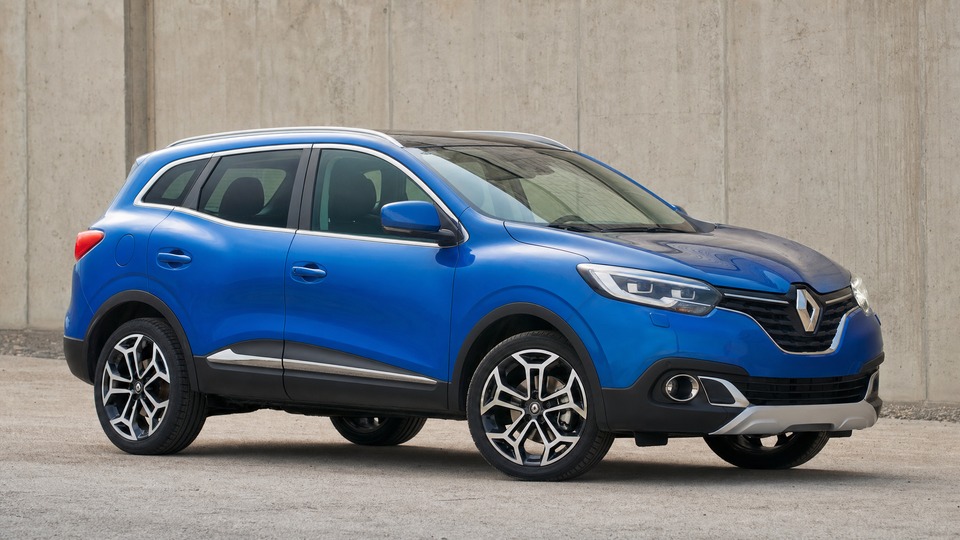

Renault Kadjar 1.6 dCi

The R9M 1.6 dCi uses a variable geometry turbocharger that has documented reliability issues. The turbo vanes can stick from carbon buildup, especially on cars driven gently or only on short trips. When the vanes stick, the engine loses power, enters limp mode, and the check engine light illuminates. If caught early, cleaning or actuator replacement costs €250-600. However, prolonged operation with stuck vanes or oil feed line blockage can destroy the turbo bearings. Documented owner cases on Honest John forums show Kadjar turbo failures as early as 28,000 miles (45,000 km), with Renault dealer repair bills of €3,500-4,500. Independent specialists charge €1,200-2,000 for a reconditioned unit fitted. The R9M turbo is notably less reliable than the K9K 1.5 dCi turbo. Using correct oil grade (5W-30 low SAPS), timely oil changes, and letting the engine idle briefly after hard driving all help extend turbo life.

The DPF requires sustained motorway driving at above 2,500 rpm for 20-30 minutes to reach regeneration temperatures (600-800 degrees). Cars used primarily for short urban trips accumulate soot that the filter cannot burn off. Symptoms include DPF warning light, reduced power, and limp mode. Using non-Renault-spec oil accelerates the problem, as conventional oil leaves non-combustible ash in the filter. Professional DPF cleaning costs €200-400, while full replacement runs €1,000-2,000 depending on whether new or refurbished. The R9M is slightly more affected than the K9K 1.5 because the 1.6 produces more soot under load. Prevention: a 30-minute motorway drive every 2-3 weeks and using only RN0720-spec low-SAPS oil.

The exhaust gas recirculation valve on the R9M engine accumulates carbon deposits over time, especially on cars driven mostly in stop-and-go traffic. The EGR cooler chills exhaust gases before recirculation, creating condensation that mixes with soot to form corrosive buildup. This clogs cooler passages and causes the valve to stick. Internal cooler cracks can leak coolant into the exhaust system, potentially damaging the DPF and turbocharger in a cascading failure. The valve typically needs attention between 60,000-100,000 km on short-trip cars, while motorway-driven examples can go significantly longer. Cleaning costs around €150-250, while full replacement runs €300-600 including labor.

The R9M engine uses a timing chain designed to last the engine's lifetime (officially 200,000+ km). However, owner reports on Qashqai and Renault forums document premature stretch at 140,000-150,000 km. The chain drives a hollow-pipe camshaft (a cost-reduced design where lobes are pressed onto a thin tube). When the chain stretches enough to skip a tooth, piston-to-valve contact occurs, resulting in catastrophic engine damage. Symptoms of chain wear include a metallic rattling noise on cold start and rough running. Replacement on the R9M requires significant labor (often engine removal) and costs €1,000-2,500 depending on the specialist. Given the Kadjar 1.6 dCi was only produced until 2018 and most examples are now approaching higher mileages, this is worth monitoring carefully.

The R9M engine uses common rail injectors that are sensitive to fuel quality. The copper washer seals between the injectors and the cylinder head can deteriorate over time, causing diesel to leak around the injector wells. This produces a diesel smell in the engine bay and, if left unaddressed, can contaminate the engine oil. Seal replacement is straightforward (€20-50 in parts, 1-2 hours labor). Full injector failure is less common and costs €300-600 per injector. High-pressure fuel pump degradation can also occur after 130,000 km. If the pump disintegrates internally, metal filings contaminate the entire fuel system, potentially requiring injector rail and injector replacement at €1,500-3,000. Using quality diesel and changing the fuel filter regularly helps prevent issues.

Battery drain is a widespread complaint among Kadjar owners, with the car failing to start after a few days of standing. Common causes include a defective battery sensor, poor earth connections on the gearbox earth strap, and the R-Link 2 infotainment system drawing power when the car is off. Some owners report 'Electrical Failure - Danger - STOP' warnings on the dashboard. The R-Link 2 system itself is prone to freezing, touchscreen unresponsiveness, and spontaneous reboots. Solutions include replacing the battery sensor (€100-150), cleaning earth connections, or replacing the battery itself (€150-250). Early models (2015-2017) are most affected.

The electric folding mirrors on the Kadjar are prone to failure, typically after 30,000-50,000 km. The mechanism uses an internal position sensor that fails, and since the sensor is not sold separately, the entire mirror assembly must be replaced. Moisture penetrating the mirror housing accelerates the internal corrosion of the iron spring that drives the mechanism. Replacement of one mirror unit costs €200-350 including fitting. Cars parked outdoors in wet climates are most affected. Many owners opt to simply disable the auto-fold function rather than replace the mirrors.

The air conditioning system regularly develops malfunctions between 40,000 and 80,000 km mileage, with common causes being defective compressors, blocked expansion valves, or leaks in the refrigerant lines. The 1.6 dCi variant is particularly affected. The compressor can typically endure 150,000+ km but likelihood of failure increases past this mileage. Replacement costs approximately €500-1,000 including parts, labor, regassing, and the mandatory filter dryer replacement. The issue is annoying but not safety-critical.
