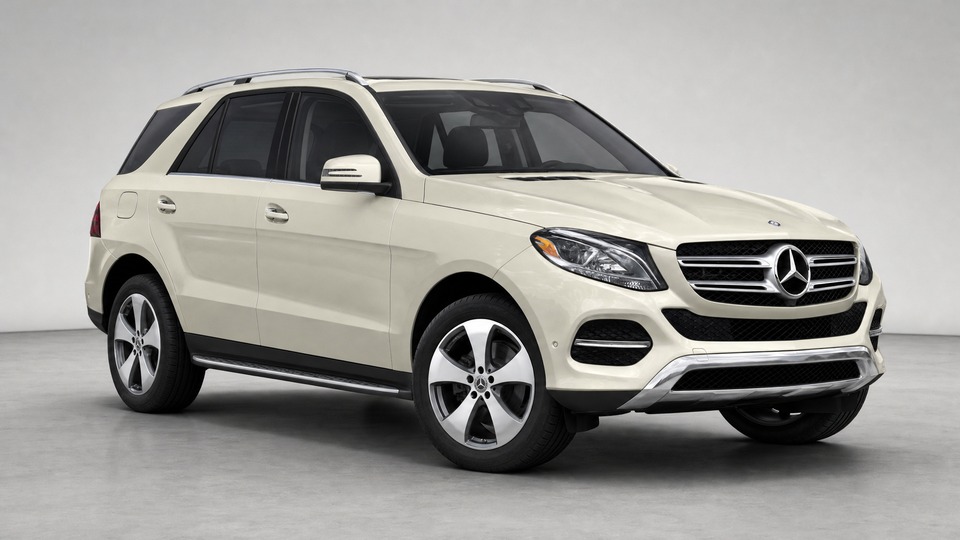

Mercedes-Benz GLE 350d W166

The OM642 oil cooler sits deep in the engine's V between the cylinder banks, and its seals degrade over time. The W166 generation uses updated Viton (purple) seals rather than the original orange ones, reducing failure rates compared to older OM642 applications. However, leaks still occur, typically between 100,000 and 200,000 km. The seal itself costs under €50, but accessing it requires removing the turbocharger, intake manifolds, and EGR cooler. Book time is 8-12 hours. At an independent specialist, expect €1,500-1,800; at a Mercedes dealer, €2,000-2,500. Many specialists recommend replacing the EGR cooler gaskets and swirl flap linkages at the same time, since the labor overlaps.

AIRMATIC is optional on the W166 (standard on AMG variants, otherwise part of the Dynamic Handling Package or On/Off-Road Package). If your car has it, air spring rubber becomes brittle with age, developing leaks typically after 80,000-120,000 km. Symptoms include one corner sagging overnight, the compressor running constantly, or warning messages. A single air strut costs €800-1,500 to replace at an independent specialist, while a failed compressor adds €800-1,200. If a leaking strut is ignored, the compressor overworks and fails, roughly doubling the repair bill. Cars with standard steel springs avoid this issue entirely. Check whether the car has ride height adjustment buttons before purchasing.

The BlueTEC/AdBlue selective catalytic reduction system has multiple components that degrade over time. The most common failure is the AdBlue tank heater element, which typically fails between 80,000 and 150,000 km. The heater prevents the AdBlue fluid from freezing in cold weather, and its failure triggers a countdown warning that eventually prevents engine restarts. Replacement costs €800-1,200 including labor. The NOx sensors (front and rear of the catalytic converter) can also fail, at €400-600 each. In some cases, the entire AdBlue tank assembly needs replacement at €1,200-1,800. Using contaminated or diluted AdBlue fluid accelerates these failures.

Pre-facelift W166 models (ML 350 BlueTEC, 2012-2015) use the 7G-Tronic Plus (722.9) automatic transmission. The conductor plate (which houses speed sensors and electrical connections inside the gearbox) is a known weak point. Symptoms include harsh 1-2 shifting, delayed engagement, or limp mode. Replacement requires dropping the transmission pan and costs €1,200-1,800 at a specialist. If the valve body is also damaged, the cost rises to €2,000-3,000. Post-facelift models (GLE 350d, 2015-2019) use the 9G-Tronic, which is generally more reliable but can develop torque converter shudder at low speeds, typically resolved by a transmission adaptation reset.

The OM642's variable-geometry turbocharger uses an electronic actuator (Hella-manufactured) that controls the vane position. Internal solder joints can crack from heat cycling, causing the actuator to lose position control. Symptoms include limp mode, reduced power, and a check engine light. A specialist can sometimes repair the actuator electronically for €300-500. If the actuator motor is beyond repair, a replacement actuator unit costs €600-900. Mercedes dealers often recommend replacing the entire turbocharger assembly (€2,000-2,500), but this is rarely necessary unless the turbine vanes themselves are seized from carbon buildup.

When the thin copper seal at the base of a fuel injector fails, exhaust gases leak past and carbonize into a hard, tar-like deposit around the injector bore. This is known as 'Black Death' among Mercedes diesel owners. Early symptoms include a faint chuffing sound from the engine and slight diesel smell. The seal itself costs under €5, but the labor to remove the injector (which may be seized by carbon deposits) and clean the bore adds time. Budget €200-400 per injector at a specialist. If the problem is left too long, carbon buildup can make injector removal extremely difficult, potentially requiring the cylinder head to be removed (€800+). Regular inspection of the injector bores is preventive.

The OM642 has swirl flaps in its intake manifolds that improve low-speed combustion. The flaps are connected by plastic linkage rods that become brittle from heat cycling. When they snap, the engine goes into limp mode with reduced power. Replacement of the plastic rods alone costs €200-400 if caught early. If the broken pieces fall into the intake port, they can damage the engine internals, pushing costs much higher. Many specialists now offer upgraded metal linkage kits for around €100-200 in parts. This repair is often combined with oil cooler seal work since the intake manifolds are already removed.

The 4MATIC transfer case can develop seal leaks around the output and input shafts, typically after 100,000 km. Small leaks are often noticed during routine inspections as oil spots under the center of the vehicle. If addressed early, resealing costs €500-800 at a specialist. If ignored, fluid loss leads to bearing wear, which can contaminate the transmission with metal debris. At that point, a transfer case rebuild runs €1,500-2,500. Preventive transfer case fluid changes every 60,000-80,000 km reduce this risk.
