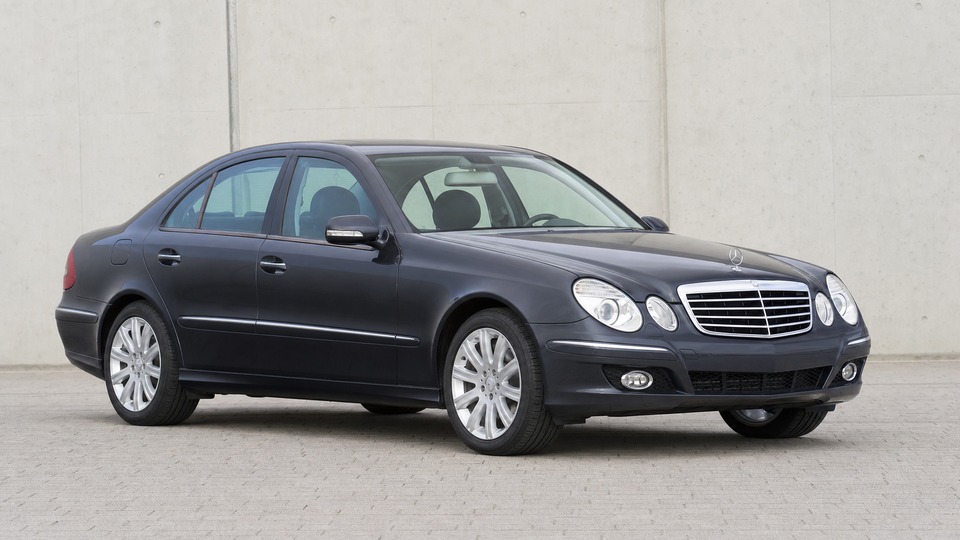

Mercedes-Benz E320 CDI W211

Pre-facelift W211s (2002-2006) use the Sensotronic Brake Control system, which counts brake applications. After approximately 300,000 cycles, the pump is flagged for replacement. Some units fail prematurely with symptoms including a hard pedal, warning lights, and reduced braking force. Mercedes recalled over 1.3 million vehicles worldwide and has extended the SBC warranty to 25 years/unlimited mileage in some markets (primarily the US). In Europe, coverage varies by market and dealer goodwill. Repair involves replacing the hydraulic control unit at approximately €1,200-2,500 at independent specialists. A replaced unit should have a yellow date sticker. Facelift models (2006+) use conventional adaptive brakes and are not affected.

AIRMATIC was optional on the E320 CDI and adds significant comfort but also significant risk. Rear air springs typically fail between 80,000-130,000 km or 8-10 years as rubber bladders perish from age, heat, and UV exposure. Symptoms include one corner dropping after parking overnight, or the compressor running constantly. OEM replacement per spring costs €600-800 fitted. Aftermarket alternatives from Arnott run €300-500 per spring. The compressor itself can fail from overwork (€500-900 fitted). Many owners convert to conventional coil springs (€600-1,200 full kit) as a permanent solution. Cars with standard steel spring suspension avoid this issue entirely.

When injector copper sealing washers degrade, hot exhaust gases blow past and deposit hard carbon/tar around the injector seats. This is known as 'black death' in the Mercedes community. Caught early (minor weeping on one injector), the fix costs €100-300 per injector for seal replacement. If left unchecked, the carbon deposits can damage the cylinder head sealing surfaces, requiring machining (€600-1,500). In worst cases with seized injectors and head damage across all cylinders, costs reach €2,500-3,000. Preventive replacement of injector washers every 60,000 km costs roughly €200 and prevents this issue entirely.

The OM642 V6 (2005-2009 E320 CDI) has the oil cooler buried in the engine's V-section. The original orange seals degrade after 100,000-150,000 km, causing oil leaks. Mercedes later introduced improved purple Viton seals. The repair requires 8-10 hours of labor because the turbo, EGR cooler, and intake manifolds must be removed to access the cooler. Independent specialists typically charge €1,000-1,500, while dealers quote €1,800-2,500. This issue does not affect the earlier OM648 inline-6 engine.

Both the OM648 and OM642 use servo-driven swirl flaps in the intake manifold that eventually fail. On the OM648, the ball-and-socket linkage galls and disconnects from the servo motor. On the OM642, the plastic flaps gum up from EGR soot. Symptoms include reduced power, rough idle, and engine management light. A new OEM intake manifold with motor costs €1,500-1,800. Many owners use a Euro-spec manifold or install a resistor bypass (€5-50) to fool the ECU. Aftermarket repair kits for the OM642 rod linkage cost €50-100. The issue typically appears between 100,000-180,000 km.

The variable geometry turbocharger uses an electronic actuator that can stick or fail due to carbon buildup and heat cycles. This is particularly common on cars driven gently or predominantly on short trips. Symptoms include sudden power loss, limp mode, and the engine warning light. Actuator rebuild services are available in Europe for €150-250 with lifetime warranty. If the turbo internals are also damaged, full turbo replacement costs €1,000-1,500 at an independent specialist. Regular highway driving at higher revs helps keep the actuator free.

The W211 uses front and rear SAM modules to manage lighting, locking, and sensors. Water ingress from blocked cowl drains or deteriorated seals corrodes these modules, causing seemingly random failures: headlights not working, wipers behaving erratically, horn stopping, battery drain, and dashboard warnings. The front SAM is most commonly affected. Module repair costs €100-200 at electronics specialists, while full replacement with programming runs €400-700. Wiring harness damage in the boot lid hinge area is another common point where flexing breaks ground wires. Pre-facelift models are more prone than facelift cars.

The 722.6 5-speed automatic uses a conductor plate containing speed sensors and the starter lockout switch. When it fails, symptoms include intermittent no-crank conditions, harsh shifts, limp mode, and erratic gear changes. Conductor plate replacement costs €200-400 including parts and filter at an independent shop. However, if transmission fluid has been neglected (never changed), internal damage may require a valve body rebuild (€800-1,200). Regular fluid changes every 60,000 km are critical. On early pre-facelift models (to September 2003) with Valeo radiators, coolant can leak into the transmission fluid causing catastrophic internal damage.

The OM648 has an aluminium cylinder head where glow plugs can seize over time due to heat cycling and corrosion. Standard removal becomes risky as seized plugs can strip the threads. Specialist extraction tools and techniques (thermal cycling, penetrating oil, slow removal over multiple sessions) typically cost €200-500 for the full set. If threads are damaged, helicoil inserts add €100-200 per plug. Regular anti-seize application during service helps prevent this. The issue is most common on plugs that have never been replaced beyond 100,000 km.
