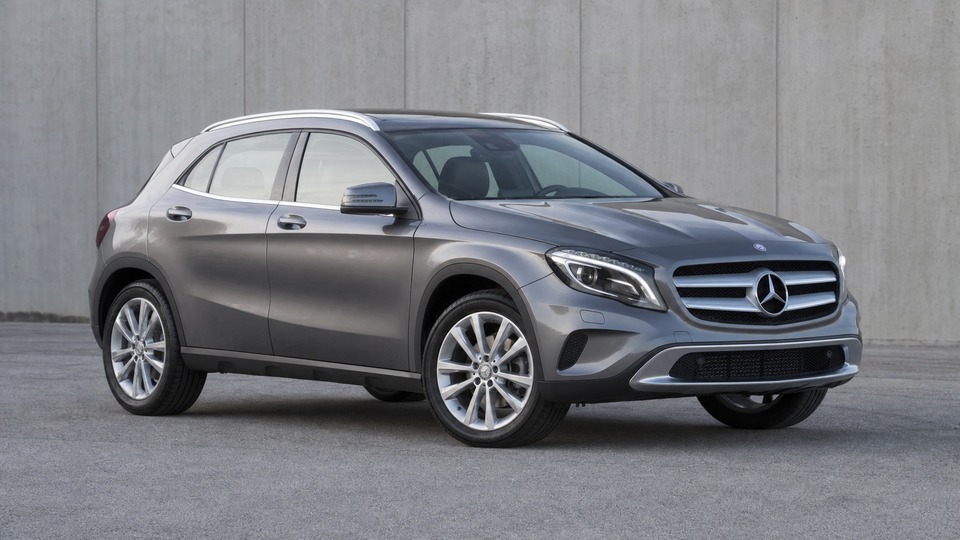

Mercedes-Benz GLA 200 CDI X156

The OM651 uses a single timing chain located at the rear of the engine, which is an inherent design weakness. The tensioner can lose hydraulic pressure overnight, allowing the chain to rattle for several seconds on cold start. This typically develops between 100,000-150,000 km. A 2015 recall addressed a defective seal ring on the tensioner that could leak oil (production February to November 2014). Replacement requires significant labor as the chain is at the back of the engine. Independent specialists charge around €1,200-1,500 for chain, tensioner, guides, and sprockets. Mercedes dealers quote closer to €2,500-2,800. If ignored, the chain can skip a tooth, causing catastrophic valve-piston contact.

The 7G-DCT (724.0) is a dry-clutch dual-clutch gearbox that struggles with the high torque of diesel engines. Clutch packs on diesel GLA models commonly wear between 70,000-100,000 km (vs 130,000-150,000 km on petrol variants). Symptoms include shudder from standstill, hesitation on low-speed shifts, and jerky 1st-2nd gear transitions. Clutch pack replacement costs €900-1,700. If the mechatronic unit is also damaged (solenoid wear from degraded oil), add €1,200-1,700 for overhaul or €2,000-3,000 for a new unit. Changing the transmission fluid (MB 236.21 spec) every 60,000 km is essential preventive maintenance, though Mercedes originally marketed the fluid as lifetime fill. Manual gearbox models avoid this issue entirely.

The EGR valve on the OM651 accumulates soot deposits, particularly on cars used primarily for short urban trips where the engine rarely reaches full operating temperature. Symptoms include hesitation on acceleration, rough warm idle, and occasionally a check engine light. The valve typically needs attention between 80,000-120,000 km. Cleaning costs €150-250 at a specialist. If the valve is too damaged, replacement runs €400-700 for parts plus 2-3 hours labor. The intake manifold often needs cleaning at the same time, adding €100-200. Regular highway driving helps prevent buildup.

The OM651 injectors sit directly in the combustion chamber, sealed by copper washers. Over time these washers can degrade, allowing exhaust gases to leak past and create thick black carbon deposits around the injector base. This is commonly known as 'black death' in Mercedes diesel circles. Early symptoms include a slight diesel odor and visible black residue around the injector wells. If caught early, resealing a single injector costs €100-200. If all four need attention or the carbon has hardened, the job can reach €500-800. Neglected cases where injectors become carbon-welded into the head can require specialist extraction, potentially costing €1,000-1,500. The issue typically appears after 80,000+ km.

The oil cooler on the OM651 is integrated with the oil filter housing on the driver's side of the engine. The gaskets between these components harden with age and thermal cycling, eventually allowing oil to seep out. This is a gradual issue that becomes more common after 80,000-100,000 km. The repair is moderately labor-intensive because access requires removing the EGR cooler and intake components. Parts (gaskets, O-rings) are inexpensive at €30-60, but labor at an independent shop typically runs €300-500. Dealers charge €500-800 for the complete job. It is not dangerous in early stages but should be addressed to prevent more extensive contamination.

Like all modern diesels, the GLA 200 CDI relies on periodic DPF regeneration cycles that require sustained driving at highway speeds. Cars used predominantly for short urban trips may not reach the exhaust temperatures needed for passive regeneration. When the DPF soot load exceeds safe levels, the engine management triggers active regeneration (injecting extra fuel to raise exhaust temperature), but if trips are consistently too short, even this fails. Professional DPF cleaning costs €300-500. If the filter is beyond cleaning, replacement runs €1,200-2,000 including labor. Driving 20+ minutes on the highway every week or two significantly reduces this risk.

Models equipped with the automatic tailgate can develop issues from around 50,000 km. Symptoms include the tailgate lifting only partially, stopping mid-close, or requiring manual assistance. Common causes are blocked guide rails (23% of cases), worn compression springs, or failed drive motors. Motor replacement typically costs €300-500. Sensor replacement runs €200-350. Annual lubrication of the tailgate rails with silicone grease prevents most mechanical failures. The issue affects only cars equipped with the power tailgate option.
