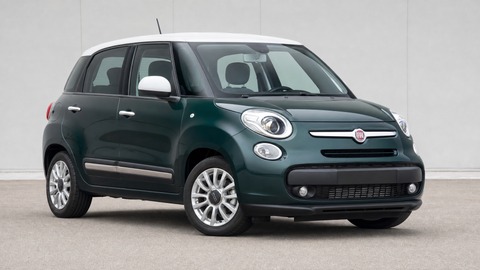

Fiat 500L 0.9 TwinAir Mk1

The TwinAir uses a hydraulic MultiAir (UniAir) system to control valve opening and closing. This system relies entirely on engine oil pressure and quality. If oil changes are missed, done with incorrect specification oil (must be 0W-30 C2 meeting Fiat 9.55535-GS1), or the oil level drops too low, the solenoids and hydraulic actuators inside the module can seize or wear prematurely. In the 500L, the engine works harder due to the vehicle's weight, meaning oil degrades faster. Symptoms include significant power loss, rough idle, cold-start difficulty, and engine warning light. Two Fiat dealers have reported selling at least one UniAir module per month, indicating this is not a rare failure. The replacement module costs approximately 700 to 1,000 euro for the part, with labor adding 200 to 500 euro. Frequency drops considerably with oil changes every 10,000 to 12,000 km using the correct specification.

The TwinAir's two-cylinder firing pattern creates strong vibration pulses that accelerate dual-mass flywheel wear. In the 500L, this problem is amplified because the engine has to work harder to move 1,260 kg of vehicle, putting significantly more load through the drivetrain than in the 940 kg Fiat 500. Forum owners commonly report clutch and DMF replacement between 50,000 and 80,000 km on the 500L, which is shorter than on the lighter 500. Symptoms include increasing vibration at idle, rattling noise when the clutch pedal is depressed, and jerky engagement. A complete clutch kit with DMF costs approximately 450 to 550 euro in parts, with 350 to 500 euro in labor (6 to 7 hours). A solid flywheel conversion kit is available for around 350 euro and eliminates the DMF issue permanently, though it increases cabin vibration slightly.

The turbo wastegate actuator can stick due to carbon buildup or mechanical wear at the pivot point, with play of 3 to 4 mm reported in worn units. This causes overboosting or underboosting, triggering the engine management light and limp mode. In the 500L, the turbo operates under more sustained load than in the lighter Fiat 500, which can accelerate actuator wear. Short-trip driving also accelerates this issue. If caught early, cleaning and adjustment costs 150 to 300 euro. If the actuator needs replacement, expect 300 to 600 euro. If the entire turbo unit needs replacing (turbo and exhaust manifold are one piece on the TwinAir), costs rise to 1,000 to 1,500 euro including labor. Regular spirited driving and avoiding exclusively short urban trips helps prevent this.

The 500L shares the Fiat 500 platform's electric power steering system, which has a known torque sensor weakness. The fault typically starts intermittently, with the steering warning light appearing briefly and steering becoming momentarily heavy, before progressing to complete failure. The most common fault code is C1002 (Steering Column Motor Torque Sensor), though C1009 and C1214 have also been reported on the 500L specifically. A new column from the dealer costs over 800 euro plus labor and coding. Specialist rebuild services offer the repair for 400 to 600 euro with a lifetime warranty and no coding required.

TwinAir engines produced before approximately March 2012 are particularly prone to oil leaking from the front timing chain cover due to insufficient sealant applied at the factory. Since the 500L launched in late 2012, the earliest cars may still be affected. Later production addressed this with better sealing procedures. The repair involves removing the timing cover, cleaning the mating surfaces, and resealing. While gaskets and sealant cost very little (around 20 euro), the labor is 4 to 6 hours, bringing total cost to 300 to 750 euro depending on the shop. If the cover is removed anyway, it is worth replacing the timing chain tensioner and water pump at the same time.

The TwinAir's oil cooler housing is made of plastic and degrades through repeated heat and cool-down cycles. As it ages, the plastic cracks and the gasket deteriorates, allowing coolant or oil to leak from the back of the engine onto the exhaust pipe. This leak often drips much faster when the engine is warm. Repair is labor-intensive because the oil cooler sits behind the alternator, requiring removal of the auxiliary belt, air conditioning compressor, alternator, and starter motor. Parts cost approximately 50 to 100 euro, but 3 to 5 hours of labor brings the total to 300 to 600 euro.

The rubber boost pipe connecting the intercooler to the intake manifold is prone to splitting along its length, especially with age and heat cycling. Symptoms include a blowing or hissing noise from the engine bay under acceleration, noticeable power loss, and potentially limp mode. This is one of the most common TwinAir issues and among the cheapest to fix. An OEM replacement pipe costs 50 to 100 euro, and the repair takes about an hour. Some owners fit aftermarket silicone replacements for better durability at around 150 to 300 euro.
