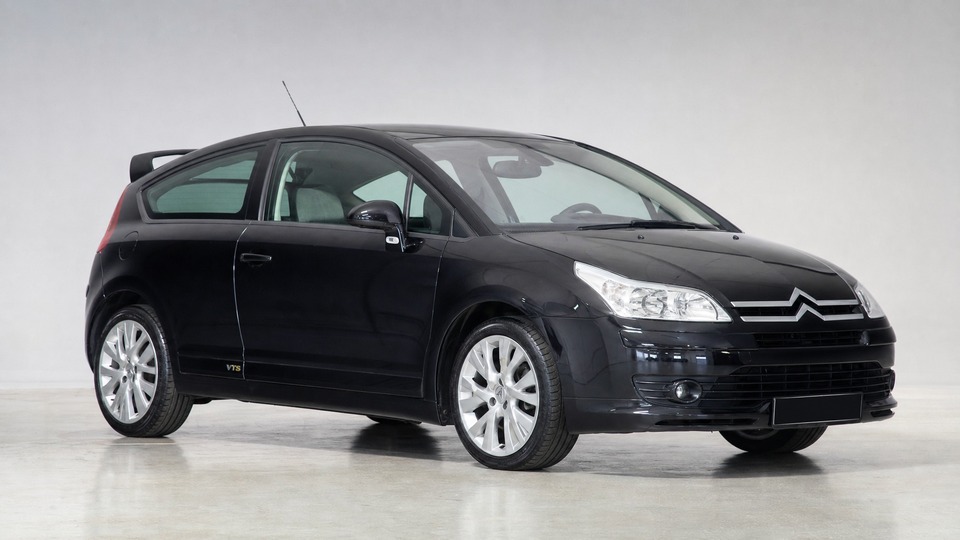

Citroën C4 VTS Mk1

The BSI module controls lighting, central locking, wipers, windows, and climate control. Failures manifest as seemingly unrelated electrical gremlins: windows operating in reverse, parking sensors going dead, climate control stopping, or the car refusing to start. A BSI reset (disconnecting the battery for 15 minutes) often resolves minor glitches temporarily. Specialist repair/reprogramming costs around €300-500. Full replacement at a dealer reaches €800-1,000 including coding. PSA specialist workshops can often repair the module rather than replacing it, saving significant cost. The issue is more common on pre-2008 cars.

The EW10J4S uses a coil-on-plug ignition system where individual coils can fail, causing cylinder misfires. Symptoms include rough idle, loss of power, and engine management warnings. A single coil costs €30-50 for aftermarket or €60-80 for OEM. With the Magneti Marelli ECU fitted to some VTS models, a failing coil can spike the ECU and damage it, potentially turning a €150 coil replacement into a €500+ repair if the ECU also needs replacing. Recommended to replace all four coils together as preventive maintenance, typically needed between 60,000-100,000 km.

The C4 VTS has a unique exhaust system not shared with other C4 variants. OEM replacement from Citroën costs around €1,000-1,500 because the system is specific to this model. Rust attacks the welds on the centre section and the backbox crimped casing. Common on cars over 10 years old, particularly in northern European climates. Custom stainless steel fabrication from an exhaust specialist typically costs €400-700 and is the preferred solution among owners. Check the underside thoroughly for leaks, as exhaust manifold blowing and cracked welds are widely reported.

The EW10J4S engine is known for oil weeping from the valve cover gasket and the crankshaft rear oil seal as seals age. The valve cover gasket is a straightforward repair at €100-200 including labour. The crankshaft rear seal is more labour-intensive (requires gearbox removal to access), pushing costs to €400-800. Oil can also seep from the camshaft area. These leaks are cosmetic initially but worsen over time. High-mileage cars (above 120,000 km) are most affected. Using the correct oil specification (5W-40 or 10W-40 fully synthetic) and regular changes helps slow deterioration.

On cars now 16-22 years old, rubber coolant hoses and the thermostat housing gasket are common leak points. Symptoms include slow coolant level drop, sweet smell from the engine bay, or visible staining. The thermostat housing gasket is an inexpensive part (€20-40) but can be tricky to access, with total repair around €150-300. If coolant loss is ignored and the engine overheats, head gasket damage can follow, escalating costs significantly. Regular coolant level checks are essential on these older cars.

The EW10J4S features variable valve timing controlled by an oil-pressure solenoid. Carbon buildup or degraded oil can cause the solenoid to stick, resulting in rough running, loss of power, and potential engine warning lights. The solenoid itself costs €50-100, with labour around €100-150. In rare cases, a stuck VVT solenoid can damage valve timing components, and some owners report needing an ECU replacement after extended running with the fault. Using the correct oil viscosity and regular oil changes help prevent this issue.

Broken rear springs are a common issue across the C4 range and many French cars of this era. The springs corrode from road salt and break at the bottom coil, often without warning. Symptoms include a clunking noise from the rear and uneven ride height. A single spring costs €40-80 for aftermarket, and they should always be replaced in pairs. With labour, expect €200-400 for both sides. The issue is more prevalent in countries with salted winter roads. Check during a test drive by listening for metallic clunking over bumps.
