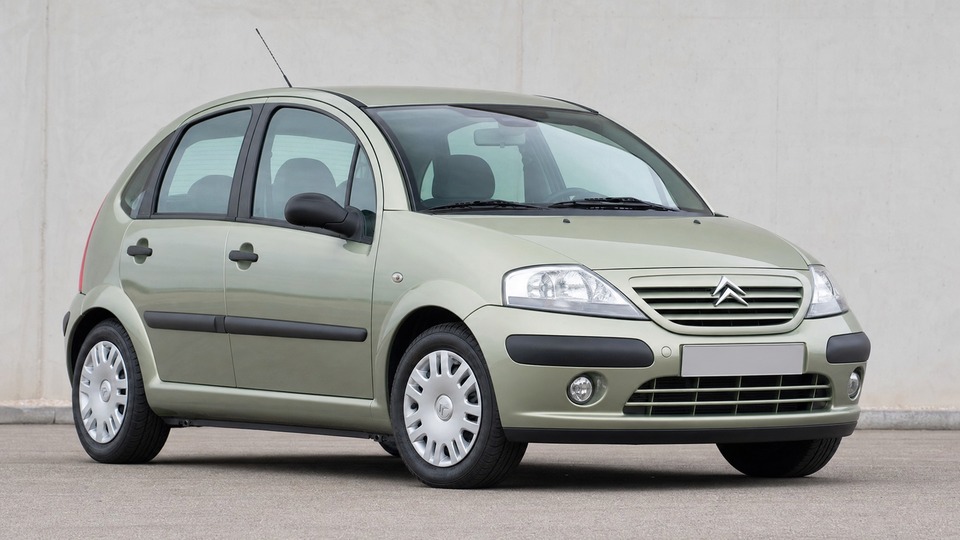

Citroën C3 1.4 HDi Mk1

The DV4TD engine is available in 8v (68 hp) and 16v (90 hp) versions. The 16v variant is widely regarded as less reliable, with forum members consistently recommending against it due to expensive injector problems. On the 8v, injector issues are less common but still the single biggest potential expense. Symptoms include rough idling, rattling at speed, smoke, and fault codes indicating injector imbalance (P0263, P1163). A single reconditioned Bosch injector costs approximately €100-150; a new OEM unit runs €200-300. If multiple injectors fail, total repair costs can reach €800-1,500 including labour. Using quality fuel (Shell or BP-grade diesel) and changing the fuel filter every 30,000 km helps extend injector life. The copper injector washers should also be inspected and replaced periodically, as leaking seals allow combustion gases to damage the injectors from the outside.

The DV4TD has a small mesh strainer filter in the turbo oil feed banjo bolt that can become blocked with carbon deposits, particularly on cars where oil changes have been extended or low-quality oil was used. This starves the turbo bearings of oil, causing premature wear. Symptoms include blue or white exhaust smoke, loss of boost, and a whining noise from the turbocharger. The turbo itself (KKK KP35 type) can be sourced remanufactured for €150-250 or new aftermarket for approximately €200-350. With labour of €200-400 depending on the workshop, total repair costs range from €500-1,500. When replacing the turbo, the oil feed pipe, banjo bolt, and return pipe must also be replaced to prevent repeat failure. Prevention is straightforward: use quality oil, change it every 12 months or 15,000 km maximum, and have the banjo bolt strainer cleaned every 60,000 km.

The BSI (Body Systems Interface) is the central electronic control module managing lighting, central locking, wipers, and the immobiliser. On the Mk1 C3, the BSI is mounted below the windscreen where water can enter through deteriorated scuttle seals or blocked drainage channels. Water ingress causes corrosion on the circuit board, leading to intermittent faults: central locking that stops responding, windows that operate randomly, the car forgetting its settings after each ignition cycle, or in severe cases, a complete no-start condition because the immobiliser remains permanently active. Specialist repair (drying, cleaning corrosion, replacing failed capacitors) costs approximately €150-300 with a lifetime warranty from companies like BBA-Reman. A new BSI unit from Citroën costs €400-600 and must be coded to the vehicle VIN, keys, engine ECU, and radio. This issue is more common on cars parked outdoors or in damp climates.

Front coil spring breakage is a very well-known C3 Mk1 problem. Multiple owners report springs snapping suddenly, sometimes while parked. When a spring breaks, one end can rotate and puncture the front tyre, causing a sudden loss of control. Citroën issued a recall to fit retaining cups that catch the broken spring end, but the recall did not replace the springs themselves. Not all VIN ranges were covered, so some cars may not have been recalled. Replacement springs cost approximately €30-50 each for aftermarket parts, with around €100-150 per side in labour at an independent garage. When replacing one spring, it is strongly recommended to replace both sides. Total cost for a pair including fitting is €150-400. Uprated aftermarket springs are available and recommended over OEM replacements. Check both front springs carefully during any pre-purchase inspection.

Urban driving and short trips accelerate carbon buildup on the EGR valve, restricting exhaust gas flow. Symptoms include loss of power, rough idling, black smoke, and the anti-pollution fault message on the dashboard. Cleaning the EGR valve with brake cleaner is effective and straightforward on the 1.4 HDi, costing approximately €80-150 at an independent garage. The valve sits underneath the air filter box and is held by two bolts. If the valve spring is broken or the vacuum diaphragm has perished, a replacement valve is needed at approximately €200-500 including fitting. Regular motorway runs help keep the EGR cleaner. This is particularly common on cars used predominantly for city commuting.

A known PSA defect where coolant from a leaking connection or expansion tank can travel along the inside of the engine wiring harness and reach the ECU connector, causing corrosion on the terminal pins. Symptoms include intermittent cutting out, misfiring, poor running, or failure to start. Diagnostic fault codes often misleadingly point to throttle position or temperature sensors when the real cause is corroded ECU pins. This issue is more common on petrol C3 models but can also affect the 1.4 HDi. ECU connector repair and cleaning costs approximately €100-200 at a specialist. If the ECU board itself is damaged, specialist repair runs €200-400, while a new ECU from Citroën with coding costs €700-900. Applying dielectric grease to connectors after repair helps prevent recurrence.

If the C3 is equipped with the SensoDrive automated manual gearbox, be aware that this system has a well-documented design flaw. The gearbox ECU is prone to failure, causing symptoms that range from jerky shifts and hesitation to inability to select gears or a complete no-start condition. The gear change actuator mechanism can also fail. ECU repair by a specialist costs approximately €200-350, while a complete replacement actuator mechanism runs €500-900. Clutch replacement on SensoDrive models costs approximately €400-800 including the actuator recalibration. The design flaw is present even in new replacement ECUs from Citroën. Manual gearbox versions of the C3 are significantly more reliable and should be preferred. If you must buy a SensoDrive, test all gears thoroughly during a long test drive, feeling for hesitation or clunking.
