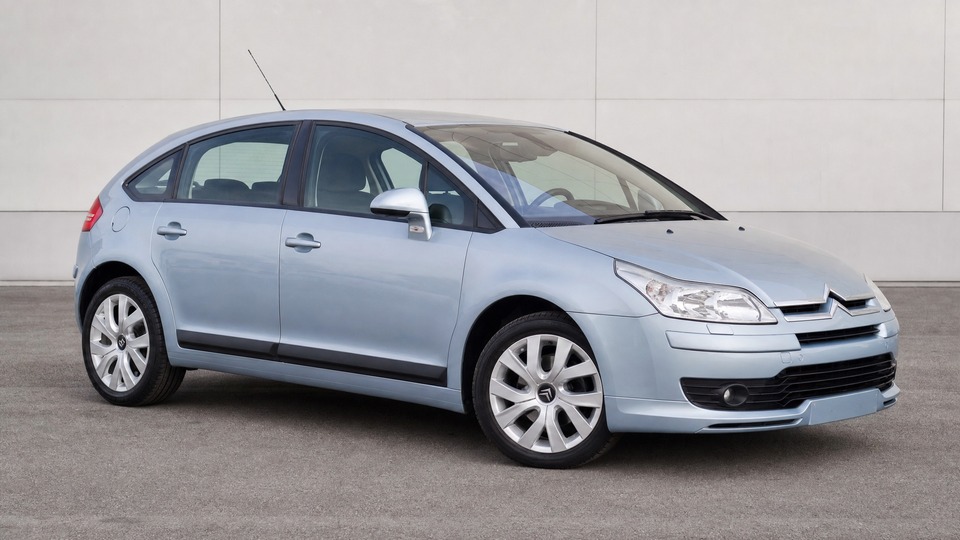

Citroën C4 1.4 Mk1 Reliability

Common Problems

Head gasket oil leak (TU3JP 16V)

€800 - 1,5001 of 7

Gasket loses seal at an oil gallery in the front corner, leaking oil externally or into coolant · more· less

The 1.4 16V engine has a well-documented head gasket weakness. The OEM gasket tends to lose its seal at an oil gallery passage near the front of the cylinder head, typically around 100,000-130,000 km. Initial symptoms are external oil seepage between the block and head near the timing cover side. In more advanced cases, oil contaminates the coolant (brown or milky fluid in the expansion tank). Many owners report the car can run for years with a minor external leak, but once coolant contamination begins, prompt repair is needed to avoid overheating damage. The gasket itself is inexpensive (€30-50) but labor involves removing the cylinder head. Budget €800-1,200 at an independent garage, or up to €1,500 at a dealer. Using a quality replacement gasket (genuine PSA or Elring) is important, as cheap aftermarket gaskets have a reputation for premature failure on this engine.

Electric power steering pump failure

€400 - 8002 of 7

Electro-hydraulic pump motor or control module burns out, causing heavy steering · more· less

The C4 Mk1 uses an electro-hydraulic power steering pump that is known to fail. The pump can stay energized even with the ignition off, draining the battery and eventually burning out the motor or its control electronics. Symptoms start as intermittent heavy steering, often when parking, and progress to complete loss of power assistance. A new pump costs €300-500 for the part alone. Refurbished units or specialist ECU repairs bring the total down to around €400-500 including labor. Full replacement at a dealer with a new unit can reach €700-800. If the car also suffers battery drain (flat battery after a few days of standing), a faulty power steering pump staying active is a likely cause.

Window regulator cable snap

€150 - 3503 of 7

Internal cable rusts and snaps, window drops into the door or stops moving · more· less

Water ingress through degraded door seals causes the steel cable inside the window regulator mechanism to corrode and eventually snap. The window motor can be heard running, but the glass does not move, or drops fully down into the door panel. This is a common issue across PSA vehicles of this era. Replacement regulators cost €30-70 for aftermarket or €80-120 for OEM parts. Labor takes about 1-1.5 hours, so total cost is typically €150-250 at an independent garage. The driver's door is affected most often due to heavier use.

Ignition coil and spark plug tube seal failure

€100 - 3004 of 7

Oil leaks past valve cover seals into spark plug wells, damaging coil packs · more· less

The valve cover gasket on the TU3JP 16V engine includes spark plug tube seals that harden with age. When these seals fail, engine oil seeps into the spark plug wells, eventually soaking the ignition coils and causing misfires (typically P0300-P0304 codes). The fix involves replacing the valve cover gasket set (€20-40) and any damaged coil packs (€25-50 each). Total repair is typically €100-200 at an independent garage. This is also a good time to replace all spark plugs. The issue usually appears from 80,000 km onward.

Catalytic converter degradation

€400 - 8005 of 7

Internal substrate breaks down, triggering P0420 efficiency code and potential MOT/emissions failure · more· less

The catalytic converter on the 1.4 petrol can degrade after 120,000-150,000 km, triggering a P0420 fault code (catalyst efficiency below threshold). Before replacing the cat, the oxygen sensors should be checked first, as a faulty downstream lambda sensor accounts for around 30% of P0420 diagnoses. If the converter itself is confirmed faulty, aftermarket replacements cost €200-400, while OEM units run €400-600. Including labor, expect €400-800 total. Short-trip driving and engine misfires accelerate converter degradation.

Suspension component wear (anti-roll bar links and coil springs)

€150 - 4006 of 7

Front anti-roll bar drop links and rear coil springs wear out, causing knocking and uneven ride height · more· less

Front anti-roll bar drop links are a common wear item on the C4 Mk1, producing knocking sounds over bumps, particularly noticeable at low speeds. These are inexpensive to replace (€30-50 for the pair plus about an hour of labor). Rear coil springs can also crack, especially on cars that have covered higher mileages or been driven on poor roads. A broken spring causes the car to sit lower on one side and will fail roadworthiness inspections. Replacement of a pair of rear springs costs around €100-200 including labor.

Central locking and electrical module faults

€100 - 4007 of 7

Door wiring harness fractures from repeated opening, causing lock, window, and mirror failures · more· less

The wiring loom that passes through the rubber boot between each door and the A/B-pillar is prone to fatigue fractures. As the door is opened and closed over years, individual wires break, causing intermittent or complete loss of central locking, electric windows, mirror adjustment, or interior lighting on individual doors. The driver's door is most commonly affected. Diagnosis involves checking for broken wires in the door boot; repair can be a straightforward solder job (€50-100 at a garage) or may require a replacement wiring harness section (€150-400 including labor). Connector blocks under the door module can also work loose from vibration and simply need re-seating.

Affordable to run, but head gasket and electrics need attention

The 1.4 16V TU3JP engine is a fundamentally simple and long-lived unit, but the head gasket oil leak weakness is well documented and should be expected on higher-mileage examples. Electrical issues are par for the course with PSA vehicles of this era. Parts are inexpensive and widely available, so even when problems occur, repairs tend to be affordable compared to German or Japanese alternatives. Post-2008 facelift cars are generally more dependable.

Pre-Purchase Inspection Checklist

General checks

Service history
Complete records essential. Verify oil changes every 12 months or 15,000 km and timing belt replacement at the scheduled interval.
Tire condition
Check tread depth, age (date codes on sidewall), and uneven wear patterns that indicate alignment or suspension problems.
Cold start
Start the engine completely cold. Listen for unusual knocking or tapping sounds in the first 30 seconds.
Test drive
Drive for at least 20 minutes including varied speeds. Feel for any vibrations, pulling to one side, or unusual noises.

Specific for this vehicle

Inspect for oil leaks around head gasket area
Look for oil seepage between the cylinder head and block, especially at the front near the timing cover. Check coolant for contamination (brown or milky appearance in expansion tank).
Test power steering at low speed and when parking
Turn the wheel lock to lock at low speed. Any heavy spots, whining, or intermittent loss of assistance points to power steering pump problems.
Operate all electric windows from every door switch
Test each window up and down from both the master switch and individual door switches. Listen for motors running without window movement.

+ 3 more checksShow less

Check central locking on all doors
Lock and unlock the car with the remote and the key. Verify every door locks and unlocks. Try the interior buttons for each door individually.
Verify timing belt replacement history
The 1.4 16V requires timing belt replacement every 100,000 km or 10 years. Check invoices or stamps in the service book. If undocumented, assume it needs doing.
Check for dashboard warning lights
With the ignition on (engine off), verify all warning lights illuminate for the self-test, then confirm they all extinguish once the engine is running. Persistent engine management or ABS lights indicate unresolved faults.

Recalls and Technical Service Bulletins

ABS ECU short circuit / fire risk (Jan 2004 - Dec 2005 production) Verify completed

Front airbag may not deploy correctly (Nov 2004 - Jan 2006 production) Verify completed

Brake fluid leak from ABS/ESP module (Jun 2005 - Sep 2006 production) Verify completed

Brake assistance vacuum pump fault (Mar 2006 - Jan 2007 production) Verify completed

Braking assistance performance issue (Dec 2006 - Mar 2009 production) Verify completed

Tailgate may operate incorrectly (May 2004 - Jul 2006 production) Verify completed

Takata driver airbag inflator (Feb 2010 - Sep 2013 production, late Mk1/early Mk2) Critical - verify completed

The C4 Mk1 was subject to multiple safety recalls, particularly around the braking system and airbags in early production years. Contact a Citroën dealer with the VIN to verify all applicable recalls have been completed. The Takata airbag recall is especially critical for 2010 model year vehicles.

Warranty Status

Factory warranty (2 years) Expired on all C4 Mk1 models

Rust perforation warranty (12 years) Expired on all but the latest 2010 production cars

All Citroën C4 Mk1 models are well beyond their original 2-year factory warranty. Extended warranty options through third-party providers may be available but are rare for cars of this age.

Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.

This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
