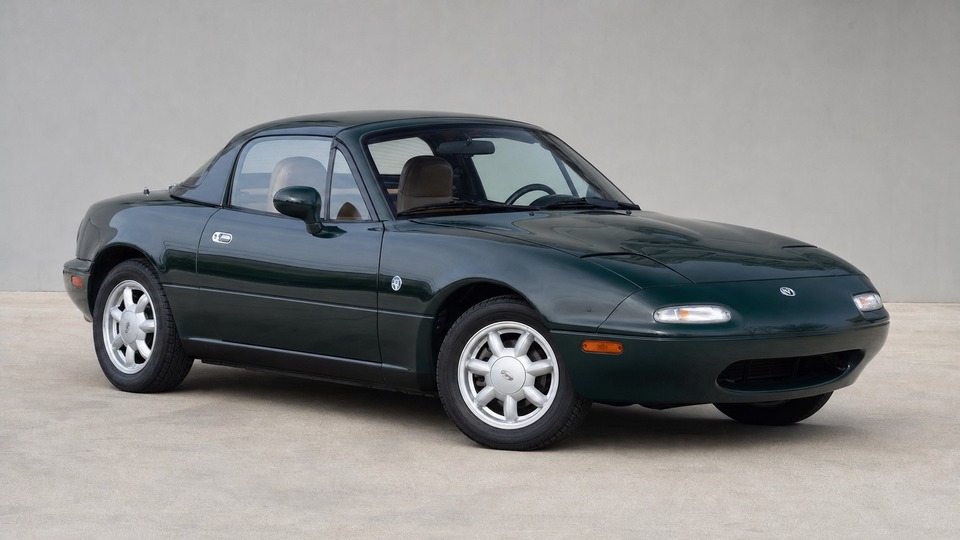

Mazda MX-5 1.8 NA

This is the single biggest threat to any NA MX-5. Water enters the sill cavity through the hood drain channels and, if the drain tubes behind the seats become blocked with leaves and debris, it pools inside the sills and rusts them from within. By the time paint starts bubbling on the outside, the inner structure may already be severely compromised. The rear sill closing panels are the most commonly affected area, followed by the rear wheel arches, front chassis rails, and boot floor. Repair costs vary enormously depending on severity: a localised patch on one sill runs around €450-500 per side, but if the inner sill, side panel, and wheel arch all need cutting out and welding, costs can reach €1,000-1,500 per side. Full structural restoration of a badly rusted NA can exceed €3,000. Nearly every surviving NA that has spent its life in northern or western Europe will show some degree of corrosion. Cars from southern Europe or Japan tend to be in far better condition.

On a car this old, the original plastic-and-aluminium radiator is almost certainly past its useful life. Internal silting reduces cooling capacity, and the plastic end tanks become brittle and can crack without warning. A failed radiator that goes unnoticed leads to overheating, which can warp the aluminium cylinder head and blow the head gasket. An OEM-style replacement radiator costs around €150-250. Many owners upgrade to an all-aluminium aftermarket unit (Mishimoto or similar) for €250-350, which eliminates the plastic failure point. If overheating has already occurred and the head gasket is gone, expect €800-1,200 for a head gasket replacement including head skimming at an independent specialist. Rubber coolant hoses also perish with age and should be replaced preventively. A full hose set costs around €60-100.

Every NA MX-5 soft top has a finite lifespan, and at 28-35 years old, most will have been replaced at least once. The original vinyl hoods develop cracks, tears, and shrinkage, particularly around the seams and at the rear window. Plastic rear windows cloud, yellow, and eventually become opaque. The frame mechanism itself can develop worn pivot points, causing poor sealing and difficulty latching to the windshield header. A replacement vinyl top with a plastic window, professionally fitted, costs around €500-600 in Europe. Upgrading to a mohair fabric with a glass heated rear window runs €800-1,000 fitted. The frame itself is usually reusable unless bent or severely corroded. If the header channel (where the top meets the windshield) has rusted, add €100-200 for repair.

The CAS sits at the rear of the cylinder head and seals with a rubber O-ring that hardens and shrinks over time, allowing engine oil to seep past. This is widely reported as the single most common oil leak on the NA MX-5. The leak itself is harmless in small quantities, but oil drips onto the heater hose directly below the sensor, which can eventually degrade the rubber hose and cause a coolant leak. The O-ring itself costs under €5, and the job takes about 30 minutes. Using a Viton O-ring rather than standard rubber extends the replacement interval significantly. If the heater hose has been damaged by oil contamination, replace it at the same time for around €10-20. At an independent garage, expect €50-150 including labour.

A ticking noise from the valve train, especially noticeable for the first 30-60 seconds after a cold start, is common on higher-mileage 1.8 BP engines. The hydraulic lash adjusters lose oil pressure overnight and take a moment to pump up when the engine starts. In mild cases, this is cosmetic and clears within seconds. If the ticking persists for longer or is present when warm, the HLAs need replacing. Individual HLAs cost around €30-45 each (there are 16), and the job requires removing the rocker arm assembly, making it labour-intensive. Budget around €300-800 depending on how many need replacing and labour rates. Regular oil changes with quality 10W-40 oil help prevent premature HLA wear.

The rear brake calipers on the NA are prone to seizing, particularly on cars that are used infrequently or stored over winter. The caliper pistons corrode within the bore, preventing them from retracting properly. Symptoms include the car pulling to one side under braking, excessive heat from one rear wheel, or dragging brakes. A caliper rebuild kit costs around €20-30 per side, but if the bore is too corroded, replacement calipers are needed. Reconditioned calipers run €80-120 each; new OEM units are around €150-200 each. Including labour, a full rear caliper overhaul typically costs €200-500. Regular use and annual caliper piston exercise during brake service helps prevent this.

The original cast iron exhaust manifold develops cracks over many heat cycles. A missing or broken downpipe-to-bellhousing bracket accelerates the problem by allowing the exhaust to flex with engine movement. Symptoms include a ticking or hissing noise under acceleration that reduces when warm. A cracked manifold will fail an emissions test. OEM replacement manifolds are becoming scarce, but aftermarket stainless steel headers are widely available from European MX-5 specialists for €200-400. Labour for manifold replacement is around 2-3 hours. If the downpipe flange bolts have rusted and seized (common on European cars), the job becomes more time-consuming and expensive.

The pop-up headlights are an iconic NA feature but rely on small electric motors that can fail after decades of use. Typically one motor fails rather than both simultaneously. Used replacement motors are available from breakers for around €50-80, and new aftermarket units cost €100-150. The replacement is relatively straightforward. Debris and dirt can also jam the mechanism. Before replacing the motor, check that the issue is not simply a corroded connector or relay. A manual override knob behind each headlight allows the lights to be raised by hand as a temporary workaround.
