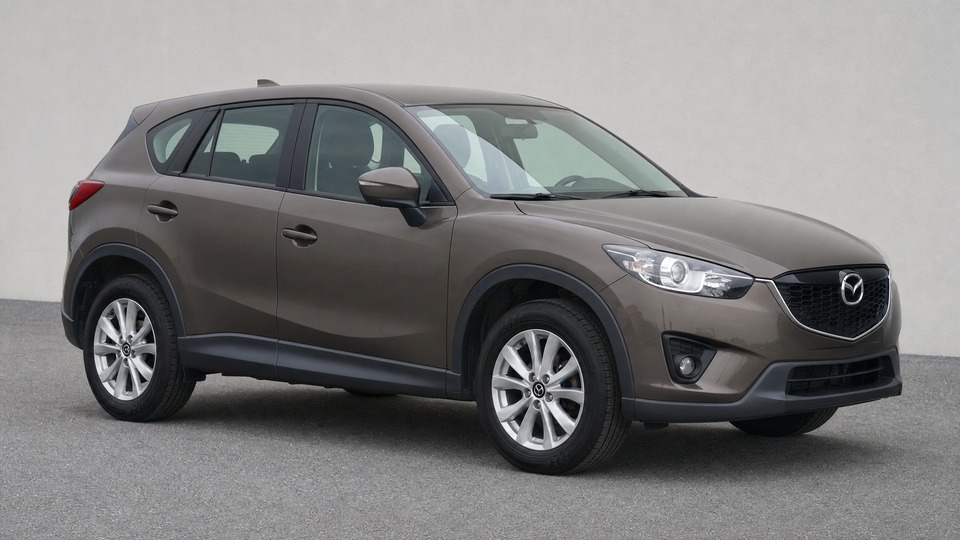

Mazda CX-5 KE 2.2 Skyactiv-D

This is the most serious issue with the 2.2 Skyactiv-D and is well-documented across multiple markets. The cylinder head can crack, allowing coolant to escape before the temperature sensor registers a warning. Taiwan's government forced Mazda to offer a lifetime engine warranty on diesels due to this issue. Mazda Australia has replaced engines under extended warranty. In Europe, outcomes vary by dealer and goodwill. A used replacement engine (typically €2,500-4,000) is often more cost-effective than head gasket repair, as the high compression ratio means reshaving the block often leads to repeat failure. The issue typically manifests between 80,000-150,000 km, though earlier failures have been documented. Pre-2015 models appear more susceptible. Always check coolant level history and look for any signs of coolant loss or white exhaust smoke.

The DPF regeneration cycle requires sustained driving at 80+ km/h for 20+ minutes. Cars doing frequent short trips under 10 km fail to complete regeneration, causing soot buildup. During incomplete regeneration, the ECU injects extra fuel into the exhaust stroke to raise temperatures, but this unburnt diesel passes the piston rings into the oil sump. Owners report oil level rising significantly between services. Diluted oil loses viscosity, which accelerates timing chain wear, camshaft wear, and oil pump chain degradation. Mazda issued a software update and revised dipstick for early models. Forced DPF regeneration at a dealer costs €200-300. DPF replacement runs €1,200-1,800. Prevention: regular motorway drives, check oil level monthly, use correct low-ash diesel oil (0W-30 ACEA C3).

The 2.2 Skyactiv-D achieves Euro 6 without AdBlue by using two EGR valves that are open most of the time. This aggressively recirculates exhaust gas, accelerating carbon deposit buildup on the intake valves, shutter valve, and manifold. Mazda Australia recalled 35,476 diesel vehicles (2012-2018) for carbon deposits in the intake shutter valve that could cause the valve to stick closed, leading to engine stalling. A full decoke at an independent garage costs €300-500; dealer quotes reach €1,000-1,500. In severe cases, carbon can reach and damage the turbocharger (€1,500-2,500 for turbo replacement). A software update was issued to prevent recurrence. Prevention: regular motorway driving, full-throttle pulls every 1-2 weeks, synthetic low-ash oil only.

The 2.2 Skyactiv-D uses a timing chain that can stretch, particularly when oil quality has degraded from DPF-related dilution. Forum owners report symptoms between 100,000-140,000 km: rattling on startup, check engine lights with camshaft timing codes. The oil pump chain runs alongside the timing chain and shares the same wear pattern. Multiple owners report replacing only the timing chain and then suffering catastrophic oil pump failure within weeks. Always replace both chains, tensioners, guides, and sprockets together. Mazda redesigned the oil pump chain (the new version has 5 yellow links vs. the original 3). Dealer quotes reach €2,000-2,500; independent shops €1,200-1,500. Neglected oil changes and oil dilution are the primary accelerators. Monitoring via OBD2 with FORScan can track camshaft differential angle as an early warning indicator.

Mazda recalled approximately 460,000 CX-5, Mazda 3, and Mazda 6 diesel vehicles worldwide in February 2017 for faulty injector mounting nut torque. Incorrect fastening force caused too much pressure on the injector gasket, allowing fuel to blow through the cylinder head and carbonize the engine oil. Additionally, early engines used injector washers of incorrect material. Beyond the recall issue, the piezo injectors have a finite lifespan and may need replacement around 150,000-200,000 km. Symptoms include rough idle, loss of power, fuel smell, and black smoke. Cleaning and replacing seals costs €800-1,200; full injector replacement for all four runs €1,500-2,200. Verify the 2017 injector recall has been completed before purchase.

Oil contaminated with soot from DPF regeneration can block the internal oil strainer, triggering P055F and P0524 error codes and red oil pressure warning lights. The strainer part itself costs only around €25, but replacing it requires significant engine dismantling: oil sump removal, oil pump removal, and pump disassembly to access the strainer. Mazda dealer quotes for this work run €1,200-1,600 in the UK; independent specialists can do it for €400-800. This issue is more common on cars that have suffered oil dilution from incomplete DPF regeneration cycles. Regular oil changes with correct specification oil are the best prevention.

A well-documented recurring issue across all CX-5 generations. Mazda has issued TSBs for folding mirrors since 2013 without resolving the root cause. The internal plastic gears degrade from repeated use and moisture ingress. Mirrors initially work intermittently before failing completely, with one failing first and the other following. Dealer replacement of a full mirror assembly costs €400-600. Aftermarket repair kits with upgraded metal gears are available for €15-30 and can be fitted DIY or by a local garage for under €100 total. Mazda UK has offered goodwill replacements on cars under 5 years old. Workaround: disable auto-fold function to extend lifespan.

Owners report cracks appearing spontaneously, often starting near the top center or driver's side, without any stone impact. Replacement technicians have confirmed these as stress fractures rather than impact damage. The cause is likely the frame design putting excessive stress on the glass, or Mazda using thinner glass to reduce weight as part of their SKYACTIV weight-saving strategy. Mazda dealers often deny warranty claims by blaming rock damage. Mazda Taiwan acknowledged the issue and extended windscreen warranty to cover free replacement. OEM replacement with sensor recalibration costs €500-800; aftermarket glass (without sensors) runs €300-500 but may require additional calibration. Check for existing cracks carefully before purchase.
