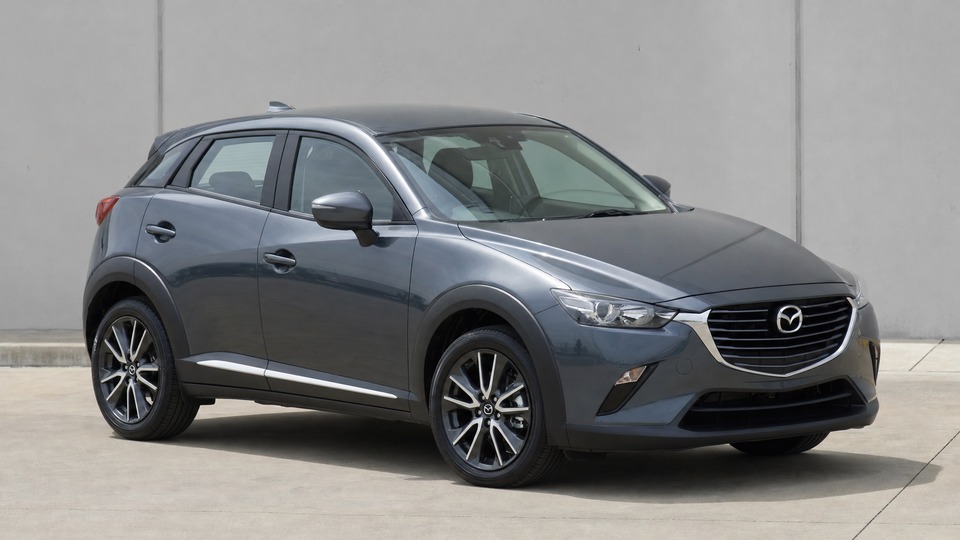

Mazda CX-3 1.8 Skyactiv-D DK

The 1.8 Skyactiv-D does not use AdBlue/SCR to reduce NOx emissions. Instead, Mazda relies on heavy EGR (exhaust gas recirculation), routing exhaust gases back through the intake manifold. This causes significant carbon and soot buildup over time, particularly on cars driven predominantly on short trips. After 2017, Mazda's emissions software update increased the EGR valve open time, accelerating soot recirculation. Symptoms include reduced power, rough idle, increased fuel consumption, and eventually limp mode. Cleaning the EGR valve and intake manifold costs €400-600 at an independent specialist. If the valve itself needs replacing, expect €600-1,200 including labor. Owners who regularly drive at highway speeds for 30+ minutes report significantly less buildup. Some owners have found that adding injector cleaner every 4th tank of diesel helps stabilize the situation.

DPF issues are widely reported on Mazda Skyactiv-D engines. The extra soot from heavy EGR use fills the DPF faster than in comparable diesels. Owners on CX-3 forums report regeneration intervals dropping from every 220 km to every 100 km, or even every 20-30 km in severe cases. When the DPF cannot regenerate properly, the car enters limp mode with warning lights (traction control, smart city brake, tire pressure). A forced regeneration at a dealer or specialist costs €100-200. Professional DPF cleaning costs €300-500. If the filter is beyond cleaning and needs replacement, expect €1,200-2,000 with labor. Prevention is key: regular motorway driving at 2,000+ rpm for 20-30 minutes ensures complete regeneration. One owner reported that after cleaning the intake manifold and electronically disabling the EGR valve, regeneration intervals returned to every 400-450 km.

During DPF regeneration, the engine injects extra diesel late in the combustion cycle to raise exhaust temperatures. Some of this fuel seeps past the piston rings into the sump, raising the oil level and diluting the lubricant. This is documented across all Mazda Skyactiv-D engines. Mazda's low-compression design leads to more frequent post-injection events compared to conventional diesels, which amplifies this issue. On short trips where regeneration cannot complete, fuel accumulation is worse. Diluted oil loses its lubricating properties, risking accelerated wear to bearings, camshafts, and cylinder walls. Mazda recommends checking the oil level monthly and changing oil at no more than 12,000 km or 12 months with ACEA C3 low-ash oil. Some specialists recommend shortening the interval to 8,000-10,000 km. If fuel contamination is detected early, an oil change costs €200-300. If bearing or camshaft damage has occurred from prolonged dilution, repair costs can reach €1,000-1,500.

The common rail injectors use copper sealing washers that degrade over time. When seals fail, combustion gases bypass into the valve cover area, depositing carbon that eventually reaches the oil sump and can block the oil pump strainer. Mazda added injector seal replacement to the maintenance schedule at 120,000 km, but seals can deteriorate earlier, particularly on cars with frequent DPF regeneration. Separately, there is a known issue with some Denso injectors having a faulty spray pattern that Mazda has been reluctant to formally acknowledge. A service bulletin was issued to dealers on how to check and replace affected injectors. Replacing all four injector seals costs €300-500 at a specialist. Individual injector replacement runs €400-600 per unit, or €1,200-1,800 for a full set of four with recoding.

The 1.8 Skyactiv-D uses a variable-geometry turbocharger with an electronically controlled actuator. Carbon buildup can cause the actuator to stick, particularly on cars driven gently or only on short trips. Symptoms include a check engine light with turbocharger speed sensor error codes (P2580/P2581), loss of boost pressure, and limp mode. Mazda's initial fix is a PCM reprogram with updated control logic. If the issue persists, the speed sensor assembly may need replacement (€400-600 with labor). In cases where turbo internals are damaged, a full turbo replacement runs €1,200-1,800, though remanufactured units are available for around €500-700 plus fitting.

The 1.8 diesel is paired exclusively with a 6-speed manual gearbox and a dual mass flywheel. The 270 Nm of torque places significant stress on the DMF over time. CX-3 diesel owners on UK forums report DMF failure as early as 60,000 km, with rattling at idle and judder on clutch engagement being the first symptoms. The flywheel and clutch should be replaced together. Parts cost €600-900 for the DMF and €200-350 for the clutch kit. Labor adds another €300-500 due to gearbox removal. Mazda has not offered goodwill repairs for out-of-warranty DMF failures.

A recall (Mazda 6023G) covers 2016-2021 CX-3 models for a wiring harness fastener design flaw in the tailgate. Normal vibrations from driving or closing the liftgate cause connector pin wear, resulting in high electrical resistance and image distortion. Mazda's fix involves adding a wiring harness fastening seal or replacing the camera unit entirely, free of charge under the recall. If not covered, aftermarket camera replacement runs €150-250, or dealer repair at €300-400. Most cars should already have this recall completed.
