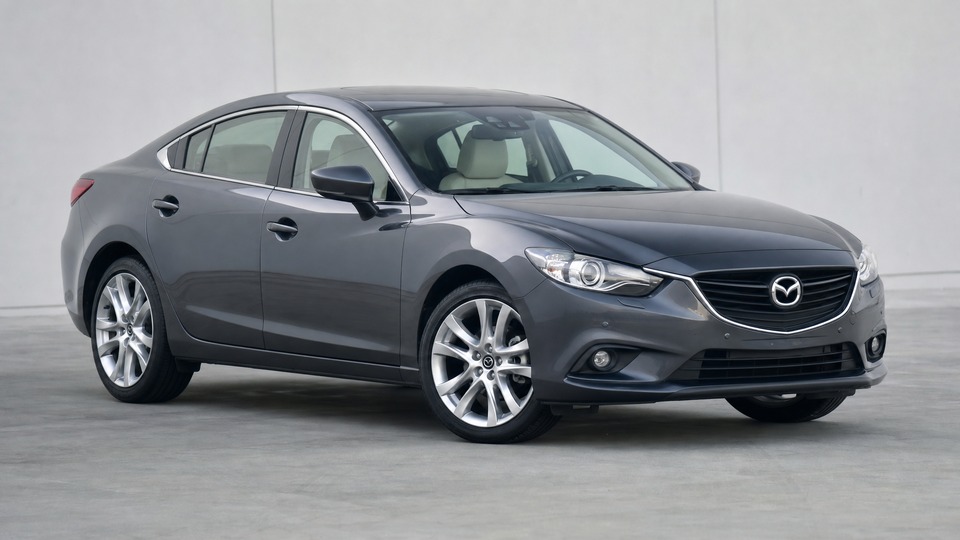

Mazda 6 2.2 Skyactiv-D GJ

This is the most serious issue with the 2.2 Skyactiv-D engine. The aluminium cylinder head can develop cracks or the gasket can fail, allowing coolant to leak internally. The high 14:1 compression ratio places substantial thermal stress on the head. Reported cases cluster between 80,000 and 150,000 km. Symptoms can appear suddenly: coolant loss with no visible leak, white exhaust smoke, or milky residue under the oil filler cap. In some cases the temperature gauge does not rise in time to warn the driver. Mazda Australia and Taiwan extended warranty coverage for this defect, but European coverage depends on individual dealer goodwill. A used replacement engine (2,500-4,000 euros) is often more cost-effective than head gasket repair alone because a resurfaced head may fail again due to the high compression design. Pre-2016 models appear more susceptible than later production, but the fundamental design is unchanged. Always inspect coolant level and condition carefully.

The DPF regeneration cycle requires sustained driving at 80+ km/h for approximately 20 minutes. Cars driven mostly on short urban trips fail to complete regeneration, causing soot buildup. During incomplete regeneration, extra fuel injected into the combustion chamber passes the piston rings into the sump, raising the oil level and diluting its viscosity. Diluted oil accelerates timing chain wear, camshaft wear, and can block the oil strainer. Mazda issued software updates and a revised dipstick for early models. Cars accumulating fewer than 15,000 km per year on predominantly urban routes experience DPF issues at three to four times the rate of motorway-driven cars. A forced dealer regeneration costs 200-300 euros. Professional DPF cleaning runs 400-600 euros. Full DPF replacement with aftermarket part and fitting costs 1,000-1,800 euros. Prevention: regular motorway drives, monthly dipstick checks, and use only 0W-30 ACEA C3 low-ash oil.

The 2.2 Skyactiv-D uses two EGR valves that recirculate exhaust gas aggressively to meet emissions standards. By around 100,000 km, a specialist Mazda garage reports finding approximately 2 kg of carbon in the intake manifold, runners, and valve areas. Symptoms include power loss, turbo lag, rough idle, and occasional stalling. The intake shutter valve can stick from soot deposits, which is the subject of a European recall (2012-2018 production). A full intake strip and clean at an independent specialist costs 400-600 euros. Dealer quotes typically reach 800-1,200 euros. Walnut blasting alone is not sufficient for this engine, as the carbon solidifies and requires manual removal. In severe cases, carbon debris enters the turbocharger, pushing costs to 2,000-2,500 euros if the turbo also needs replacement. Models from 2018 onward with AdBlue/SCR rely slightly less on EGR, reducing the rate of buildup.

The timing chain can stretch, particularly when oil quality has degraded from DPF-related fuel dilution or extended service intervals. Symptoms typically appear between 80,000 and 130,000 km: metallic rattling for the first few seconds after a cold start, eventually progressing to check engine lights with camshaft timing codes. The oil pump chain runs alongside the timing chain and shares the same wear pattern. Both chains, tensioners, guides, and sprockets should always be replaced together. Mazda redesigned the oil pump chain (new version has 5 yellow links versus the original 3 yellow links). Independent specialists charge 1,000-1,500 euros for the complete job. Dealer quotes reach 1,800-2,500 euros. Pre-2016 models with the older tensioner design are more susceptible. Regular oil changes with correct specification oil at no more than 15,000 km intervals significantly reduce the risk.

The copper seals on the fuel injectors degrade over time, allowing hot combustion gases to leak past and contaminate the engine oil. This produces hard carbon deposits that can block the oil strainer, leading to low oil pressure warnings. Some early-production cars (2012-2014) were fitted with injector nozzles that caused the DPF to regenerate excessively, worsening oil dilution. Mazda added injector seal replacement to the 75,000 km service schedule. New injectors cost 250-350 euros each, with four required. Complete injector replacement at a dealer runs 2,500-3,500 euros. At a specialist, injector cleaning and seal replacement costs 500-800 euros. Injectors require coding with diagnostic software after replacement. Persistent diesel smell from the engine bay or rapidly rising oil level between services are warning signs.

The twin-turbo system uses a diverter flap to direct exhaust gas between the small and large turbos. A pin in the actuator mechanism can break, causing the flap to stick. This triggers limp mode and reduced power. The repair can be as simple as replacing just the diverter flap actuator, which bolts on externally and costs around 100-150 euros including fitting. However, if the turbocharger internals are damaged from carbon ingestion or oil starvation, full turbo replacement costs 1,500-2,000 euros. Mazda revised the turbo design for models from late 2016 onward, which largely resolved this issue. Earlier cars (2012-2016) are more commonly affected.

From 2018, the Mazda 6 diesel gained an SCR system with AdBlue to meet Euro 6d-TEMP. The AdBlue tank assembly contains a pump, heater, temperature sensor, and level sensor, and any of these can trigger an SCR fault. NOx sensors (two fitted, upstream and downstream of the SCR catalyst) fail at a higher rate than expected, typically around 120,000-140,000 km. Individual NOx sensor replacement costs 300-500 euros. The AdBlue tank and pump assembly is sold as one unit by Mazda, with dealer quotes reaching 1,200-1,500 euros for the complete replacement. A wiring harness recall affects 2018-2020 models where the harness can chafe against the tank cover. If the system detects a fault, it progressively limits engine power and can eventually prevent restart. Using only ISO 22241-1 compliant AdBlue and keeping the system topped up prevents many issues.

Manual transmission Mazda 6 diesels use a dual-mass flywheel to absorb the high torque pulses from the diesel engine. The DMF can develop excessive play, causing a distinct rattling at idle (different from timing chain rattle) and judder during clutch engagement at low RPM. This typically appears between 120,000 and 180,000 km. Mazda is the sole OEM supplier for the replacement DMF, which limits aftermarket options. A complete clutch and DMF replacement costs 1,000-1,800 euros at an independent garage, with the majority of the cost being parts and the labour required to remove the gearbox. Automatic transmission models are not affected by this issue.
