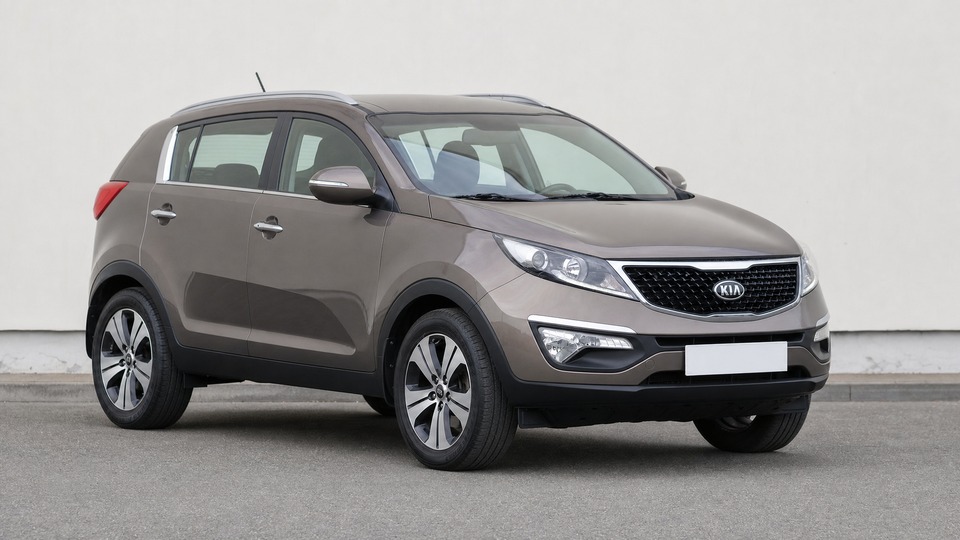

Kia Sportage 2.0 CRDi SL

The DPF on the D4HA 2.0 CRDi requires exhaust temperatures above 600 degrees Celsius to burn off accumulated soot. Cars driven primarily on short urban trips under 15 km rarely reach these temperatures, causing the filter to clog progressively. Symptoms include the DPF warning light, reduced power, and eventually limp mode. A forced regeneration at a dealer costs around 150-250 euros. If the filter is too heavily blocked, professional DPF cleaning costs 300-500 euros, while full replacement with aftermarket filter runs 800-1,200 euros (genuine Kia part closer to 2,000-2,500 euros including fitting). Regular motorway driving of 30+ minutes every 1-2 weeks significantly reduces this risk.

The D4HA uses an electronically-controlled EGR valve that sends feedback to the ECU. Carbon buildup from exhaust gas recirculation gradually restricts the valve, causing rough idle, reduced power, and the engine management light to illuminate. If the valve sticks or cannot achieve its target position, the ECU puts the car into limp mode immediately. Cleaning costs 150-250 euros at an independent specialist. Full EGR valve replacement runs 400-600 euros for aftermarket or 700-900 euros for genuine Kia parts including labour. Typically becomes problematic between 80,000-150,000 km depending on driving pattern.

AWD-equipped Sportage SL models produced from May 2010 through March 2013 were fitted with an older-version actuator motor and harness that are prone to failure. Symptoms include vibration from the rear at 45-80 km/h, rumbling noise when on full steering lock, and eventually complete loss of AWD function with a MIL warning light (DTCs P1820-P1824). Kia released a TSB covering replacement with updated actuator part number 47800-3B520 and new cable harness 47891-3B310. Repair cost at a dealer is approximately 1,200-2,000 euros including parts and labour. Independent shops charge 800-1,300 euros. Front-wheel-drive models are not affected.

Manual gearbox Sportage SL models use a dual mass flywheel to dampen engine vibrations. The DMF typically starts showing wear between 80,000-130,000 km, particularly on the higher-output 184 hp AWD variant which puts more stress on the drivetrain. Symptoms include a distinctive rattling at idle (disappears when clutch is depressed), clutch judder on takeoff, and difficulty shifting smoothly. The front subframe must be removed to access the gearbox, making this a 6+ hour job. Kia classes the DMF as a wear item, so it is not covered under warranty. Replacement with a quality LUK kit (DMF + clutch + release bearing) costs 1,000-1,500 euros at independent shops or 1,800-2,200 euros at a Kia dealer.

The D4HA uses an electronically-controlled wastegate actuator on the turbocharger. Over time, carbon deposits and heat cycling cause the actuator to stiffen and move sluggishly. This results in imprecise boost control, occasional overboost or underboost conditions, and eventually engine management warnings. If caught early, the actuator can sometimes be cleaned and recalibrated. Actuator replacement alone costs 400-600 euros. If the turbocharger itself is damaged due to prolonged actuator issues or oil starvation, full turbo replacement runs 1,000-1,500 euros including fitting. The turbo's expected lifespan on this engine is 100,000-150,000 km with proper oil changes.

Kia recalled 2010-2013 Sportage models because the Hydraulic Electronic Control Unit (HECU) in the ABS system can develop an internal electrical short circuit, potentially causing an engine compartment fire while driving or even while parked. This is a free recall repair (SC284) where the dealer replaces the HECU fuse. However, if the recall has not been completed, this is a serious safety risk. Always verify with a Kia dealer using the VIN that this recall has been addressed before purchasing. Kia advised affected owners to park outside and away from structures until the repair was completed.

The copper crush washers that seal the diesel injectors to the cylinder head deteriorate over time, particularly on higher-mileage cars beyond 100,000 km. Signs include black carbon deposits around the injector bases, rough cold starts, and a slight diesel smell from the engine bay. Replacing all four injector seals is a relatively straightforward job costing 300-500 euros. If injectors themselves need replacement due to wear or poor spray pattern, each injector costs 250-350 euros, with a full set running 1,000-1,200 euros including labour.
