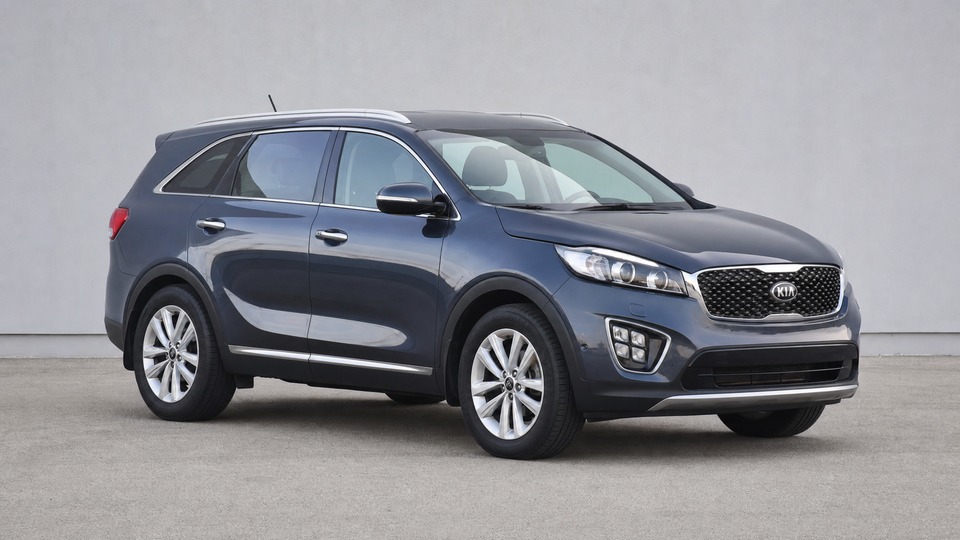

Kia Sorento 2.2 CRDi UM

The D4HB engine's EGR system is prone to carbon buildup, particularly when the car is driven mainly on short urban trips that prevent exhaust temperatures from reaching levels needed to burn off deposits. Symptoms include rough idle, loss of power, increased emissions, and the engine management light illuminating. Cleaning the EGR valve at an independent workshop costs around €200-400 and may provide a temporary fix, but replacement including the EGR cooler runs €500-1,200 depending on workshop rates and whether the cooler is also affected. The UM generation added an EGR cooler which itself can become clogged or develop internal leaks. Many owners report needing EGR attention between 80,000 and 130,000 km, with predominantly urban-driven cars affected earlier.

The DPF requires sustained driving at motorway speeds (above 60 km/h for at least 20-30 minutes) to reach the temperatures needed for passive and active regeneration cycles. Repeated short trips prevent regeneration, causing progressive soot accumulation. Warning signs include the DPF light illuminating, reduced performance, and increased fuel consumption. A forced regeneration at a dealer costs around €150-300. If the filter is heavily clogged, professional cleaning costs €400-800, while replacement costs €1,500-2,500. Later UM models (2017+) have improved DPF management software that handles regeneration more effectively. Owners who regularly combine their Sorento with longer drives typically report no DPF issues even past 200,000 km.

The electronically controlled variable geometry turbocharger (e-VGT) uses an actuator to adjust the vane geometry. Over time, carbon buildup from exhaust gases can cause the vanes or actuator mechanism to stick, particularly in cars that are driven gently or on short trips. Symptoms include intermittent or permanent limp mode, loss of boost, and an EPC warning light. A dealer diagnostic will confirm actuator faults. In many cases, a specialist can repair or replace just the actuator for €500-800. If the turbo internals are also damaged, a complete turbo replacement costs €1,200-2,000. Using quality fuel and regular spirited driving helps keep the VGT mechanism clean. A small filter on the solenoid exhaust can also become blocked and should be checked.

On AWD-equipped Sorentos, the transfer case coupling splines can wear and eventually strip, particularly if the transfer case fluid is not changed at regular intervals. The differential carrier that sends power from the automatic gearbox to the transfer case is the typical failure point. When the splines strip, the rear axle loses drive entirely. This issue is shared across the Hyundai/Kia AWD platform and is well-documented on both Sorento and Santa Fe forums. Repair involves replacing the transfer case coupling, which costs €800-1,500 at an independent specialist, or up to €2,500 at a dealer. Prevention is straightforward: change the transfer case fluid every 40,000-60,000 km. Cars with no evidence of transfer case maintenance in the service history are a significantly higher risk.

Manual-gearbox UM Sorentos use a dual mass flywheel that absorbs engine vibrations before they reach the gearbox. The DMF can wear prematurely, particularly with heavy towing, urban stop-start driving, or if the driver frequently lugs the engine at low RPM. Symptoms include a rattling noise at idle (especially with the clutch pedal depressed), vibration through the pedals, and in advanced cases, difficulty engaging gears. Forum reports show failures as early as 40,000 km in severe cases, though 80,000-120,000 km is more typical. Replacement requires removing the gearbox and is usually combined with a new clutch kit. Total cost is approximately €1,200-2,500 depending on workshop and whether OEM or aftermarket parts are used. Automatic models are not affected by this issue.

The Hydraulic Electronic Control Unit (HECU), which contains the ABS module, can develop an internal brake fluid leak. This fluid can cause an electrical short on the circuit board, leading to a fire in the engine compartment, even when the vehicle is parked and turned off. This affects 2014-2020 Sorentos and is the subject of a major recall across Hyundai and Kia vehicles globally. The repair involves inspection and, if a leak is found, replacement of the HECU along with installation of a lower-amperage ABS fuse to reduce fire risk. This recall work is performed free of charge by Kia dealers. This is the single most important item to verify before purchasing any UM Sorento. If the recall has not been completed, do not purchase the vehicle until it is done.

The PTC (positive temperature coefficient) auxiliary cabin heater found on diesel UM Sorentos can overheat due to a damaged connector terminal. In extreme cases, the connector can melt, posing a fire risk. This is the subject of a recall affecting 2014-2020 diesel Sorentos. The remedy involves a software upgrade to the climate control system (FATC) and inspection of the PTC heater connector. If the connector is found to be damaged, the PTC heater and wiring connector are replaced free of charge. Verify completion with a Kia dealer using the VIN.

Some 2015-2018 UM Sorentos develop a notchy or sticky feel in the steering, where the wheel takes effort to turn and then releases suddenly, causing an oversteer reaction. Kia issued a TSB for an MDPS ECU software upgrade for vehicles produced from October 2014 through August 2017 to improve steering logic. In some cases, the software update resolved the issue; in others, the steering rack itself needed replacement. Kia extended the MDPS warranty to 15 years / 150,000 miles for vehicles where the warning light illuminates. Verify whether the software update has been applied and test the steering carefully during a test drive, particularly at low speeds in parking maneuvers.
