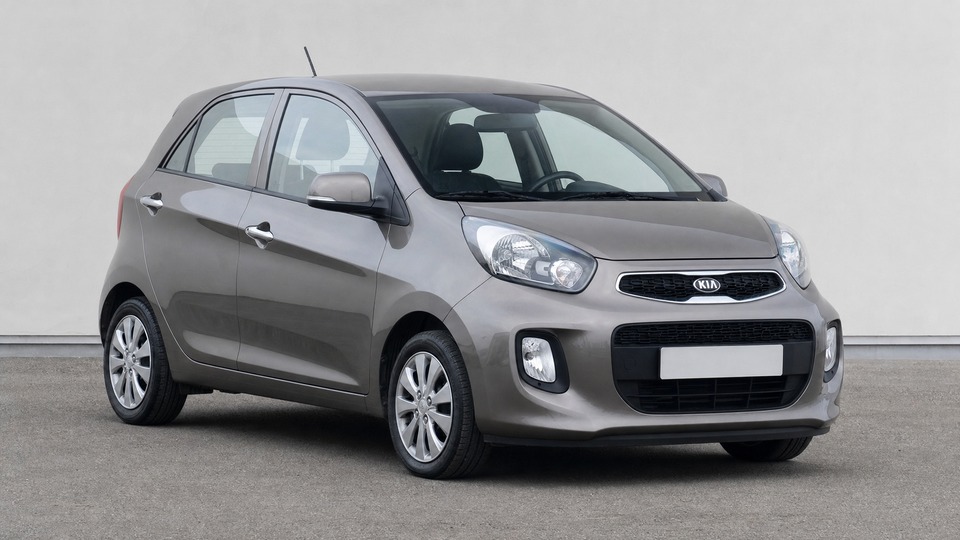

Kia Picanto 1.2 JA

The front anti-roll bar drop links and lower arm bushes are known weak points on the Picanto JA. Forum reports consistently describe clunking noises over speed bumps and rough surfaces, typically appearing from 30,000-60,000 km onwards. The lightweight construction and short wheelbase mean suspension components work harder than on larger cars. Drop link replacement is inexpensive at €80-150 per pair including labour. If the lower arm bushes have also deteriorated, replacing both front arms costs €200-400 at an independent shop. In some cases, Kia OEM stabiliser links have failed in under 40,000 km. While this is more of a wear item than a design flaw, it appears earlier on the Picanto than on most competitors.

AC failures are a recurring theme on Picanto JA forums, with complaints often appearing between 40,000 and 80,000 km. The most common root cause is a faulty solenoid coil on the compressor coupling or a blown 10A AC fuse caused by an electrical short in the coupling. In some cases, the compressor itself fails internally, producing rattling or grinding noises before AC output drops. An aftermarket compressor costs around €200-350, with labour adding €150-300 due to the need to evacuate and recharge the refrigerant system. The dryer must also be replaced when fitting a new compressor. Many examples within the 7-year warranty period had this resolved at no cost through Kia dealers.

The G4LA 1.2 engine uses a timing chain with a hydraulic tensioner. The tensioner can lose oil pressure after the car sits overnight, producing a brief metallic rattle for 1-3 seconds on cold start. Kia states this is normal behaviour as long as it remains brief. The 2020 facelift brought a revised tensioner design and updated oil specification. At higher mileages (80,000-120,000 km), genuine tensioner wear can develop and the rattle persists longer. Ignoring it risks catastrophic chain skip and valve-piston contact. Replacement of the chain, tensioner, guides, and sprockets costs €500-800 at an independent shop or €800-1,200 at a Kia dealer. Regular oil changes with the correct specification oil every 15,000 km significantly reduce this risk.

The 1.2 Picanto has widely reported clutch judder issues, particularly noticeable when pulling away from cold or after the car has sat overnight in damp conditions. Kia acknowledged the problem on a number of Picantos and investigated, though the fix has been inconsistent. Some owners have had two warranty clutch replacements without improvement. The issue appears related to condensation on the friction surfaces and certain clutch material batches. In many cases the judder disappears after a mile or two of driving. A full clutch replacement costs €350-450 at an independent shop or €500-650 at a Kia dealer. Many 2017-2020 cars had this resolved under warranty.

Rear brake caliper slide pins can seize due to water ingress and corrosion, particularly in wet climates. When this happens, the brake pads remain partially applied, causing drag, overheating, and uneven pad wear. Some owners report the rear wheels getting very hot after driving. In earlier Picanto generations, Kia issued a formal recall for this issue. On the JA, regular lubrication of caliper slide pins during brake services prevents the problem. If calipers are already seized, cleaning and greasing costs around €100 per axle. If the caliper body is damaged, replacement runs €150-300 per side including labour.

The 1.2-litre four-cylinder has four individual ignition coils, and individual coil failure is an occasional complaint. Symptoms include rough idling, misfiring under load, and check engine light with misfire codes. Moisture ingress during wet weather is a contributing factor on some cars. A single aftermarket coil costs €20-40, with OEM coils at €50-80. Labour is straightforward as the coils are easily accessible. The four-cylinder layout means one failing coil is less catastrophic than on a three-cylinder engine, where one dead cylinder represents a third of total power.

Multiple Picanto JA owners report interior trim rattles, particularly from the B-pillar area, dashboard, and door panels. The issue tends to worsen with age and mileage as clips loosen. Sources of noise include the seatbelt height adjuster mechanism, loose trim clips, and weather strip vibration. Adding sound-deadening material, felt washers to door clips, or foam tape between seams resolves most rattles. This is a build quality issue rather than a mechanical concern, but it affects ownership satisfaction on a car where road and engine noise are already noticeable.
