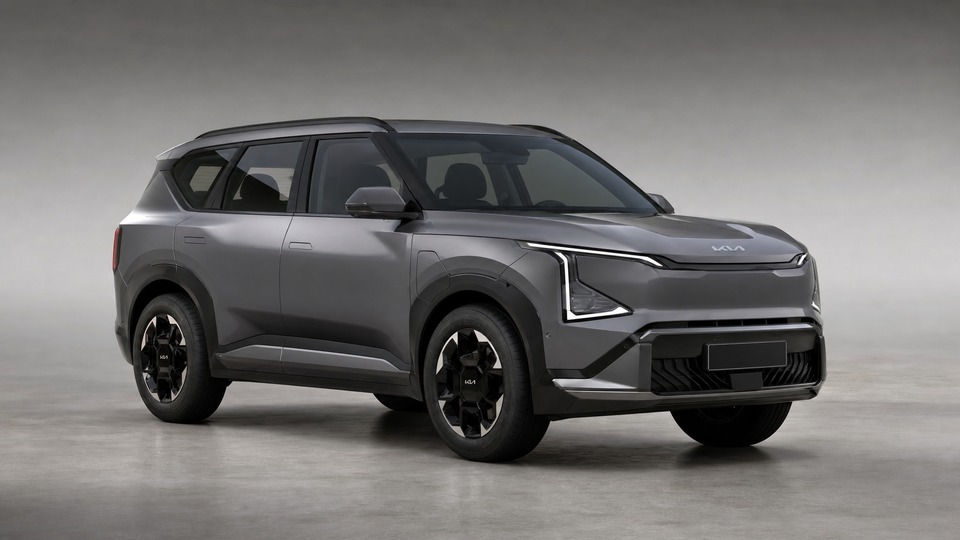

Kia EV5 81 kWh FWD Mk1 Reliability

Common Problems

LDC/ICCU-related 12V system failure

€1,500 - 3,0001 of 6

Low-voltage DC converter stops charging the 12V battery, causing progressive loss of vehicle systems · more· less

The EV5 uses a 400V variant of Kia's electric architecture, which includes an integrated charging control unit responsible for converting high-voltage DC to 12V to power auxiliary systems. On the related 800V E-GMP platform (EV6, Ioniq 5), ICCU failures affecting 2-10% of owners have been widely documented, caused by MOSFET degradation from cumulative thermal stress. The EV3 (also 400V) has shown early reports of similar issues. While the EV5 is too new for reliable failure statistics, it shares architectural DNA with affected models. Symptoms include repeated 12V battery death, 'Check EV system' warnings, and eventual complete shutdown. Kia has extended the ICCU warranty to 15 years/300,000 km on older E-GMP models and may extend similar coverage to newer 400V cars. Replacement cost out of warranty runs €1,500-3,000 including labor.

12V battery drain

€150 - 4002 of 6

12V battery drains flat within days, even after replacement, leaving the car unable to start · more· less

Multiple EV5 owners have reported repeated 12V battery death, requiring roadside assistance jump-starts. One owner needed three callouts within two days, even after the 12V battery was replaced. Kia dealerships have identified the Kia Connect app as a potential cause: uninstalling the app resolved the drain in some cases. Kia head office has acknowledged a potential issue with the app's interaction with the vehicle's sleep mode. Other drain sources include ambient lighting, dashcams, and the car remaining in a semi-awake state. If the underlying cause is the LDC/ICCU (see above), battery replacement alone will not fix the problem. A standard 12V battery replacement costs €100-200, while some owners opt for more resilient lithium-ion 12V batteries at around €350.

Display screen blanking while driving

€0 - 8003 of 6

Dashboard screens go black for 5-10 seconds mid-drive as the infotainment system reboots · more· less

Some EV5 owners have reported both screens briefly going blank while driving, as if the system were rebooting. The episode typically lasts 5-10 seconds, during which the driver loses speed display and navigation. The vehicle continues to drive normally since the drivetrain operates on separate processors. The cause appears to be software-related, possibly triggered by OTA updates or CAN bus communication errors. Most cases resolve with a system reset (pinhole button) or dealer software reflash at no cost. If the head unit hardware fails, replacement costs approximately €600-800. Software updates are expected to address this issue as the model matures.

AC charger compatibility faults

€0 - 3004 of 6

Older AC charging stations trip or fault during the handshake when the EV5 connects · more· less

Some EV5 owners have reported that older AC charging stations, particularly Schneider EVlink Parking units (22 kW), trip during the charging handshake. The charger begins the handshake, then faults or trips out, while other EVs charge on the same unit without issues. This appears to be a compatibility issue between the EV5's stricter charging profile and older charger firmware, rather than a vehicle defect. Newer charging stations work without issues. DC fast charging is unaffected. A dealer inspection to rule out onboard charger faults costs €100-300, but in most cases the charger, not the car, is the issue.

DC fast charging speed inconsistency

€0 - 2005 of 6

DC charging sometimes delivers only 50 kW instead of the rated 150 kW maximum · more· less

The EV5 is rated for 150 kW DC fast charging, and some owners consistently achieve 140-145 kW. However, others have reported sessions stuck at 50-70 kW regardless of charger capacity. The most common cause is the battery not preconditioning before the session. The EV5 has battery preconditioning (activated when navigation is set to a fast charger), but it can be inadvertently disabled if the AC or DC charge limit has been changed through the Kia Connect app, which unchecks the preconditioning setting in the car. Cold battery temperatures without preconditioning can limit charging to 60-70 kW for the first 15-20 minutes. This is a usage issue rather than a defect, but it catches many owners off guard.

Front suspension noise over rough surfaces

€300 - 8006 of 6

Clunking or rattling from front suspension, typically from sway bar end links or strut bearings · more· less

EV buyers transitioning from lighter petrol cars sometimes notice more suspension noise in the EV5, which weighs approximately 1,900 kg due to the battery pack. Forum reports across Kia's EV range mention front suspension rattles and clunks over potholes and speed bumps. The most common culprits are sway bar end links (€50-100 per side) and strut bearings (€100-200 per side). While not unique to the EV5, the heavier battery places additional stress on these components. A pair of front sway bar end links costs €100-200 including labor at an independent shop, or €300-500 at a Kia dealer. Strut bearing replacement runs €200-400 per side.

Promising but unproven, with the 400V charging system as the main unknown

The Kia EV5 is too new for definitive reliability conclusions, with European deliveries beginning in late 2025. The 81.4 kWh NMC battery and 160 kW front motor are straightforward in design, and Kia's 7-year/150,000 km warranty provides substantial coverage for first and even second owners. The main concern is the LDC/ICCU charging control unit, which has caused significant problems on Kia and Hyundai's 800V E-GMP models and shows early signs on 400V variants like the EV3. Kia has responded with a 15-year ICCU warranty extension on older models, and similar coverage may apply to newer cars. Beyond the charging system, reported issues are typical of any new model launch: software glitches, 12V battery drain, and charger compatibility niggles. The EV5 benefits from lessons learned on the EV6 and Ioniq 5. Verify all software updates are current and check 12V battery health before purchase.

Pre-Purchase Inspection Checklist

General checks

Service history
Complete Kia dealer records required to maintain the 7-year warranty. Verify servicing at correct intervals (every 15,000 km or 12 months).
Tires
Check tread depth, age (date codes), and uneven wear patterns. EV tires wear faster due to vehicle weight (approx. 1,900 kg) and instant torque.
Test drive
Drive for at least 30 minutes including varied speeds. Listen for suspension noises over bumps and check for interior rattles in the quiet EV cabin.
Charging test
Test both AC and DC charging during your visit. Verify the charging port opens and closes properly and that DC charging reaches at least 100 kW.

Specific for this vehicle

Check 12V battery voltage and health
Ask the dealer or use a multimeter to check 12V battery voltage (should read 12.4V+ when car is off). Ask if the car has needed jump-starts. Repeated 12V death suggests an LDC/ICCU problem.
Verify all software updates are installed
The EV5 receives OTA updates. Ask the dealer to confirm the infotainment and vehicle system software are on the latest versions. Early software versions have known display blanking issues.
Request battery State of Health (SOH) report
Only a Kia dealer diagnostic system can provide an accurate SOH reading. On a car this new, expect 97%+ capacity. Anything below 95% on a low-mileage car warrants investigation.

+ 2 more checksShow less

Test battery preconditioning before DC charging
Set the navigation to a DC fast charger and verify the battery preconditioning activates (a snowflake icon appears). Without preconditioning, cold-weather charging speeds drop significantly.
Check for display blanking during the test drive
Watch both screens during the test drive for any brief blackouts or reboots. If it occurs, ask the dealer to perform a system reset and software update before purchase.

Recalls and Technical Service Bulletins

Second-row seat mounting bolts potentially missing (Canada, 313 units, spring 2026) Verify if applicable

Instrument display glitch from power management IC signal (China, 381 units, Apr 2026) Verify if applicable

The EV5 is very new to European markets. No Europe-specific recalls have been issued as of early 2026. Contact Kia with the VIN to verify the latest recall status, as new campaigns may be announced as the model matures. Also check whether any ICCU-related service campaigns from the EV6/EV3 apply to the EV5's 400V system.

Warranty Status

Factory warranty (7 years / 150,000 km) Active on all EV5s (2025+ production)

High-voltage battery (8 years / 160,000 km, 70% capacity) Active on all EV5s

ICCU extended warranty (15 years / 300,000 km) Confirmed for EV6; check applicability for EV5 with Kia

Paint warranty 5 years / 100,000 km from first registration

Kia's 7-year/150,000 km warranty is among the best in Europe and transfers to subsequent owners based on the original registration date. This means even a used EV5 purchased in 2028 would still have several years of factory coverage remaining. The 8-year high-voltage battery warranty guarantees at least 70% capacity. Verify with Kia whether the 15-year ICCU warranty extension (currently confirmed for EV6) also covers the EV5's 400V charging system.

Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.

This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
