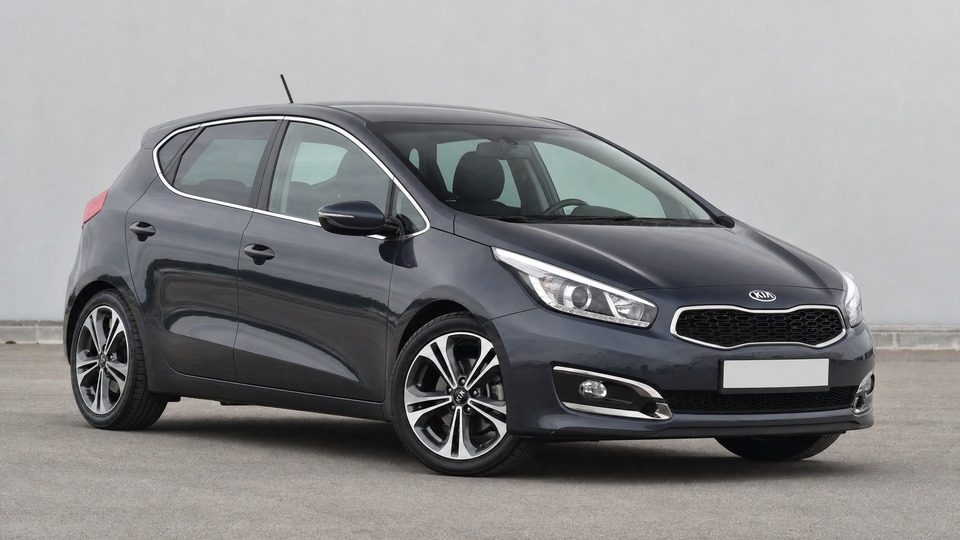

Kia Ceed 1.4 JD

This is the single most common electrical complaint on the JD Ceed. The LED strip integrated into the headlight housing is powered by a small circuit board (LED driver/inverter) that runs hot by design and degrades over time. Symptoms progress from intermittent flickering to complete failure of one or both DRL strips. Kia's only official fix is replacing the entire headlight assembly, which costs €350-600 per side at a dealer. However, aftermarket LED driver boards are available for around €30-50 each and can be fitted by drilling a small access hole in the headlight housing. This DIY or independent shop repair brings the total down to €100-200. The issue affects the entire 2012-2018 JD production run and is widespread enough that aftermarket repair kits have become a cottage industry. While not a safety concern in itself, failed DRLs will cause an MOT/TUV failure in most European countries. Kia acknowledged this as a known fault on some markets and covered repairs under goodwill for cars still within warranty, but all JD Ceeds are now well past the 7-year warranty period.

A minority of JD Ceed owners report the EPS warning light illuminating, accompanied by a sudden loss of power steering assistance. The most common root causes are the torque sensor inside the steering column, a corroded connector on the column wiring harness, or the EPS control module itself. An intermittent fault can sometimes be cleared with a diagnostic reset for €80-150, and cleaning corroded connectors may resolve the problem permanently. However, if the column-mounted EPS unit has failed internally, Kia only supplies it as a complete assembly. A dealer replacement runs €1,200-1,800 including labour. Independent specialists can sometimes source refurbished units for €400-600, and a handful of specialist firms in Europe offer sensor rebuild services for around €300-400. The issue is not as prevalent as on the earlier ED generation, but it remains a known weak point. Cars that have been exposed to heavy moisture or have corroded underbody harness connections are more susceptible. During a test drive, the steering should feel consistently light at parking speeds and progressive at higher speeds with no warning lights.

Front suspension wear is the most predictable maintenance issue on the JD Ceed. Anti-roll bar drop links typically start knocking between 60,000-80,000 km, producing a distinctive metallic clunk over small bumps that disappears when the steering wheel is turned slightly to one side (because turning loads the anti-roll bar). Drop links are cheap and straightforward to replace at €60-100 per side fitted at an independent garage. Lower control arm bushings wear next, typically between 80,000-120,000 km, causing a more diffuse knocking or creaking from the front end. Full lower arms with pressed-in bushings run €120-200 per side plus 1-2 hours labour. Top strut mounts can also deteriorate, adding a bearing-like creak when turning the wheel at standstill. This is normal wear rather than a design defect, but it is a near-certainty on any JD approaching 100,000 km, and aftermarket drop links from budget brands tend to last only 12-18 months before the problem returns. Genuine Kia or quality aftermarket parts (Lemforder, Meyle HD) are recommended for a lasting repair.

The G4FA engine uses individual coil-on-plug ignition, and coil failures become increasingly common past 80,000-100,000 km. A failing coil causes a misfire on one cylinder, producing rough idle, vibration, a flashing or steady check engine light (P0301-P0304 codes), and noticeably reduced power. Spark plugs should be replaced every 30,000-40,000 km on this engine. Running plugs beyond their service interval accelerates coil degradation because the coil has to generate higher voltages to jump a worn gap. A single OEM ignition coil costs €30-50, aftermarket equivalents around €15-25. A full set of four coils plus four spark plugs at an independent garage typically comes to €100-250 depending on brand. Ignoring a persistent misfire risks damaging the catalytic converter, which is a much more expensive repair (€600-1,200 for a replacement cat). Some owners report that coils fail repeatedly on the same cylinder, which can indicate a deeper problem such as an injector fault or a cracked insulator boot allowing moisture in.

The G4FA engine uses a timing chain that is designed to last the engine's lifetime, but the hydraulic tensioner relies on oil pressure to maintain chain tension. On higher-mileage cars (typically above 150,000 km), the tensioner's check valve can weaken, allowing oil pressure to bleed off overnight. This produces a metallic rattle or ticking sound for 5-30 seconds on cold start that disappears as oil pressure builds. Using the correct oil viscosity (usually 5W-30) and changing oil every 15,000 km or annually is the best prevention. The issue is far less common on the JD-era G4FA than on earlier Hyundai/Kia timing chain engines, and most well-maintained examples never need chain work. However, if the rattle persists for more than 30 seconds or is accompanied by a check engine light (timing correlation codes), the chain, tensioner, guides, and sprockets should all be replaced as a set. Parts run €150-300, and labour is 4-6 hours, bringing the total to €600-1,400 depending on whether a dealer or independent garage performs the work. Ignoring a stretched chain risks a timing skip, which can cause valve-to-piston contact and catastrophic engine damage on this interference engine.

Early JD production (2012-2014) has thinner underbody protection than later facelift models, and rust has been reported at several known areas: the rear wheel arch lip (often starting as bubbling paint a few centimetres below the fuel filler), the sill seam where the floorpan meets the side panels, and the rear subframe mounting points. Cars driven in northern or central European countries with heavy road salt exposure are most affected. Surface rust caught early can be treated and repainted for €150-300 per panel at a bodyshop. More advanced corrosion requiring metalwork at the arches or sills runs €500-800 per section. Kia's 12-year anti-perforation warranty covers structural rust-through (perforation from the inside out), and this warranty is transferable to subsequent owners. For 2012-2014 cars, the perforation warranty runs until 2024-2026, so the newest examples may still have some coverage. It is worth verifying the exact first-registration date with a Kia dealer if you find any rust. Later production cars (2015-2018 facelift) have improved corrosion protection and this issue is less prevalent.

The temperature blend door in the HVAC system is controlled by a small electric motor with plastic gears. Over time, the gears strip or the motor burns out, leaving the system stuck at one temperature (usually full heat) regardless of the dial or climate control setting. The first symptom is often a rapid clicking or knocking noise from behind the dashboard when changing temperature. The actuator itself is an inexpensive part (€30-60), but access on the JD Ceed requires partial dashboard disassembly, which adds 2-3 hours of labour. Total repair at an independent garage is typically €100-250, rising to €250-350 at a dealer. On dual-zone climate control cars, each side has its own actuator, so failure on one side does not affect the other. This is not unique to the Ceed and is a common wear item across many Kia and Hyundai models of this era.
