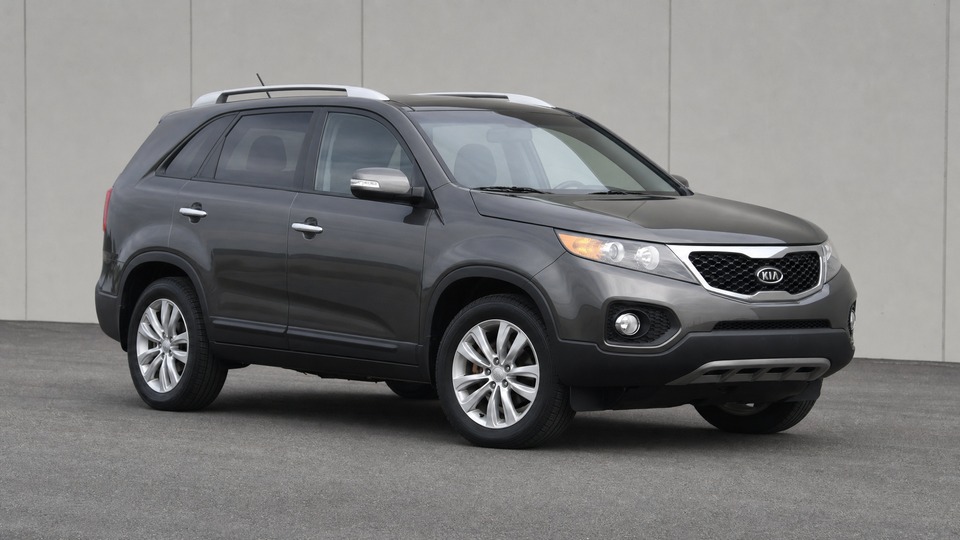

Kia Sorento 2.0 CRDi XM

The EGR valve on the D4HA engine accumulates carbon deposits over time, particularly with city driving and short trips. Symptoms include rough idle, heavy black smoke under acceleration up to 2,000 rpm that clears once the turbo spools, and engine management warning lights. Cleaning the EGR valve costs around 150-250 euro at an independent shop and resolves the issue if caught before the valve body is damaged. If the electromagnetic plunger is seized or the valve housing is warped, full replacement costs 400-900 euro. Typically occurs between 60,000 and 120,000 km, with city-only driving accelerating the buildup significantly.

The DPF needs sustained driving at motorway speeds to reach the temperature required for passive regeneration. If the car is used predominantly for short urban trips, soot accumulates until the DPF warning light appears. A forced regeneration at a workshop costs 150-250 euro. If the filter is heavily clogged, professional DPF cleaning runs 300-500 euro. Complete DPF replacement on the D4HA engine costs 1,200-2,000 euro including labour. The DPF typically lasts 120,000-160,000 km with mixed driving. Cars that have mainly been used for city commuting can need attention much earlier. A regular 30-minute motorway drive every two weeks helps prevent buildup.

The variable geometry turbocharger uses an electronic actuator to control the adjustable vanes. Carbon and soot buildup can cause these vanes to stick, resulting in poor boost response, loss of power, and limp mode activation with EPC or check engine warning lights. If only the actuator mechanism needs freeing, repair costs 400-600 euro. If the actuator motor itself fails, replacement including labour runs 600-1,000 euro. Full turbo replacement when the internals are damaged costs 1,500-2,500 euro. The turbo unit itself is robust and typically lasts 150,000-250,000 km with proper oil maintenance. Using quality 5W-30 oil and occasional spirited driving to clear deposits helps prevent this.

On AWD-equipped Sorentos, the splines connecting the automatic transmission output to the transfer case can wear due to insufficient factory lubrication. Once wear begins, metal-on-metal contact accelerates the damage. Symptoms include clunking from underneath during acceleration, vibration at speed, and eventually complete loss of drive to the rear wheels. Transfer case fluid should be changed every 40,000-60,000 km as preventive maintenance. A coupling and spline service costs 800-1,200 euro, while a full transfer case replacement runs 2,000-2,500 euro. This issue is less common on 2.0 CRDi models because many were sold as front-wheel drive, and the lower torque output places less stress on the splines. Front-wheel drive models are not affected.

Manual gearbox variants use a dual mass flywheel that can develop excessive play from 80,000-120,000 km onward, depending on driving style. Symptoms include a metallic rattling noise at idle that disappears when the clutch pedal is depressed, clutch judder on takeoff, and vibrations during gear changes. Kia classifies the DMF as a wear component and does not cover it under warranty. Replacement typically includes a new clutch kit since the gearbox must be removed. Parts cost 350-600 euro for the DMF plus 200-350 euro for a clutch kit, with labour running 5-7 hours. Total cost is 1,200-1,800 euro at an independent garage or up to 2,200 euro at a dealer.

Glow plugs deteriorate over time and typically need replacement between 80,000 and 150,000 km. Symptoms include difficult cold starting (especially below 5 degrees), extended cranking, rough running for the first minute after start, and the glow plug warning light staying on longer than normal. Individual glow plug replacement costs 30-50 euro per plug including labour. A full set of four plugs runs 150-250 euro at an independent shop, or up to 500 euro at a Kia dealer. Testing is straightforward with a multimeter: resistance should read 4-8 ohms per plug.

The Sorento XM has documented underbody corrosion issues, particularly in regions with heavy road salt use. The rear chassis crossmember that mounts the upper trailing arms for the rear axle assembly is most susceptible, with severe cases resulting in the mounting arms breaking free. Kia issued a service campaign to apply additional anti-corrosion treatment to 2011-2014 vehicles. Minor rust treatment costs 500-800 euro, while structural repair of severely corroded components can exceed 2,000 euro. Cars from southern European or dry-climate regions are typically unaffected. Always inspect the underside thoroughly before purchase.
