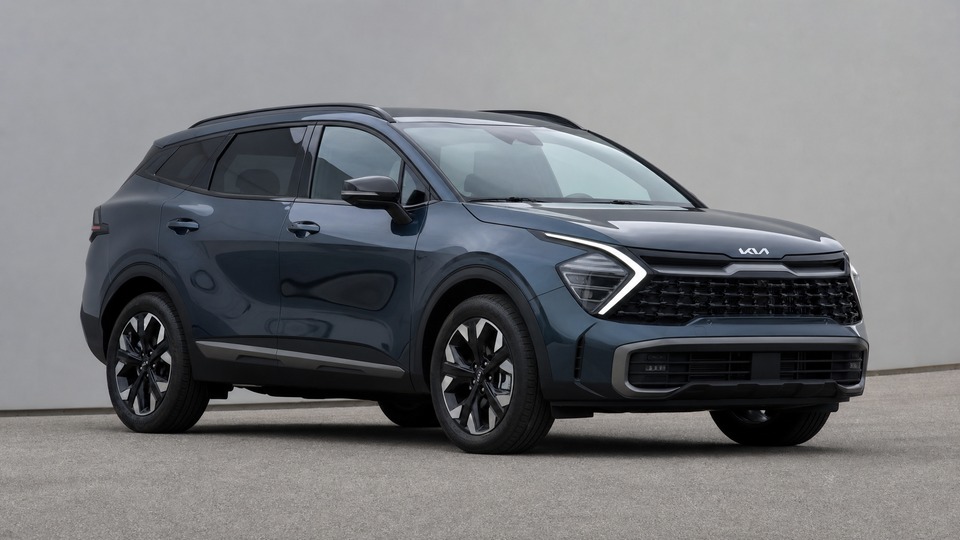

Kia Sportage 1.6 T-GDI HEV NQ5

The 1.6 T-GDI engine is fitted with a gasoline particulate filter (GPF) that requires regular high-speed driving to regenerate. When driven only on short trips at low speeds, soot accumulates and triggers a warning light. The standard fix is to drive at above 80 km/h for 30 minutes with engine RPM between 1,500-4,000. If this does not clear the warning, a forced regeneration at a dealer costs around €200-300. In severe cases where the GPF is damaged from prolonged clogging, replacement can cost €800-1,500 including labour. This issue primarily affects urban-only drivers; mixed driving patterns rarely trigger it. The hybrid system makes this slightly better than the non-hybrid variant because the engine runs at more consistent RPM during hybrid operation, but short trips where the engine barely warms up remain problematic.

The Sportage HEV integrates the 12V battery within the hybrid battery pack rather than using a separate conventional 12V battery. Multiple owners have reported dead batteries after the car sits for 7-10 days, caused by parasitic drain from Kia Connect, perimeter sensors, and other always-on systems. Kia released a BMS (Battery Management System) software update (SA553) to address overcharging and DTC P1BB2 errors. Having this update applied is important. If the 12V module itself needs replacement, it is more expensive than a conventional 12V battery due to the integrated design, costing approximately €250-500 at a dealer. Keeping the car plugged in to a trickle charger when parked for extended periods can prevent this issue.

Owners report intermittent issues with the infotainment system including screen freezes, Apple CarPlay and Android Auto disconnections, Bluetooth drop-outs, and occasionally blank instrument cluster displays. Most issues are resolved by software updates available through Kia dealers or via OTA (over-the-air) updates. In rare cases, the infotainment control module may need reprogramming or replacement (€200-300). An instrument cluster software recall (SA553/SC270) was issued for vehicles produced September 2022 to March 2023 to address blank display issues. Verify this recall has been completed.

Some owners have reported intermittent 'Check Hybrid System' or 'Hybrid Failure' warnings, sometimes accompanied by temporary loss of electric motor assistance. In most cases this is caused by the BMS software issue (DTC P1BB2) and is resolved by the software update. In rare cases, it can indicate a failing hybrid battery module or inverter issue. The BMS software update resolves the majority of these warnings at no cost. If hardware replacement is needed (rare at this age), costs can reach €1,500-2,000 but this is typically covered under the hybrid battery warranty (8 years / 160,000 km in Europe).

As with all direct injection engines, the 1.6 T-GDI does not wash fuel over the intake valves, allowing carbon deposits to accumulate over time. Symptoms include rough idle, misfires, and reduced power, typically becoming noticeable after 60,000-100,000 km. Walnut blasting or chemical cleaning of the intake valves costs approximately €400-800 at a specialist workshop. Using top-tier fuel and occasional spirited driving can slow the buildup. The hybrid system's frequent engine starts and stops may slightly accelerate this process compared to conventional driving.

Some owners report a 1-2 second delay when accelerating from low speeds, where neither the electric motor nor the combustion engine seems to engage promptly. This is primarily a calibration characteristic of the hybrid control unit (HCU) rather than a mechanical defect. Software updates have improved this behaviour in many cases. In rare instances, actual transmission solenoid or valve body issues can cause more pronounced symptoms. The 6-speed automatic in the HEV is a conventional torque converter unit and is generally robust, unlike the 7-speed DCT used in the non-hybrid variant.
