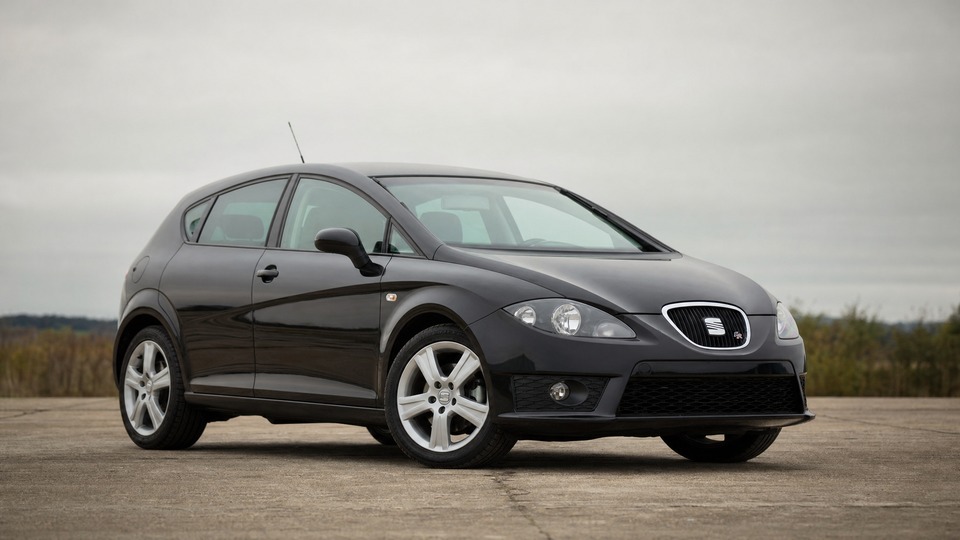

SEAT Leon FR 2.0 TDI Mk2

The BMN 170 hp PD engine uses Siemens piezo injectors with an internal wiring loom that runs through the cylinder head. Heat causes the insulation to degrade, creating short circuits between injector circuits. Symptoms include rough idle, diesel smell on idle, white smoke after idling, poor fuel economy, and diagnostic codes showing injector flow rate imbalances. SEAT issued a recall (NCA/2011/018) covering all four injectors and the wiring loom free of charge, even outside the normal warranty period. If the recall has been completed, this risk is largely resolved. If not, individual injector replacement costs €250-400 per unit, and a full set with loom runs €1,500-2,500 at a dealer. Common rail variants (CEGA/CFJA from late 2009) use conventional Bosch injectors and are not affected.

The EGR valve recirculates exhaust gases and gradually clogs with soot, especially on cars driven mainly in urban traffic. Symptoms include rough idle, hesitation under load, and the engine management light. On common rail models affected by the Dieselgate software update, EGR failure rates increased further due to changed injection timing. Cleaning the valve costs €100-200 but is often a temporary fix. Full replacement with an aftermarket part runs €300-500, while a genuine part at a SEAT dealer costs €500-800. Regular highway driving at sustained speeds significantly reduces buildup. Some owners opt for EGR blanking, though this affects emissions compliance for periodic inspection.

The DPF requires sustained highway driving at 60+ km/h for 15-20 minutes to perform regeneration. The PD engine (BMN) was not originally designed with a DPF in mind, and SEAT even reduced the PD170 output by approximately 20 hp in some markets to lower soot levels. This makes PD models significantly more prone to DPF clogging than the later common rail variants, which were designed for DPF integration from the start. Failed regeneration cycles dump unburnt fuel into the engine oil, raising the oil level and diluting it. Forced regeneration at a workshop costs €150-300. Professional DPF cleaning runs €300-500. Full replacement costs €1,200-1,800. Check the engine oil dipstick before buying: if oil level is well above maximum, diesel contamination from failed regenerations is likely.

The variable-geometry turbo uses movable vanes to control boost pressure. Carbon buildup causes these vanes and the electronic/vacuum actuator to stick, particularly on cars driven gently or only in urban traffic. Symptoms include intermittent power loss, EPC warning light, and limp mode. Specialist garages can often clean and free the vanes or replace just the actuator for €400-600. If turbo internals are damaged (worn bearings, shaft play, oil in intercooler pipes), a reconditioned turbo costs €700-1,000 and a new OEM unit €1,200-1,800 fitted. Regular spirited motorway driving helps keep the vanes free of deposits.

The 170 hp engine produces up to 350 Nm of torque, which puts significant strain on the dual mass flywheel in manual gearbox cars. Symptoms include a rattling or rumbling noise at idle (particularly with the clutch pedal depressed), juddering when pulling away in first gear, and vibration through the drivetrain. Typical failure occurs between 120,000-180,000 km depending on driving style, with urban stop-start use accelerating wear. DMF and clutch are replaced together as a kit since the gearbox must be removed. An independent garage charges €900-1,200 with quality LuK or Sachs parts. A SEAT dealer charges €1,300-1,600. Some owners opt for a solid flywheel conversion kit (Valeo, approximately €400-600) which eliminates the issue permanently but increases idle noise. DSG-equipped cars are not affected.

This is a well-known Mk2 Leon issue. A foam seal between the inner door skin and the metal carrier plate degrades over time. Rainwater enters through the window seals, runs inside the door, and instead of draining through the door's drain holes, seeps past the failed foam seal into the footwells. All four doors can be affected. Additionally, the scuttle panel joint above the pollen filter can leak, with SEAT issuing Technical Product Information (TPI 2025865) addressing this. The door seal repair involves removing the door card, cleaning old sealant, applying silicone sealant, and clearing the three drain holes per door. DIY cost is €20-50 in materials, or €100-200 per door at a workshop. If water has already damaged the wiring loom under the carpets, repair costs rise to €300-500.

The ATE MK60 ABS pump module fitted to the Mk2 Leon is a known weak point across all PQ35 platform VAG cars. The internal brake pressure sensor has no ventilation and over-pressurises with time, eventually damaging itself. When it fails, the ESP light illuminates permanently and the ESP OFF switch stays lit, though standard braking remains functional. Models built between August 2008 and May 2010 are more commonly affected. A new unit from SEAT costs €800+ plus labor. However, specialist ECU repair services can rebuild the module for €200-300 with a lifetime warranty, which is the recommended repair route.

Common rail variants (CEGA, CBBB, CFHC, CFJA) with EA189 designation were affected by the Dieselgate emissions scandal and received a mandatory software update. The update changed injection timing and EGR cycling patterns, which some owners report led to increased EGR valve failures, accelerated DPF clogging, and reduced fuel economy. SEAT offered a 24-month warranty on EGR issues following the update and has been known to cover repairs as goodwill. Ask whether the update was applied and whether any issues appeared afterwards. Some owners have had the software rolled back by independent specialists, though this affects emissions compliance.
