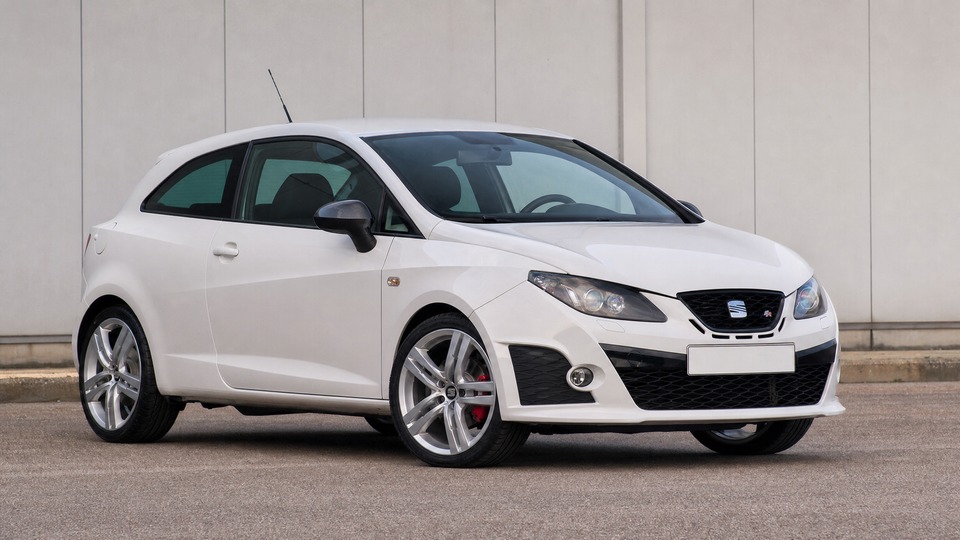

SEAT Ibiza Cupra 1.4 TSI 6J

The CAVE engine (2009-2012) has a well-documented design flaw: the piston ring lands crack under high crankcase pressures, measured at 70 psi versus the 40-60 psi design spec. This causes the piston rings to break and score the cylinder bores. The engine uses a sleeved bore design, meaning a standard rebore is not possible; the entire block must be replaced or sleeved. Symptoms include rapidly increasing oil consumption (1 litre per 500 km in severe cases), blue exhaust smoke, and eventually complete loss of compression. Using fuel below 98 octane accelerates the problem through pre-ignition. The CTHE engine (2012-2015) received upgraded KS pistons replacing the problematic Mahle units, significantly reducing (but not eliminating) this risk. A used replacement CAVE engine costs approximately €2,500-3,000 from specialists like MIK Motoren. A rebuild with forged pistons costs €2,500-3,500 at an independent engine builder. If bore damage has occurred, costs can reach €5,000. Always request a compression and leak-down test before purchasing any 1.4 TSI twincharger.

The K03 turbocharger suffers from two main failure modes. First, the turbo oil seals can degrade, especially on cars with decat exhausts where reduced backpressure combined with high crankcase pressure forces oil past the seals. Second, the wastegate actuator can seize from carbon buildup, particularly on gently driven cars. Symptoms include blue/white exhaust smoke (seal failure), EPC warning light with limp mode (actuator), and audible turbo whine or rattle. A specialist can sometimes replace just the actuator for €400-600, but if the turbo internals are damaged, a complete replacement runs €1,200-2,500 depending on whether an OEM or remanufactured unit is used. The turbo typically lasts 150,000-180,000 km with proper maintenance.

The twincharger system uses a magnetic clutch integrated into the water pump assembly to engage and disengage the supercharger at low RPM. On 2009-2011 models, the original clutch material was prone to premature wear, causing a distinctive squeaking or ticking noise when the supercharger attempts to engage below 2,500 RPM. SEAT released an upgraded water pump with modified clutch material from 2011 onward. Replacing the water pump/supercharger clutch assembly costs approximately €600-800 at an independent garage or up to €1,000 at a SEAT dealer. Post-2011 cars with the upgraded part are significantly less affected.

The Ibiza Cupra was DSG-only until the 1.8 TSI manual arrived in late 2015. The DQ200 7-speed dry-clutch DSG has well-documented issues: the mechatronic unit's accumulator housing wall can split, causing loss of hydraulic pressure. Clutch packs wear prematurely from the high torque output, causing juddering from standstill and jerky low-speed behavior. Problems typically appear between 60,000-120,000 km. Post-2013 cars have improved internals but the fundamental design weakness remains. A DSG specialist can rebuild the mechatronic unit for €1,200-1,800, while SEAT dealers may quote €2,500-3,000 for full replacement. Essential preventive maintenance: change DSG fluid every 40,000-60,000 km despite the manufacturer's claim of a lifetime fill.

The EA111 1.4 TSI uses a timing chain that can stretch over time, with the tensioner losing hydraulic pressure overnight. This is less prevalent on the 1.4 twincharger than on the 1.2 TSI, but still occurs, typically between 80,000-130,000 km. Symptoms include a metallic rattle during the first 5-30 seconds after a cold start. If ignored, the chain can skip teeth and cause valve-to-piston contact. VW released updated chain kits with stronger components. Replacement at an independent garage costs €800-1,200; SEAT dealers typically quote €1,500-2,000. The repair is labor-intensive, requiring approximately 7 hours of work.

The 1.4 TSI twincharger runs high combustion pressures that stress the ignition system. Coil pack failures typically occur between 60,000-100,000 km, with a second wave around 140,000 km. Symptoms include misfires, rough idle, and check engine light with P0300-P0304 fault codes. The engine requires colder-rated spark plugs (BKR7EIX recommended by tuning specialists) rather than standard items. Replacing all four coils and plugs costs €150-400 depending on parts quality. Using the wrong spark plug heat range accelerates both coil and piston ring failures.

The twincharger system generates substantial heat, which degrades plastic radiator end caps and rubber coolant hoses faster than on naturally aspirated engines. The radiator is prone to leaking where the plastic end tanks meet the aluminum core. Symptoms include coolant smell, visible drips, and overheating warnings. A replacement radiator costs €150-250 for an aftermarket unit plus €100-200 labor. If the thermostat housing also fails, add €300-400. Annual coolant checks and replacement with G12+ every 2-3 years are recommended.
