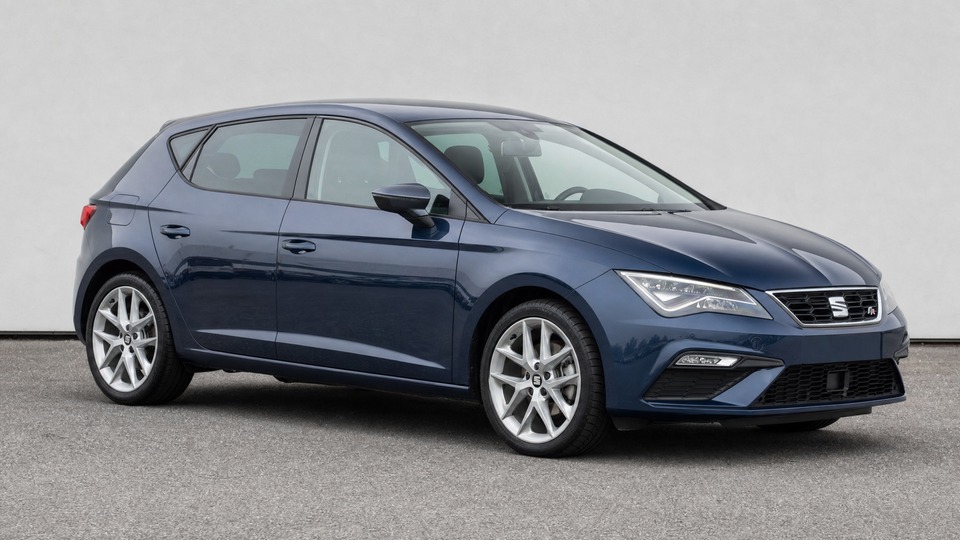

SEAT Leon FR 2.0 TDI Mk3

The EA288 2.0 TDI has a dual-circuit EGR system (high-pressure and low-pressure). Carbon and soot deposits gradually restrict the valve, especially on cars driven primarily in urban traffic. Symptoms include rough idle, hesitation under load, engine management light, and eventually limp mode. The EGR valve is positioned behind the engine near the firewall, requiring 4-5 hours of labor for access. Cleaning costs around 200-400 euros but is often a temporary fix. Full replacement with a genuine part runs 500-1,200 euros depending on whether an independent shop or SEAT dealer performs the work. The EGR cooler can also develop internal cracks where coolant enters the exhaust system, making the leak invisible externally. Regular highway driving at operating temperature significantly reduces the rate of carbon buildup.

The DPF needs regular regeneration at high exhaust temperatures, which requires sustained driving at 60+ km/h for 15-20 minutes. Cars driven predominantly on short trips fail to complete regeneration cycles. Each incomplete regeneration dumps unburnt fuel into the engine oil, raising the oil level and diluting it. Symptoms include DPF warning light, reduced power, increased fuel consumption, and eventually limp mode. Forced regeneration at a workshop costs 150-300 euros. Professional DPF cleaning runs 300-500 euros. Full DPF replacement costs 1,200-2,000 euros. Using VW 507.00 specification low-ash oil is essential, as incorrect oil dramatically accelerates filter clogging. Check the engine oil level before buying: if it is significantly above the maximum mark, diesel has been contaminating the oil from failed regenerations.

Models from 2015 onward with Euro 6 compliance use an SCR system with AdBlue injection. The heater element in the AdBlue tank can fail, particularly in cold climates, typically after 3-5 years. A failed heater or NOx sensor triggers a warning countdown; after a set number of restarts, the car will refuse to start until repaired. The heater module is a sealed unit that must be replaced as a complete assembly, costing 400-600 euros for the part. Total repair including labor runs 600-1,200 euros. NOx sensor replacement alone costs 300-500 euros. Using high-quality AdBlue and keeping the tank above 25% full reduces crystallization risk. Pre-2015 cars with Euro 5 compliance do not have AdBlue systems and are not affected.

The variable-geometry turbocharger uses movable vanes to control boost pressure. Carbon buildup from exhaust gases can cause these vanes and the electronic actuator to stick, particularly on cars driven gently or only in urban traffic. Symptoms include intermittent power loss, EPC warning light, underboost conditions, and limp mode. Specialist garages can often clean and free the vanes or replace just the actuator for 400-600 euros. If the turbo internals are damaged (worn bearings, shaft play), a reconditioned turbocharger costs 800-1,200 euros, and a new OEM unit 1,500-2,000 euros fitted. Regular spirited motorway driving helps keep the vanes free of deposits.

The Leon FR 2.0 TDI uses either the DQ250 6-speed or DQ381 7-speed wet-clutch DSG (manual 6-speed is also available). Both are significantly more robust than the problematic DQ200 dry-clutch used in smaller engines. However, the DQ381 has documented clutch position sensor issues (fault codes P1735/P1736) causing jerky shifts and delayed engagement, with first problems typically appearing after 60,000-80,000 km. Mechatronic repair at a specialist costs 1,000-1,500 euros. Full clutch pack replacement runs 1,500-3,000 euros at a SEAT dealer. Regular DSG fluid changes every 60,000 km significantly reduce risk, despite the manufacturer's claim of a lifetime fill. Manual gearbox cars do not have this issue.

The 2.0 TDI produces up to 380 Nm of torque (184 hp version), which puts significant strain on the dual mass flywheel in manual gearbox cars. Symptoms include excessive vibration at idle, rattling noises especially with the clutch pedal pressed, and eventually clutch slip. Typical failure occurs between 150,000-200,000 km depending on driving style, earlier if the car is driven mostly in urban traffic. When replacing the DMF, the clutch disc, pressure plate, and release bearing should be replaced simultaneously as the gearbox must be removed for access. A complete DMF and clutch kit replacement at an independent garage costs 1,000-1,400 euros. At a SEAT dealer, expect 1,500-1,800 euros. LuK and Sachs are the recommended parts manufacturers.

A well-documented manufacturing defect on the Leon Mk3 causes the plastic around the mounting studs of the rear lights to crack, often due to overtightening during factory assembly. This allows moisture to enter the light housing, leading to condensation visible inside the lens. If water ingress becomes severe, it can cause the rear lights to fail, which is a TUV/MOT failure. A replacement rear light unit costs approximately 100-200 euros per side. SEAT acknowledged this issue with a technical bulletin, and some dealers have replaced lights under warranty or goodwill. Check all rear lights carefully during inspection.

The EA288 has multiple cooling circuits with both a belt-driven main pump and electric auxiliary pumps. The auxiliary water pumps can fail, and plastic coolant flanges may crack with age and heat cycling. Symptoms include low coolant warnings, poor cabin heating, or visible coolant puddles. The main water pump is replaced together with the timing belt as scheduled maintenance. Auxiliary pump replacement costs 300-500 euros. The EGR cooler can also develop internal coolant leaks where coolant enters the exhaust system. If coolant level drops without visible leaks, the EGR cooler should be investigated.
