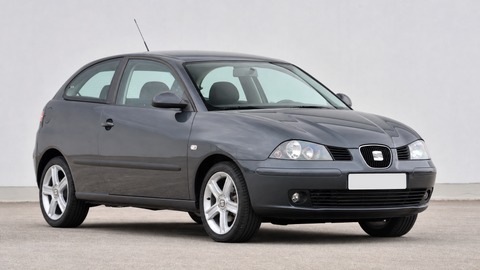

Seat Ibiza 1.4 Mk3

This is a well-documented design flaw on the Ibiza 6L. SEAT placed sound-deadening foam between the inner wheel arch and the outer wing panel at the top of each front arch. This foam absorbs water and holds it against bare metal, causing the wing to corrode from the inside. By the time bubbling paint appears externally, the damage is typically extensive. Both front arches are usually affected, and rear arches can also develop problems in regions with heavy road salt. Replacement wings cost €30-80 each, with paint and fitting adding €100-200 per side. SEAT's 12-year perforation warranty has now expired on all Mk3 models, and the manufacturer historically refused most claims by attributing the damage to stone chips rather than the design flaw. Prevention on unaffected cars involves removing the arch liner and trimming the foam away from the metal.

The 1.4 16V uses individual pencil-type coil packs that sit in the spark plug wells. Moisture seeps into the wells and degrades the insulation, leading to misfires, rough idle, loss of power, and a check engine light. Forum reports indicate this is a recurring issue, with some owners experiencing failures almost annually in damp climates. VAG had a recall campaign on coil packs affecting various models in this era. OEM-quality replacement coils cost €20-35 each, and replacing all four simultaneously is strongly recommended to avoid repeat visits. Cheap aftermarket coils tend to fail prematurely. Total cost including labour and spark plugs is typically €100-300 at an independent garage.

Broken coil springs are a known problem across the PQ24 platform (shared with Polo 9N and Fabia). The bottom coil sits in accumulated dirt and road salt, corroding the spring from below. The factory paint coating gets damaged during installation, accelerating the process. The spring steel quality from the original Czech supplier has been noted by specialists as below expectations. When one spring breaks, the other side often follows shortly afterwards, so replacing both sides is standard practice. Parts cost approximately €25-50 per spring, with labour around €80-120 per side. A broken spring is an MOT/TUV failure and causes the car to sit noticeably lower on the affected side.

The pre-cat lambda sensor typically begins to degrade between 80,000 and 140,000 km, triggering an emissions warning light and potentially causing rough running or poor fuel economy. A replacement sensor costs €40-90 for the part plus around €50-80 in labour. The more expensive scenario occurs when failed coil packs or a faulty lambda sensor are left unaddressed: unburnt fuel passing through the exhaust gradually destroys the catalytic converter. A replacement catalytic converter for the Ibiza 6L 1.4 costs €200-350 for the part plus €100-150 in fitting. Cars with a persistent engine management light or a history of repeated misfires are at significantly higher risk of needing a new cat.

The window regulators on the Ibiza 6L are a documented weak point shared with the Polo 9N. The steel cable inside the mechanism can fray or snap, causing the window to drop into the door or jam partway. Grinding or clicking noises when operating windows are early warning signs. Separately, the wiring loom passing from the A-pillar into the door can break from repeated flexing, causing intermittent window, central locking, or mirror faults. Aftermarket regulators cost €30-60 each, with OEM units at €60-110. Labour is typically 1-1.5 hours per door. The driver's side fails first in most cases due to heavier use.

The front suspension is the most commonly flagged mechanical area on the Ibiza 6L. Lower wishbone bushings and anti-roll bar drop links wear relatively quickly, particularly on cars driven regularly on poor road surfaces. Symptoms include knocking or clunking sounds over bumps, vague steering, and uneven tyre wear. Drop links are inexpensive at €20-35 per pair for parts. Complete wishbone replacement (€30-60 per side for aftermarket parts) requires more labour. A full front suspension refresh including both wishbones, drop links, and anti-roll bar bushings costs approximately €250-400 fitted at an independent garage.

The Bosch 5.7 ABS module fitted to 2002-2005 models is a known weak point across several VW Group vehicles from this era. When it fails, the ABS warning light illuminates permanently, which is both an MOT/TUV failure and removes ABS protection. In some cases the pump motor runs continuously even with the ignition off, draining the battery overnight. Specialist rebuilders can refurbish the existing module for approximately €250-350. Replacement with a tested second-hand unit plus coding runs €200-350. New OEM modules from SEAT are substantially more expensive and rarely justified on a car of this value.

The 1.4 16V engine uses several plastic coolant components that become brittle after 15+ years. Common leak points include the thermostat housing, the coolant flanges on the side of the cylinder head, the radiator end tanks, and the auxiliary water pump. The radiator can also leak where it rubs against its plastic mounting bracket. Most individual repairs cost €80-200 including parts and labour. On older cars, multiple coolant system components may need attention within a relatively short period. Keeping coolant properly maintained and at the correct concentration helps extend the life of these plastic parts.
