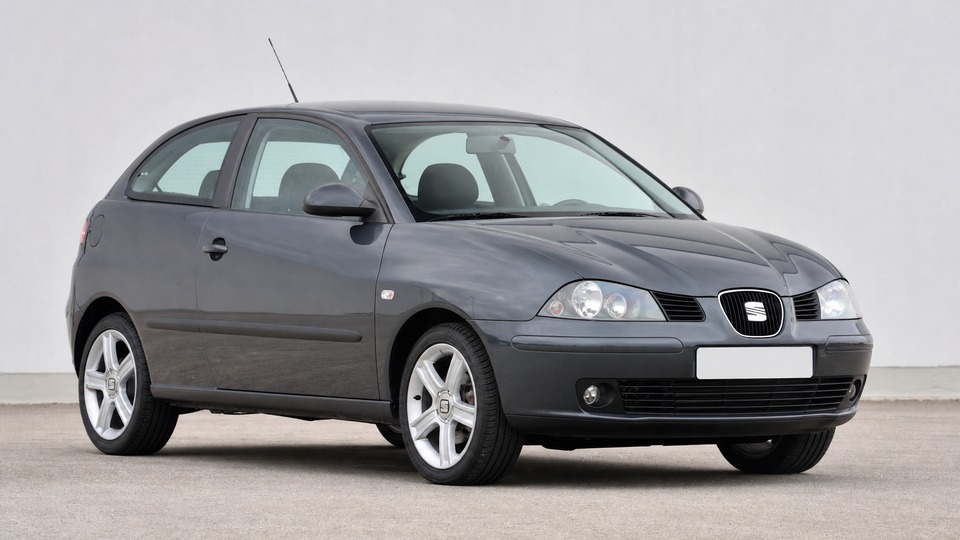

Seat Ibiza 1.2 Mk3

The AZQ and BME 3-cylinder engines drive their valvetrain via a timing chain with a hydraulic tensioner. The tensioner bleeds oil pressure when the engine is off, and on cold start it can take several seconds to re-tension. This causes a distinctive metallic rattle for 1-30 seconds after starting. Short-trip driving worsens this because the engine never reaches full operating temperature, keeping oil viscosity too high and overloading the tensioner. Wagner Motoren, a specialist rebuilder, recommends inspecting the chain every 45,000 km. If the chain skips teeth, valves can contact pistons, destroying the engine. A full chain, tensioner, and guide replacement typically costs €600-900 at an independent garage. If valve damage has occurred, a cylinder head rebuild or engine replacement pushes costs to €1,200-1,500, though at that point the repair may exceed the car's value.

The small-bore 3-cylinder block is prone to cylinder liner wear over time. The original honing pattern wears away, particularly with frequent cold starts and short trips. Once the honing is gone, piston rings cannot seal properly, leading to oil bypassing into the combustion chamber. Symptoms include blue exhaust smoke on acceleration, rising oil consumption (needing top-ups between services), and gradually declining compression. Early-stage issues can sometimes be managed by switching to a slightly thicker oil grade, but advanced bore wear requires either a rebore (if the block allows it) or engine replacement. A used replacement engine typically costs €300-600 including fitting at an independent shop. A full rebuild is rarely economical on a car of this value.

The 1.2 3-cylinder uses individual coil packs that are prone to failure, particularly the coil nearest the timing chain side of the engine. Moisture ingress through hairline cracks is the primary cause. Symptoms include rough idle, misfires, loss of power, and engine management light. Some owners report going through multiple coils. Parts cost approximately €20-40 each, and replacement is straightforward. Applying dielectric grease to the new coil boot before installation helps prevent moisture damage. This is a recurring issue rather than a one-time fix, as the engine bay layout exposes the coils to water spray.

The 6L Ibiza uses cable-operated window regulators that are prone to cable snapping, particularly on the driver's side which sees the most use. Additionally, the wiring loom that passes through the rubber boot between the door and body pillar is subject to repeated flexing and can chafe through, causing intermittent failures of the window motor, central locking actuator, or interior light. The regulator mechanism costs approximately €30-60 for parts, with 1-2 hours labor. Wiring repairs require stripping the door card and soldering broken conductors, typically €80-150 at an independent shop.

A design issue allows water from the rear washer jet fitting to leak onto the boot lock electrical connector, causing corrosion and intermittent failure. The boot may refuse to open or only work sporadically with the central locking. Individual door lock actuators can also fail, particularly the driver's side. Boot lock connector cleaning and re-sealing is often sufficient. If the actuator itself has failed, replacement parts cost €30-80, with straightforward installation.

A design flaw in the 6L Ibiza places a foam pad between the inner wheel arch and the outer wing panel. This foam absorbs and retains water, causing the outer wing to rust from the inside where it cannot be seen until paint bubbles appear. The plastic arch liner is also not fully sealed at the bottom, allowing mud and salt to accumulate against the sill. Cars from salt-road regions are particularly vulnerable. Wing replacement costs €100-250 per side (used or aftermarket panel plus paint). Sill repair is more involved at €300-600 per side if structural corrosion is present.
