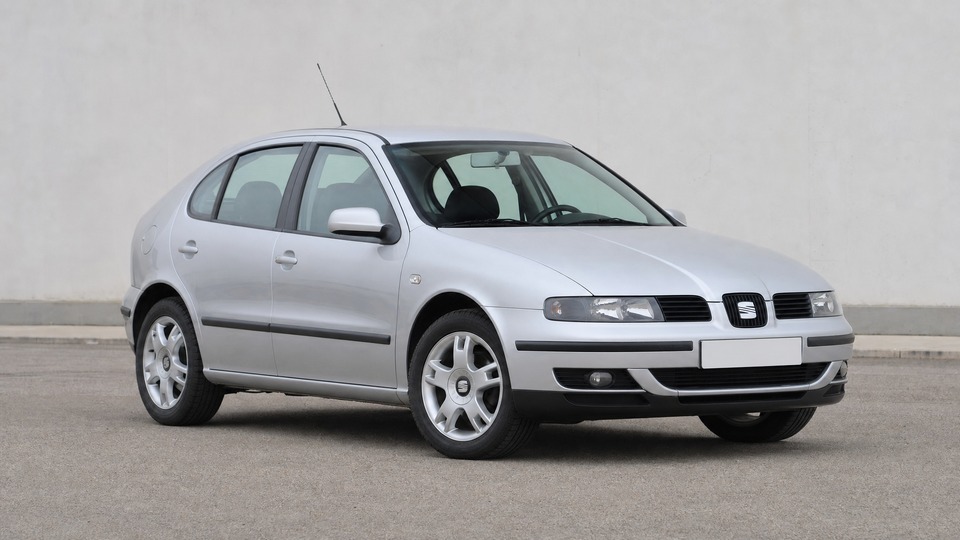

Seat Leon 1.6 Mk1

This is the most widespread Mk1 Leon-specific issue. The inner door panel uses a foam seal around the ancillaries carrier (the removable metal panel inside each door). Over time, the foam degrades and allows rainwater running down the inside of the door to seep through into the cabin, pooling in the footwells. The pollen filter housing seal in the scuttle panel is another common entry point for the passenger side. Prolonged water exposure causes floor pan corrosion, musty smells, and can damage the under-seat wiring (triggering airbag warning lights) and the ECU if water reaches the driver's side floor. Resealing door panels costs around €150-300 in parts and labor. If corrosion has already set in on the floor pans, repair costs can reach €500-1,500 depending on severity. Nearly all Mk1 Leons parked outdoors in northern Europe will have experienced this to some degree.

A very common VW Group problem of this era. The window regulator uses a plastic cog that wears until it strips, or a plastic clip connecting the glass to the cable mechanism that snaps. The window suddenly drops into the door and cannot be raised. Front doors are most commonly affected. A replacement regulator costs €25-60 for aftermarket parts and installation takes about one hour per door, bringing total cost to €50-150 at an independent garage. Metal clip repair kits are available for around €15-25 and provide a more durable fix than the original plastic. On a 20-year-old Leon, this has either already happened and been repaired, or it will happen.

The 1.6 16V engine (AZD/BCB) uses individual coil-on-plug ignition that is more prone to coil failure than the 8-valve models used in some Golf Mk4 variants. One or more coils can fail suddenly, causing the engine to misfire, shake, and lose power. Failed coils can appear white and crusty when inspected. A single coil pack costs €15-35 aftermarket or €40-60 original. Best practice is to replace all four coils and spark plugs together when one fails, costing approximately €80-200 in parts plus one hour of labor. The failure is sudden rather than gradual.

Like the Golf Mk4 it shares a platform with, the Mk1 Leon is prone to rust around the front and rear wheel arches, lower door edges, and sills. Front arches are typically worst. Some early Leons had manufacturing defects in their anti-corrosion process, which SEAT acknowledged with a 12-year corrosion warranty (now long expired). Road salt and stone chips accelerate the problem. Visible body rust on a Leon may also indicate poorly repaired crash damage. Minor arch repairs cost €300-500 per panel. Structural sill corrosion requiring welding can reach €1,000-2,000. Always inspect with arch liners removed and check the floor pan under the carpets for corrosion caused by water ingress.

The G62 coolant temperature sensor is one of the most common electrical faults across the entire PQ34 platform. The original black sensor fails so frequently that many mechanics replace it as a first diagnostic step. Symptoms include rough cold start, engine management light, erratic idle, and noticeably increased fuel consumption. The replacement sensor (green top, updated design) costs €10-25. Fitting takes about 15 minutes. Always use a genuine VW/SEAT sensor rather than aftermarket pattern parts, which can under-read by up to 20 degrees, creating new running problems.

The electronic throttle body gets clogged with carbon deposits, particularly on cars used for short trips. When the throttle plate cannot close fully, the engine cannot idle properly, causing bouncing revs between 500-1,100 RPM, stalling when coming to a stop, and EPC warning light illumination. Cleaning the throttle body with carb cleaner is often sufficient (€50-100 at a garage). If the internal sensor or motor has failed, a replacement throttle body costs €150-350. After any throttle body work, a throttle body adaptation must be performed using a diagnostic tool. The EGR valve should be cleaned at the same time, as carbon buildup affects both components.

The electrical connector beneath the driver's seat for the airbag occupancy sensor is known to develop loose or corroded connections over time. This triggers the airbag warning light on the dashboard. The fix is usually straightforward: removing the seat, cleaning or replacing the connector, and resetting the fault code. Independent garages charge around €50-100 for this repair. SEAT dealers have quoted up to €300 for the same work. In some cases, the issue is worsened by water ingress from the door seals, which corrodes the connector more quickly.

The door lock actuators, particularly on the passenger side, are known to wear out on Mk1 Leons. Symptoms include doors that fail to lock or unlock via the remote, or doors that lock briefly then pop back open. The actuator motor wears out, or the plastic linkage clip connecting it to the lock mechanism becomes brittle and breaks. A replacement actuator costs €30-60 and fitting takes about one hour per door. The wiring harness running through the door hinge area should also be inspected for damaged insulation, as flexing over thousands of open/close cycles can break wires.
