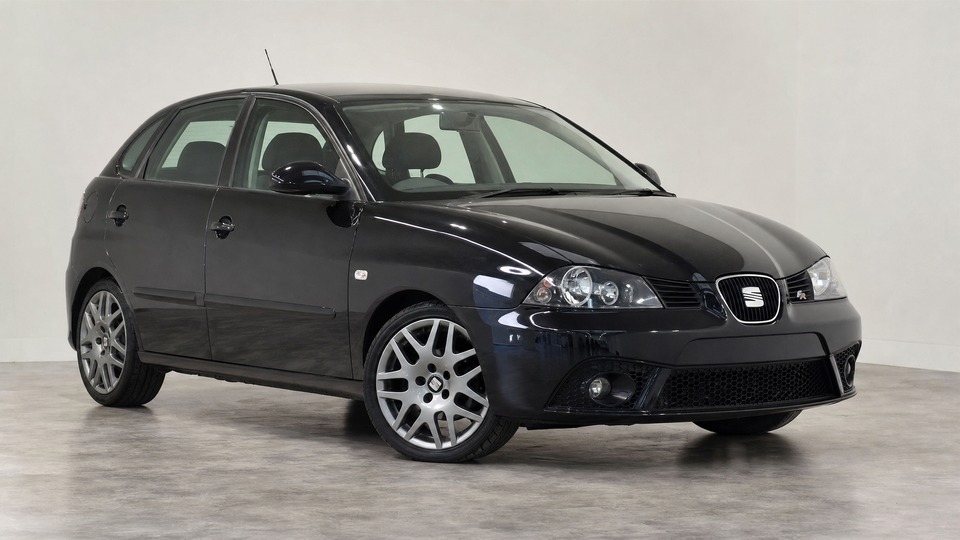

Seat Ibiza FR 1.8T Mk3

The 1.8T engine holds only around 3.7 to 4.3 litres of oil, which is minimal for a turbocharged engine generating significant heat. If oil changes are delayed or the wrong specification is used (anything other than fully synthetic 5W-30 or 5W-40 meeting VW 502.00/504.00), sludge accumulates rapidly in the oil passages and turbo oil feed lines. The turbocharger housing is particularly vulnerable because residual heat after shutdown breaks down the oil trapped inside. Symptoms include low oil pressure warnings, sluggish performance, and in severe cases turbo bearing failure from oil starvation. VW acknowledged this as a design weakness in 2004. Prevention is straightforward: use quality fully synthetic oil and change every 10,000 km or annually. Professional engine cleaning costs €400-800, but if the oil pickup screen is blocked and bearings are damaged, costs can escalate to €2,000-3,000 for engine internals work.

The 1.8T engine is well known for coil pack failures, which were subject to a class-action settlement in the US. The issue is caused by heat degradation and poor electrical connections in the coil pack wiring harness. When one coil fails, it causes a misfire on that cylinder with a rough idle, flashing check engine light, and loss of power. The problem tends to cascade since if one coil has degraded, the others are often close behind. Replacing all four coil packs and spark plugs is the recommended approach. A set of four quality aftermarket coil packs costs around €80-120, with labour around €50-80 at an independent garage. SEAT dealer pricing can reach €300-400 for the full set installed. Upgraded red-top Audi R8 coil packs can be retrofitted and are significantly more durable.

The K03s turbocharger is generally reliable but can fail through two main paths. First, oil seal degradation allows oil to enter the intake or exhaust, producing blue/white smoke. This is often accelerated by oil sludge starving the turbo bearings. Second, the wastegate actuator can seize from carbon buildup, especially on cars that are driven gently or only on short trips, as the actuator arm does not reach its full range of motion. Symptoms include the EPC warning light, limp mode, and loss of boost. A remanufactured K03s turbo costs around €400-600 for the unit itself. Labour is around €300-500 at an independent specialist. Full OEM replacement through SEAT runs €1,500-2,000 installed. The wastegate actuator can sometimes be freed and cleaned for €100-200 if the turbo internals are undamaged.

The factory diverter valve uses a rubber diaphragm that perishes with age and heat exposure. When it tears, boost pressure is vented to atmosphere instead of being recirculated, producing a distinctive fluttering sound on throttle lift-off. This causes sluggish acceleration, poor throttle response, and can trigger boost-related fault codes. The fix is straightforward: an aftermarket piston-type diverter valve (such as the Forge 007) replaces the problematic rubber diaphragm with a metal piston and is a permanent solution. Parts cost €80-150 for a quality aftermarket unit, and it can be replaced in under 30 minutes. The original OEM valve costs around €60-80 but will eventually tear again.

The N75 valve is a small electronic solenoid that regulates boost pressure by controlling the wastegate actuator. When it fails or sticks, the turbo cannot regulate boost properly, leading to overboosting, underboosting, or erratic power delivery. Symptoms include sudden power surges, hesitation under load, and the car entering limp mode. Diagnostic trouble codes may or may not be present, as the valve can malfunction intermittently without triggering a stored code. The valve itself costs €30-60 for a genuine part, with labour under an hour. However, diagnosis can take longer because the symptoms overlap with vacuum leaks, MAF sensor issues, and wastegate problems. Always check vacuum hoses for cracks and leaks first before replacing the N75.

The 02M 6-speed gearbox fitted to the 1.8T FR is known for developing a whining noise, particularly audible on deceleration. This is caused by bearing wear and can be addressed by a shimming procedure or bearing replacement. In mild cases the noise is cosmetic and the gearbox functions normally for many years. However, if ignored indefinitely, bearings can fail catastrophically. A specialist gearbox overhaul including bearings and synchros costs €800-1,500. A shimming fix to address the whine specifically costs around €300-500. Changing the gearbox oil to a quality 75W-90 GL4+ specification at regular intervals (every 60,000 km) helps preserve bearing life, despite VW claiming the gearbox is filled for life.

A known issue on the 6L Ibiza platform where the welds on the pedal box bracket fatigue and crack, particularly on the 1.8T variants where the clutch is heavier than on smaller-engined models. The clutch pedal develops excessive play, feels spongy, or can drop to the floor. The fix involves removing the pedal assembly, re-welding the cracked joints, and reinforcing them with a through-bolt (M8-M12) for additional support. A specialist or welding shop can repair this for €150-300. Replacing the entire pedal box assembly costs more, typically €300-500 including labour. Preventive reinforcement welding is recommended if the car is used spiritedly.

The 6L Ibiza has poorly sealed door cavities that allow water to reach the window motor and regulator mechanism. Symptoms include slow window movement, grinding noises, windows stopping mid-travel, or complete failure to move. The driver's door is most commonly affected first. The window regulator itself costs €40-80 as an aftermarket part, with the motor adding another €40-60 if also damaged. Labour is around €80-120 per door. Some owners report replacing three or four window motors during ownership. Improving door drainage and checking the rubber seals where the wiring loom enters the door can help reduce the frequency of failure.
