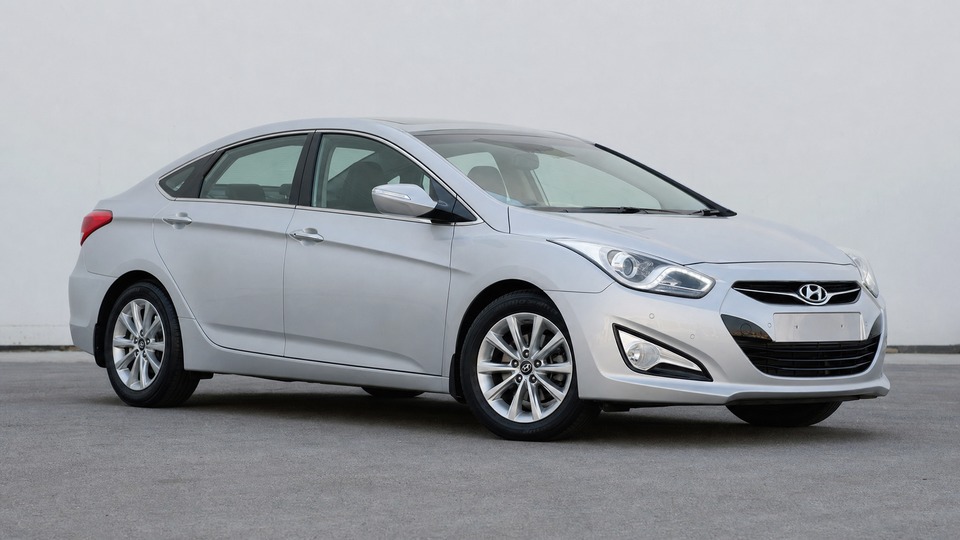

Hyundai i40 1.7 CRDi VF

The diesel particulate filter on the 1.7 CRDi needs regular motorway runs to regenerate properly. When driven predominantly on short urban trips, the DPF cannot reach the temperature needed for regeneration. Failed regeneration attempts inject extra fuel into the exhaust, and if exhaust valves are still slightly open, unburned diesel enters the oil sump. Owners have reported oil levels rising well above the maximum dipstick mark, with fuel dilution reaching 28% in severe cases. This can cause bearing damage and, in extreme cases, engine failure. Professional DPF cleaning costs around €300-500, while full replacement including fitting runs €800-1,500. A weekly motorway run of 20-30 minutes at 2,500+ rpm is the best preventive measure.

The EGR valve on the D4FD engine gradually accumulates carbon deposits from recirculated exhaust gases, particularly with urban driving patterns. Symptoms include rough idle, reduced power, increased fuel consumption, and eventually a check engine light. The EGR valve on this engine is somewhat difficult to access, with some workshops quoting 5-6 hours of labor. Professional cleaning costs around €150-300 when caught early, while a full replacement including labor runs €300-500. Cleaning is typically effective if deposits have not caused physical damage to the valve.

The manual gearbox i40 uses a dual mass flywheel that wears from frequent stop-start city driving. A common complaint is the clutch biting point becoming very low, sometimes nearly at the floor. This is often traced to wear on the plastic pushrod connecting the clutch pedal to the master cylinder, where the hole in the pushrod elongates. Cold weather makes gear engagement more difficult, particularly first and second gear. A complete clutch and DMF replacement costs €800-1,600 depending on whether OEM or aftermarket parts are used. Some independent clutch specialists can do the job for under €800 with aftermarket parts and warranty.

The D4FD engine uses a timing chain rather than a belt, but the chain and tensioner can wear after 150,000-200,000 km. The first symptom is a rattling noise during cold start that subsides once oil pressure builds. As wear progresses, the rattle lasts longer and the engine may run unevenly. Models from 2013 onwards appear to be more frequently affected. If ignored, the chain can skip or break, causing serious valve and piston damage. A preventive timing chain kit replacement (chain, guides, tensioner, sprockets) costs €800-1,200 including labor. This is far cheaper than engine repair after a chain failure.

The turbocharger on the 1.7 CRDi typically develops issues between 120,000 and 160,000 km. The most common failure is the turbo actuator seizing, which causes loss of power and can trigger limp mode. Less commonly, turbo bearing wear leads to oil consumption and blue exhaust smoke. An actuator-only repair at a turbo specialist costs around €500-800, while a full turbo replacement with a remanufactured unit runs €900-1,500 including labor. Regular oil changes with quality oil and allowing the turbo to cool after hard driving help extend its life.

The 7-speed dual-clutch automatic (D7UF1) available on the i40 uses a dry-clutch design similar in concept to the VW DQ200 DSG. Common failures include worn clutch packs causing slippage, inability to engage certain gears (first gear failure is frequently reported with code P0921), and harsh or jerky shifts. Problems typically appear between 80,000 and 120,000 km. In heavy stop-start traffic the clutches can overheat, as the DCT has no torque converter for smooth crawling. A clutch set replacement costs €1,500-2,500, while a full mechatronics rebuild or gearbox replacement can reach €3,000-3,500. Manual gearbox i40s do not have this issue.
