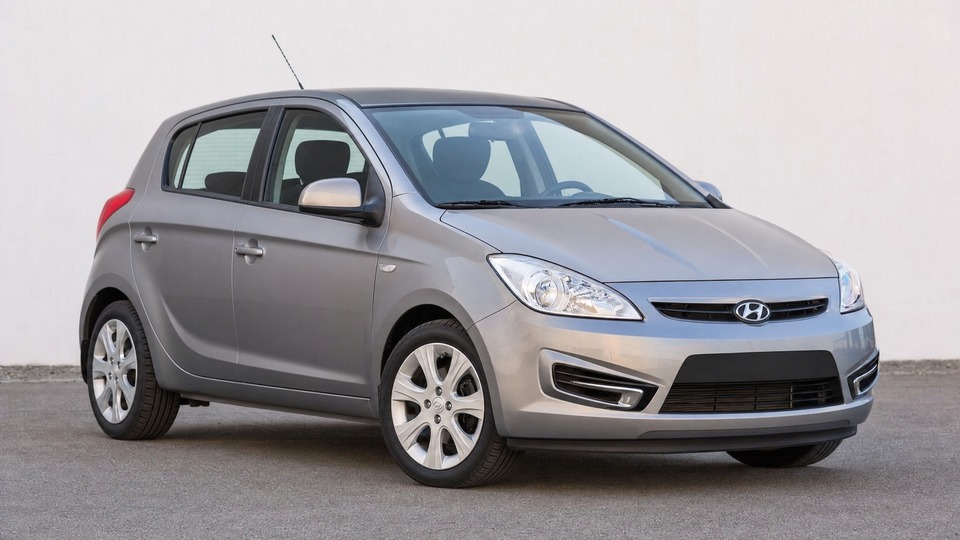

Hyundai i20 1.4 PB Reliability

Common Problems

Timing chain stretch and tensioner failure

€700 - 1,8001 of 6

Chain stretches and tensioner weakens, causing cold-start rattle typically after 80,000-120,000 km · more· less

The Gamma G4FA engine uses a timing chain with a hydraulic tensioner. The tensioner can lose oil pressure overnight, allowing the chain to go slack. This produces a distinctive rattling noise for a few seconds on cold start as oil pressure rebuilds. Forum reports indicate this typically appears between 80,000 and 120,000 km, and is accelerated by extended oil change intervals or using the wrong oil specification. The cylinder block is aluminium and non-rebuildable, so ignoring chain stretch risks catastrophic valve-to-piston contact. An independent workshop typically charges €700-1,000 for chain, guides, tensioner, and sprockets. A Hyundai dealer quotes €1,200-1,800. Hyundai has issued updated tensioner parts. Regular oil changes every 10,000 km with the correct specification (5W-30 or 0W-30) significantly reduce this risk.

Electric power steering (EPS) column failure

€500 - 1,0002 of 6

EPS motor overheats or control module fails, causing sudden heavy steering · more· less

The i20 PB uses an electric power steering system that can develop faults. The EPS motor is designed to shut down temporarily when it overheats from repeated sharp steering manoeuvres (parking, three-point turns). Some owners report the EPS warning light illuminating permanently, indicating control module failure or steering column sensor issues. Multiple forum threads on Hyundai forums document this problem. The EPS motor is not serviceable separately; if it fails, the entire steering column assembly needs replacement. Parts cost €300-600 and labour adds another €200-400. A loose connector on the EPS module is sometimes the cause (cheap fix), so diagnosis is important before committing to column replacement. This issue is more common on pre-facelift (2008-2012) models.

Air conditioning compressor failure

€500 - 1,0003 of 6

AC compressor fails prematurely, often between 50,000-70,000 km · more· less

The i20 PB has documented issues with premature AC compressor failure. The compressor can fail as early as 50,000 km, leaving the system unable to cool. When the compressor fails, the entire system must be flushed, the receiver/dryer replaced, and a new compressor fitted. Aftermarket compressors cost €200-350, OEM units €400-600, plus labour of €200-400 for the replacement. A frozen evaporator core (caused by a faulty temperature probe) can mimic compressor failure but is cheaper to fix. Running the AC regularly, even in winter for a few minutes, helps keep the compressor seals lubricated and delays failure.

Reverse gear engagement difficulty

€100 - 6004 of 6

Reverse gear difficult to select, caused by design of unsynchronised reverse · more· less

The manual gearbox in the i20 PB uses a straight-cut reverse gear with no synchromesh. This means reverse can sometimes be difficult to select on the first attempt, especially when the gearbox is cold. Selecting another gear first and then trying reverse usually works. In most cases this is a design characteristic rather than a defect. However, if the problem is persistent and accompanied by crunching, the clutch cable may need adjustment (€100-200) or the reverse gear mechanism may need repair (€400-600 if the gearbox needs opening). Some owners also report a crunch from 1st to 2nd gear, which Hyundai mechanics have described as normal for the gearbox design.

Ignition coil pack degradation

€100 - 3005 of 6

Coil packs fail causing misfires and rough running, typically after 80,000-100,000 km · more· less

The G4FA engine uses individual coil-on-plug ignition coils that can degrade over time. Symptoms include misfires on specific cylinders, rough idle, and the engine warning light illuminating. Individual coils cost €20-40 aftermarket or €50-80 OEM. When one fails, replacing all four along with spark plugs prevents repeat issues. A complete set of four coils plus plugs costs €100-300 including labour. While borderline a wear item, these often fail unpredictably rather than at a scheduled interval.

Door handle and body corrosion

€200 - 8006 of 6

Paint bubbling around door handles, boot lid, and front doors on some examples · more· less

Some i20 PB owners report rust appearing around the door handles, on the boot lid near the bottom of the rear glass, and on the lower edges of the front doors. Hyundai has acknowledged a service bulletin for the door moulding, and the tailgate is a known problem area. The rust typically develops from underneath the paint, suggesting trapped moisture in panel joints. Repair cost depends on severity: minor touch-up and sealant is €200-300, while repainting affected panels runs €500-800. This issue is more common in salt-road climates. Hyundai's rust perforation warranty (typically 6 years) may cover through-panel corrosion if detected early enough.

Straightforward ownership if timing chain and EPS are verified

The Gamma G4FA engine is fundamentally simple with no turbo or direct injection to worry about. Most reported issues are well-documented and detectable during a pre-purchase inspection. The timing chain is the most critical item to check (cold-start rattle test), followed by the EPS system (warning lights, steering feel). AC compressor failure adds cost but is not safety-critical. Regular oil changes with the correct specification are the single most important factor for long-term reliability. Cars with complete service history and no chain rattle are generally dependable daily drivers.

Pre-Purchase Inspection Checklist

General checks

Service history
Complete Hyundai dealer or specialist records. Verify oil changes every 10,000-15,000 km with correct specification oil.
Tires
Check tread depth, age (date codes on sidewall), and uneven wear. Standard size is 175/70R14 or 185/60R15.
Cold start
Must start the engine completely cold. Listen carefully for any rattling in the first 30 seconds.
Test drive
Minimum 20 minutes including varied speeds. Watch dashboard for warning lights, especially EPS and engine.

Specific for this vehicle

Listen for timing chain rattle on cold start
Start the engine after it has sat overnight. Any rattling in the first 5-30 seconds indicates chain tensioner wear. This is the most critical check for the G4FA engine.
Check for EPS warning light and steering feel
Turn the steering from lock to lock several times while stationary. The steering should be smooth and light. Any warning lights, grinding noises, or sudden heaviness indicates EPS problems.
Test the air conditioning thoroughly
Run AC on maximum cold for at least 5 minutes. It should blow cold within 30 seconds. Warm air or cycling on/off suggests compressor failure.

+ 3 more checksShow less

Test reverse and 1st-to-2nd gear changes
Select reverse from standstill several times. Check for persistent crunching or refusal to engage. Also test 1st-to-2nd shifts at low speed for grinding.
Inspect door handles and boot lid for rust
Look for paint bubbling around all four door handles and along the bottom edge of the rear window on the tailgate. Run a finger along panel edges to feel for roughness.
Check for engine vibration at 3,000-3,500 rpm
The G4FA has a known resonance vibration at mid-RPM. Mild vibration is normal, but excessive shaking could indicate worn engine mounts.

Recalls and Technical Service Bulletins

12V socket overheating risk when using tyre repair kit compressor (2008-2012 production) Verify completed

Wiring loom damage on petrol models (manufactured 15 Oct 2008 - 27 Aug 2009) Verify completed

Brake light switch terminal fault causing brake lights, cruise control, and start issues (2012 TSB) Verify completed

Takata airbag inflator (selected production years) Verify completed

Contact a Hyundai dealer with the VIN to verify all recalls have been completed. The wiring loom recall (2008-2009 production) and the brake light switch TSB (2012) are particularly important for the PB generation.

Warranty Status

Factory warranty (5 years / unlimited km) Expired on all PB generation models

Rust perforation warranty (6 years) Expired on all PB models

All Hyundai i20 PB models (2008-2014) are now well outside their original 5-year factory warranty and 6-year rust perforation warranty. No extended warranty programme is available from Hyundai for cars of this age. Third-party warranty providers may offer coverage, but exclusions for pre-existing conditions are common.
