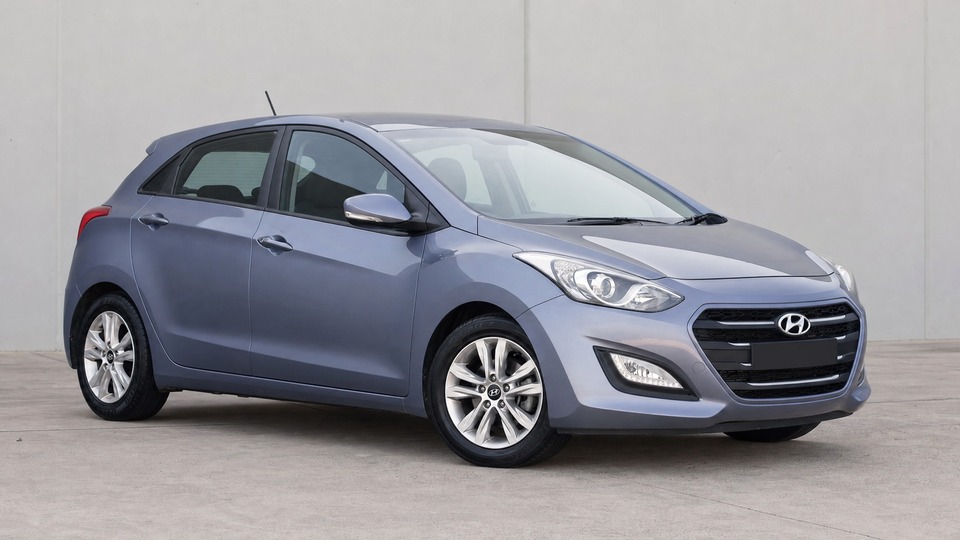

The Hyundai i30 GD with the 1.4 CRDi is an affordable compact diesel aimed at economical commuting. The D4FC engine delivers modest power (90 hp) but excellent fuel economy. It sits below the more popular 1.6 CRDi in the range and was typically sold with a 6-speed manual gearbox. Parts availability is good and independent specialist knowledge is widespread across Europe.· more· less
Dual roller chains stretch and rattle, typically becoming noticeable around 100,000 km · more· less
The D4FC uses a pair of roller timing chains that are known for modest durability. Stretching causes a distinctive rattling noise on cold start that may persist for several seconds. The tensioner gradually loses effectiveness, especially if oil changes have been irregular. If the chain jumps teeth, valve-to-piston contact can destroy the engine. Replacement requires significant labour (6-8 hours) as the timing cover must be fully removed. Parts (chains, guides, tensioner, sprockets) cost €300-500, with total repair bills of €800-1,800 depending on workshop. Using the correct 5W-30 oil and changing every 15,000 km maximum significantly extends chain life.
Turbo failure from oil starvation
€1,200 - 2,5002 of 7
Oil strainer blockage starves the MHI turbocharger, leading to bearing failure · more· less
The D4FC's turbocharger (Mitsubishi TD025) relies on clean engine oil for lubrication. When injector seals degrade, carbon and fuel residue contaminate the oil and gradually block the oil pickup strainer. Once oil flow drops below a critical level, the turbo bearings overheat and fail. Symptoms include blue/white exhaust smoke, whistling noises, and progressive power loss. A remanufactured turbo costs €500-800 for parts, with total replacement bills of €1,200-2,500 including diagnosis and labour. Prevention: strict oil change intervals and addressing injector seal leaks promptly.
EGR valve and intake manifold carbon buildup
€200 - 8003 of 7
Intake manifold requires cleaning approximately every 50,000 km due to heavy carbon deposits · more· less
The D4FC engine produces significant carbon deposits in the intake manifold and EGR valve. The intake manifold can become severely restricted after 50,000-70,000 km of predominantly urban driving. Symptoms include reduced power, rough idle, increased fuel consumption, and occasional check engine lights. Professional EGR cleaning costs €150-250. If the valve is seized or the cooler is leaking coolant, replacement runs €500-800. Cars used primarily for short trips are most affected. Regular motorway driving at sustained speeds helps reduce buildup.
Injector seal blow-by and oil contamination
€400 - 1,2004 of 7
Incorrectly torqued injector clamps cause seal degradation and combustion gas blow-by into the oil system · more· less
Hyundai has issued a TSB regarding injector clamp torque on CRDi engines. Over time, the copper injector washers degrade and allow combustion gases to leak past the seal. This pressurises the crankcase and pushes carbon into the oil, which then clogs the oil pickup and can trigger the turbo failure described above. Symptoms include oil darkening more rapidly than normal, excessive crankcase pressure, and oil leaks around the valve cover. Replacing all four injector seals and washers costs €400-600. If the injectors themselves need reconditioning or replacement, costs rise to €800-1,200.
DPF clogging from short-trip driving
€500 - 1,8005 of 7
Diesel particulate filter cannot regenerate properly during short urban trips · more· less
Like all modern diesels, the D4FC requires regular sustained driving (20+ minutes at motorway speed) to complete DPF regeneration. Repeated short trips cause soot accumulation that eventually triggers a warning light and limp mode. Failed regeneration also dilutes the engine oil with fuel, raising the oil level and reducing lubrication quality. A forced regeneration at a garage costs €100-200. If the DPF is beyond recovery, replacement costs €800-1,800. This is largely a usage-pattern issue rather than a design flaw - drivers who regularly cover longer distances rarely experience problems.
MDPS steering column coupling wear
€150 - 5006 of 7
Rubber coupling bush in the electric power steering wears out, causing clunking when turning · more· less
A very common issue on the i30 GD affecting all engine variants. The flexible rubber coupling in the motor-driven power steering (MDPS) assembly deteriorates over time, producing a clicking or thudding noise when the steering wheel is turned. Hyundai issued TSB 14-ST-002-1 acknowledging the issue. The coupling itself is inexpensive (€30-60), but labour can be significant as the steering column must be partially disassembled. Total repair cost is typically €150-300 at an independent workshop. If ignored, the worn coupling can damage the steering column internals, increasing the repair bill to €400-500. The issue does not affect steering safety but is annoying.
Crankshaft position sensor failure
€100 - 3007 of 7
Sensor fails due to heat exposure and vibration, causing stalling and starting problems · more· less
The crankshaft position sensor on the D4FC is positioned in a location exposed to engine heat and vibration. Failure symptoms include random stalling, extended cranking on start-up, and intermittent tachometer dropout. The sensor itself costs €40-80 (genuine Hyundai recommended - aftermarket sensors often perform poorly). Labour is straightforward at 1-2 hours, putting total repair at €100-300. While not a high-frequency failure, it can leave you stranded and is worth checking if the car exhibits starting irregularities.
Dependable when properly maintained, but diesel complexity adds cost
The D4FC 1.4 CRDi is a proven engine with a potential lifespan of 300,000 km when serviced correctly. However, the combination of timing chain, turbocharger, EGR system, and DPF means it requires more attentive ownership than a comparable petrol engine. The key risk chain to watch is injector seal degradation leading to oil contamination, which can then cause turbo failure. Cars with complete service records and evidence of regular motorway use are significantly lower risk. The 5-year Hyundai warranty covers many early failures, so verify warranty claim history.
Service history
Complete Hyundai dealer or specialist records essential. Oil changes every 15,000 km or 12 months are critical for chain and turbo longevity.
Cold start test
Start the engine completely cold. Listen for rattling or clunking in the first 30 seconds - this indicates timing chain stretch.
Test drive (minimum 20 minutes)
Include varied speeds. Watch for power loss, excessive smoke, or warning lights under load.
Tire condition
Check tread depth, age (date codes on sidewall), and uneven wear patterns indicating suspension issues.
Specific for this vehicle
Listen for timing chain rattle on cold start
The most important check. Start completely cold and listen for metallic rattling in first 10-30 seconds. Any sustained rattle indicates chain stretch requiring replacement.
Check exhaust smoke colour under acceleration
Blue or white smoke indicates turbo seal failure or oil burning. Black smoke suggests injector or DPF issues. Rev the engine briskly from idle and observe.
Check engine oil level and condition
Oil level above maximum may indicate DPF fuel dilution. Very dark oil before service interval suggests injector seal blow-by. Milky oil indicates coolant contamination.
+ 3 more checksShow less
Test steering for clunking when turning
Turn the steering wheel slowly lock to lock while stationary. Listen and feel for clicking or thudding - this indicates worn MDPS coupling.
Verify DPF regeneration pattern
Ask the owner about driving patterns. Predominantly short urban trips are a red flag. Check for DPF warning lights or stored fault codes with a diagnostic scan.
Inspect for oil leaks around valve cover and turbo
Oil weeping from the valve cover gasket is common. Check turbo oil lines for wetness. Leaks around injector seals indicate the TSB-documented blow-by issue.
Takata airbag inflator replacement (various production dates)Verify completed
Contact a Hyundai dealer with the VIN to verify all recalls have been completed. Also ask about TSB 14-ST-002-1 (MDPS steering coupling) - while not a safety recall, many dealers will replace this under goodwill if the car is within extended warranty.
Warranty Status
Factory warranty (5 years / unlimited km)Expired on most used examples (2012-2017 production)
Rust perforation warranty (12 years)May still be active on 2014+ models
Emissions componentsCovered under standard warranty period only
Hyundai's 5-year unlimited km warranty was one of the best in the segment when new. Most GD models are now outside warranty. Check whether any extended warranty or goodwill coverage applies, particularly for the MDPS steering coupling and timing chain issues.
Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.
This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
