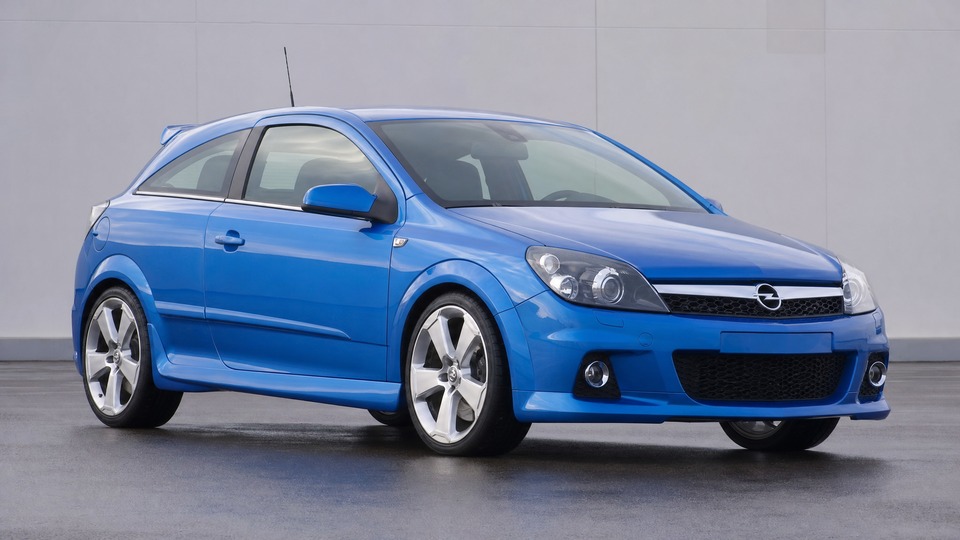

Opel Astra OPC H

The Getrag M32 six-speed manual is the Astra H OPC's most well-documented weak point. The 5th/6th gear output shaft bearing wears, creating a progressive whining noise most noticeable in 6th gear at motorway speeds. The original bearings measure 55 mm diameter with only 13.7 mm thickness. GM revised the design in mid-2012 with larger 62 mm bearings and improved oil galleries, but all Astra H OPC gearboxes predate this update. Specialist gearbox shops report having completed thousands of M32 rebuilds, indicating the scale of the problem across all M32-equipped GM vehicles. Aggressive driving, remapping, and launch control use accelerate bearing wear significantly. A 5th/6th bearing replacement costs approximately €650-900 at a specialist. A full bearing overhaul with upgraded Gen 2 end casing runs €1,100-1,800. If caught too late and gear teeth are damaged, a replacement gearbox may be needed at €1,800-2,500.

The Z20LEH uses an integrated exhaust manifold and turbo assembly. The manifold is prone to cracking, particularly around the number 3 and 4 cylinder branches, due to repeated thermal cycling. A cracked manifold is audible as a ticking or hissing noise under boost that rises with engine speed. The manifold studs are torqued to only 8 Nm and can work loose or shear. A manufacturer campaign covered stud re-torquing on selected 2008 production cars. A replacement manifold/turbo assembly costs around €700 plus fitting, while specialist repair or aftermarket manifolds start from €500. Because the turbo is integrated with the manifold, any manifold replacement involves significant labor. The Z20LEH casting is stronger than the earlier Z20LET, making full cracks less common than on the older engine, but stud loosening affects both.

The valve stem seals, particularly on the exhaust side, are a well-known weak point across all Z20LEx engines. They harden over time and eventually pop off the valve guides, allowing oil to seep past into the combustion chamber. The classic symptom is a puff of blue smoke on cold start or after idling. Oil consumption increases progressively. The seals themselves cost around €30-40 for a full set of 16, but labor is the main expense. A specialist can replace them with the head in situ using a valve spring compressor tool for approximately €400-500 total. If the head needs to come off (more common at general workshops), expect €800-1,200 including a head gasket set. Upgraded seals with an integral retainer that prevents the seal from working off the guide are available from Z20LEx specialists.

The Z20LEH's plastic rocker cover warps from repeated thermal cycling. Once warped, replacing the gasket alone will not stop the leak. Oil seeps onto the exhaust manifold, creating a burning smell and potential fire risk. A new rocker cover including gasket costs approximately €80-100, with the gasket alone only a few euros. This is a straightforward repair taking about 1-2 hours. A failed crankcase breather one-way valve can pressurize the cover and accelerate warping. This valve costs €15-25 and should be replaced at the same time. When the one-way valve fails, boost pressure enters the crankcase on boost, forcing oil past the cam cover seal.

The factory clutch and dual-mass flywheel typically last 100,000-140,000 km with moderate driving, though aggressive use or launch starts can shorten this to 60,000-70,000 km. Symptoms include juddering when pulling away, a rattling noise at idle, and a heavy or spongy clutch pedal. Parts cost approximately €350-500 for an OEM LuK clutch kit and DMF. Labor adds €400-600 as the gearbox must be removed. Many owners opt for a single-mass flywheel conversion at similar cost, which is noisier at idle but more durable under high torque. Most Astra H OPCs are now well beyond 100,000 km, so check whether this work has already been done.

The BorgWarner K04 turbocharger develops oil seal leaks, typically after 120,000-180,000 km. Symptoms include blue smoke under boost, increased oil consumption, and oil residue in the intercooler piping. Many used Astra OPCs have already had a turbo replacement. A reconditioned K04 fitted costs approximately €1,000-1,200 at a specialist, while a new OEM turbocharger with fitting runs €1,800-2,500. The turbo is sensitive to oil quality and cool-down routines. Cars that have been heavily remapped will see shorter turbo life. Some owners upgrade to a hybrid K04 turbocharger for more durability and performance.

The boost control solenoid has a small wire gauze filter that can become blocked with oil residue and debris. When this happens, the car fails to reach full boost or triggers limp mode, particularly when the sport button is pressed. A stuck wastegate can cause overboosting, which also triggers limp mode. Cleaning or replacing the solenoid filter often resolves the issue for under €50. A new solenoid costs €50-80 fitted. If the wastegate actuator mechanism is seized, the turbo may need to come off for repair, pushing costs to €400-600. Cars driven gently and only on short trips are more susceptible to carbon buildup. Regular spirited driving helps prevent this.

Coil spring breakage is a well-documented issue across all Astra H variants, not just the OPC. Springs corrode from road salt and moisture, eventually cracking and snapping. The break typically occurs at the lower coil and may not be immediately noticeable while driving, since the broken end often drops into the spring cup. Springs should be replaced in pairs. OEM springs cost €50-80 each, with aftermarket options from €30-50. Labor is around €100-150 per axle. The OPC's stiffer spring rates do not prevent this corrosion-related issue.

The CIM controls indicators, wipers, horn, and ignition functions from a module behind the steering wheel. Failures are common across all Astra H and Zafira B models. Symptoms include the horn not working when headlights are on, steering column controls becoming unresponsive, and intermittent starting issues. Opel acknowledged this as a design flaw and offered free replacement regardless of vehicle age. Check with a local Opel dealer whether this goodwill program is still active. If not, a replacement CIM costs approximately €200-300 fitted and coded.
