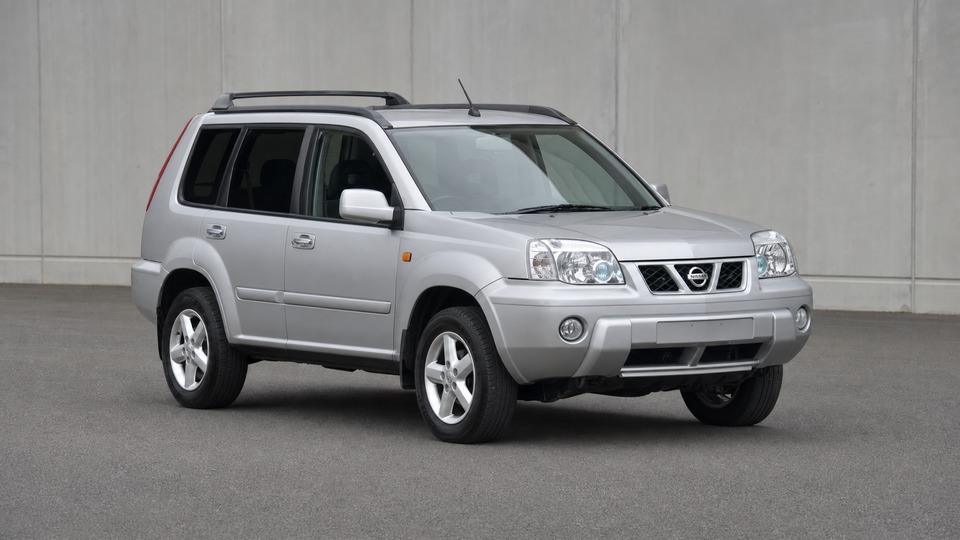

Nissan X-Trail 2.0 T30

The QR20DE timing chain was marketed by Nissan as a lifetime component, but real-world data shows the tensioner weakens over time, particularly on 2001-2003 models where a design flaw allowed oil pressure to bleed off overnight. Symptoms begin as a brief rattle on cold start (1-5 seconds), progressing to a sustained rattle lasting 30+ seconds. The chain stretches and the tensioner reaches maximum extension, typically between 120,000 and 180,000 km. Parts (chain, tensioner, guides, sprockets) cost approximately €150-300. Labor is intensive as the front of the engine, engine mount, and sump must be removed, typically requiring 6-8 hours of workshop time. Total cost at an independent garage runs €800-1,200, while a Nissan dealer may charge €1,500-2,000. Nissan updated the tensioner design in later production runs (post-2003), reducing the failure rate on newer T30s. Ignoring the rattle risks chain skip and catastrophic valve-to-piston contact.

A well-documented T30 flaw involves water ingress into the Engine Control Unit, which is located behind the glovebox on the passenger side. A poorly sealed grommet where the HVAC system's drain passes through the firewall allows moisture to seep in, particularly in humid climates or when the cabin air drain becomes blocked by leaves and debris. Once water reaches the ECU circuit board, corrosion causes intermittent engine management faults: misfires, stalling, no-start conditions, or erratic idle. Repair involves drying and resoldering the damaged circuit board (€300-500 at an electronics specialist) or replacing the entire ECU (€800-1,500 including coding). Some owners relocate the ECU to a drier position as a preventive measure. The issue is most common on pre-2004 cars and in coastal or high-humidity regions.

The QR20DE uses an aluminium cylinder block that is sensitive to overheating. The thermostat is a known weak point, often sticking closed and allowing the engine to overheat rapidly. When this happens, the aluminium block can warp, leading to head gasket failure. Additionally, the radiator can become partially blocked by residual casting sand from the manufacturing process, further restricting coolant flow. A thermostat replacement is relatively inexpensive (€100-200 including labor), but if overheating has occurred and the head gasket is compromised, repair costs escalate to €600-800. The water pump can also fail, typically between 100,000 and 150,000 km, adding €300-500 to the repair bill. Monitoring the temperature gauge and addressing any overheating immediately is essential to prevent secondary damage.

T30 models equipped with the Jatco CVT automatic are prone to premature transmission wear. The steel drive belt slips against the pulley surfaces as the transmission ages, causing hesitation, juddering during acceleration, and whining noises. CVT fluid changes every 40,000 km can extend the life, but many owners neglect this service. Symptoms typically appear between 100,000 and 160,000 km. A used replacement transmission costs €800-1,500 plus €500-1,000 for labor. A full rebuild runs €2,000-3,000 at a specialist. This issue does not affect manual gearbox cars. If buying a CVT-equipped T30, test for smooth acceleration across the full rev range and listen for whining or grinding noises. Manual gearbox versions are significantly more reliable and should be preferred.

The QR20DE has a pre-catalytic converter integrated into the exhaust manifold and a second catalyst further downstream. The pre-cat is known for a shorter-than-expected lifespan, typically degrading between 120,000 and 180,000 km. This triggers a persistent P0420 efficiency code and check engine light. Additionally, the threaded boss for the upstream oxygen sensor can crack loose from the manifold due to thermal cycling, requiring welding repair (€100-200). Replacement with an aftermarket manifold-and-cat assembly costs €400-600 at an independent garage. A Nissan original part is significantly more expensive at €700-1,000 fitted. Short-trip driving accelerates catalyst degradation.

Given their age (all T30s are now 18+ years old), underbody corrosion is a significant concern. The subframes are made from thick steel (2mm+) but corrode around the mounting points and swinging arm attachment areas. The sills are thinner and prone to rust, particularly around jacking points and the leading edge of the rear wheel arches where mud and moisture accumulate. Severe subframe corrosion can cause MOT/TUV failure and make the car uneconomical to repair. Professional rust treatment (Dinitrol cavity wax, wire brushing, Waxoyl application) costs €300-600. If structural welding is needed, costs escalate to €1,000-2,000. Cars from salt-heavy climates (Scandinavia, northern Germany, UK coastal areas) are particularly susceptible. A thorough underbody inspection is the single most important check when buying any T30.

The QR20DE uses coil-on-plug ignition, and the coil packs are known to fail with age. Symptoms include rough idle, misfires (P0300-P0304 codes), and reduced power. Ignition coil failure is accelerated by exposure to heat and moisture. A single replacement coil costs €30-50 for aftermarket or €60-80 for OEM. Most specialists recommend replacing all four coils at once when one fails (€120-200 for parts, €80-150 for labor). Continuing to drive with a misfiring cylinder risks destroying the catalytic converter, which would turn a €200 repair into a €600+ problem.
