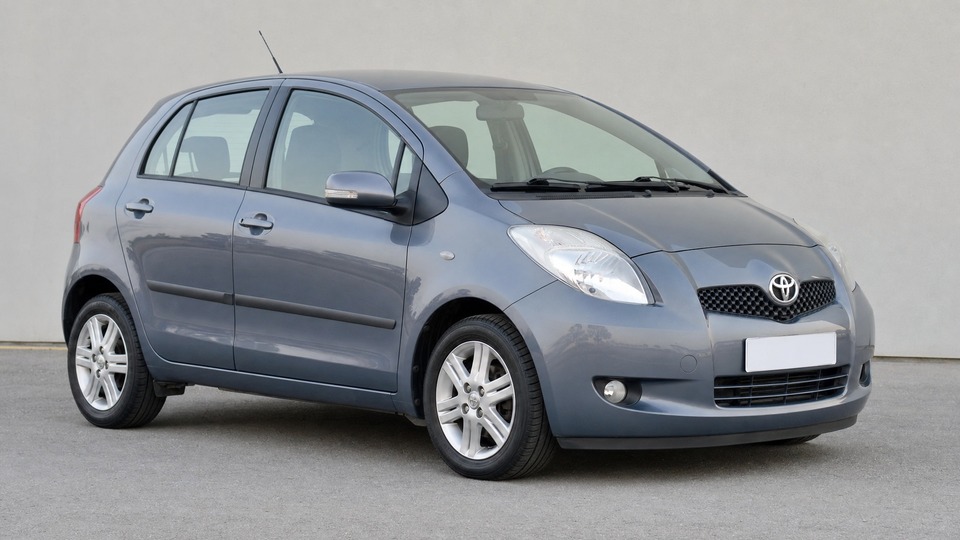

Toyota Yaris 1.4 D-4D XP90

Models from 2009 onwards (6-speed manual) are fitted with a DPF. Earlier 5-speed models generally do not have one. The DPF requires sustained driving at motorway speeds for 15-20 minutes to trigger regeneration. Without regular longer journeys, soot accumulates and eventually blocks the filter, triggering warning lights, limp mode, and loss of power. This can happen as early as 40,000 km on predominantly city-driven cars. Professional DPF cleaning costs €250-400. If the filter is beyond cleaning, replacement runs €800-1,200 including fitting. Toyota recommends a 20+ minute motorway drive at least every 500 km to keep the DPF clear. Using low-ash C2/C3 engine oil is essential, as incorrect oil accelerates clogging.

Early production 1ND-TV engines (roughly 2001-2006) had a known weakness with the cylinder head gasket failing, typically between cylinders and cooling channels. Toyota acknowledged this and extended the engine warranty to 160,000 km for affected vehicles. Symptoms include coolant loss without visible leaks, white exhaust smoke, and overheating. The issue was progressively improved in later production runs, and 2007+ XP90 models are significantly less affected. Head gasket replacement on the 1ND-TV costs €800-1,400 at an independent specialist. If the aluminium cylinder head has warped from overheating, machining or replacement adds €400-600. Check coolant condition and level carefully on any pre-2007 car.

The EGR system accumulates carbon deposits over time, particularly in cars used for short journeys or low-speed driving. Symptoms include rough idle, hesitation on acceleration, increased fuel consumption, and engine management warnings. On earlier XP90 models the EGR valve is relatively easy to access and can be cleaned in about 20 minutes as a DIY job. On 2008+ facelift models access is more difficult. Professional EGR cleaning costs €100-200. If the valve is beyond cleaning and needs replacement, parts cost €150-250 with around 1-2 hours of labour. Regular spirited driving and Italian tune-ups help reduce carbon buildup.

The small CT9 turbocharger can develop issues on higher-mileage cars, particularly those where oil changes have been neglected. Toyota issued TSBs for turbo whistling noise at RPM above 1,600 (EG-0069T) caused by welding-induced imbalance, and for oil leaks producing white smoke (EG-9014). The turbo is relatively small and inexpensive compared to larger diesel cars. A remanufactured turbo costs €300-500, with fitting adding €200-400 in labour. New OEM turbos run €600-900. Warning signs include excessive smoke on startup, loss of boost, or unusual whistling sounds. Regular oil changes with quality oil every 10,000-15,000 km are the best prevention.

The 1ND-TV has an aluminium cylinder head where glow plugs can seize over time as carbon packs around the barrel. The intercooler sits above the engine and can direct water, sand, and road debris onto the glow plug area, accelerating corrosion. A glow plug that snaps during removal turns a simple €80-150 job into a €400-800 repair requiring specialist extraction or cylinder head removal. Forum reports describe multiple snapped plugs during what should be routine replacement. Preventive replacement every 80,000-100,000 km, while the plugs are still removable, is recommended. Applying anti-seize compound during installation helps prevent future issues.

If the car has the MMT (Multi-Mode Transmission) automated manual gearbox, this is a significant reliability concern. The clutch actuator commonly fails, preventing gear selection and leaving the vehicle stuck in neutral. Symptoms include a flashing N light, erratic gear changes, and loss of drive. Common fault codes include P0810 and P0900. Specialist refurbishment of the actuator costs €400-600. Full replacement or rebuild of the MMT unit runs €800-1,200. The clutch itself may also judder or slip, requiring replacement at €500-700. Manual gearbox equipped cars avoid this issue entirely and are significantly more reliable. If buying a Yaris D-4D, strongly prefer the manual transmission.

The fuel pressure regulator on the common rail is susceptible to both clogging and wear. This distinguishes the 1ND-TV fuel system from more traditional Toyota Denso designs. Symptoms include difficult starting, black smoke, poor fuel economy, and fault codes P1229 (fuel system over pressure) or P0087/P0088. The part itself costs €100-250, with 1-2 hours of labour. The issue is more common on cars driven with poor-quality diesel fuel. Using premium diesel and a quality fuel additive every few thousand kilometres can extend the regulator's life.
