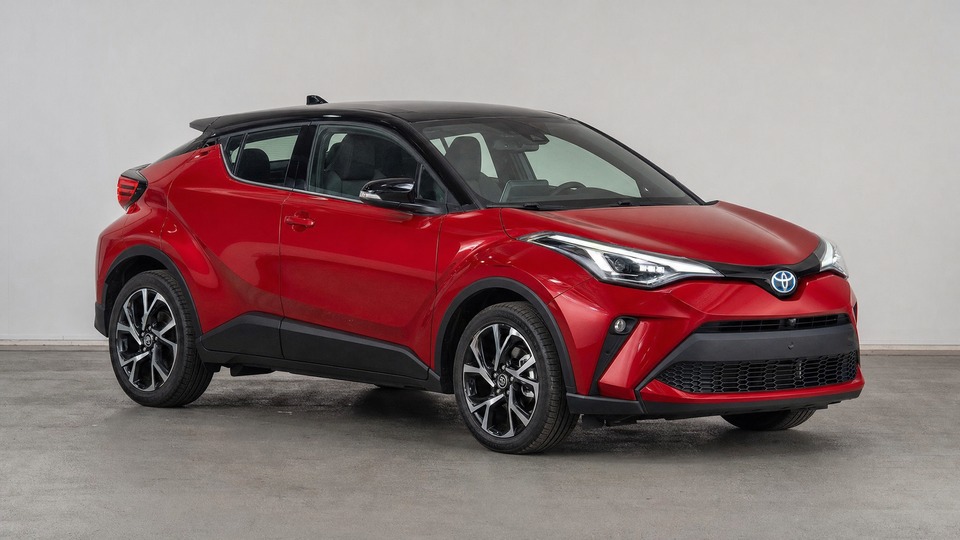

Toyota C-HR Hybrid Mk1

The C-HR Hybrid uses a small 45 Ah 12V battery that is not charged when the car operates in EV mode — only when the petrol engine runs. Combined with a parasitic draw of around 300 mA from vehicle electronics (especially the DCM data communication module on pre-update cars), the battery can go flat within 3-7 days of the car sitting unused. Toyota released firmware updates for the DCM module that reduced drain, but the underlying issue remains: the small battery and constant electronic draw mean regular driving or a trickle charger (CTEK MXS 5.0 recommended) is essential. Replacement AGM batteries cost €150-250 fitted, and owners typically replace them every 3-5 years. Cars manufactured from late 2022 onward show fewer reports.

A well-documented C-HR issue: windshields develop stress cracks spontaneously, typically appearing as a crack from the top edge that runs downward. Forum surveys show this disproportionately affects hybrid models (roughly 60 hybrid reports vs. 2 from the 1.2T petrol in one survey). The suspected cause involves the DAB antenna integrated into the glass and the adhesive used during factory installation. Toyota has addressed this under warranty for many affected cars, but out-of-warranty replacement costs €400-600 for the glass plus €150-200 for mandatory Toyota Safety Sense camera recalibration. Early production cars (2017-2019) are most commonly affected.

The infotainment unit can freeze during boot-up, display a black screen, or become completely unresponsive. This affects early models (2017-2019) more frequently and typically begins after 20,000-40,000 km. A factory reset by holding the power/volume button for 10-20 seconds often resolves temporary glitches. For persistent failures, Toyota dealers can reinstall the firmware at no charge. In rare cases the head unit needs replacement (€600-800 parts plus labour), though Toyota has replaced these under goodwill in many documented cases. Later production models with the updated multimedia system are less affected.

The radar sensor for the Pre-Collision System (PCS) and the Blind Spot Monitor (BSM) can produce false malfunction warnings, sometimes preventing the car from starting correctly. On 2019-2021 models this was particularly common between 25,000-40,000 km. Cleaning the sensor behind the front Toyota emblem with a damp cloth resolves many cases, but the system can take 5-7 days to recalibrate. Toyota issued a recall for 2020-2021 models where the radar sensor may not have been properly activated during assembly. Dealer recalibration is free under the recall; out-of-warranty sensor replacement costs €300-400.

The 2ZR-FXE engine uses a cooled EGR system that can accumulate carbon deposits over time. On earlier versions of this engine (2010-2014 Prius), clogged EGR passages could lead to head gasket failure. Toyota made design improvements for the C-HR-era 2ZR-FXE that significantly reduced this risk. However, at 150,000+ km the EGR cooler and passages may benefit from cleaning. Preventive EGR cleaning costs €300-500 at a specialist. If neglected beyond 200,000 km, head gasket failure remains a theoretical risk (€1,500-2,500 to repair), though this is rare on C-HR-era engines thanks to the revised EGR design.

Some C-HR owners report water entering the boot area during heavy rain. The leak typically occurs at the upper corners of the tailgate rubber seal, where the seal can pull away slightly. Less commonly, the rear-view camera grommet lacks proper sealing. The fix is straightforward: reseating the rubber seal and applying sealant where needed, costing €50-100 at a workshop. If the boot seal was removed during aftermarket rear camera fitting, a new seal must be fitted — the original seal is not designed for re-installation. If left unaddressed, moisture can damage the boot carpet and spare wheel well.

The front strut top mount bearings can develop play after 60,000-100,000 km, producing a clunking or knocking sound when driving over speed bumps at low speed. This is a wear item rather than a design defect, but the C-HR's suspension geometry means these bearings experience relatively high loads. Replacement costs €200-500 per side depending on whether the entire strut assembly or just the mount is replaced. The noise is annoying but not a safety issue in the early stages. KYB aftermarket mounts are available at lower cost than Toyota OEM parts.
