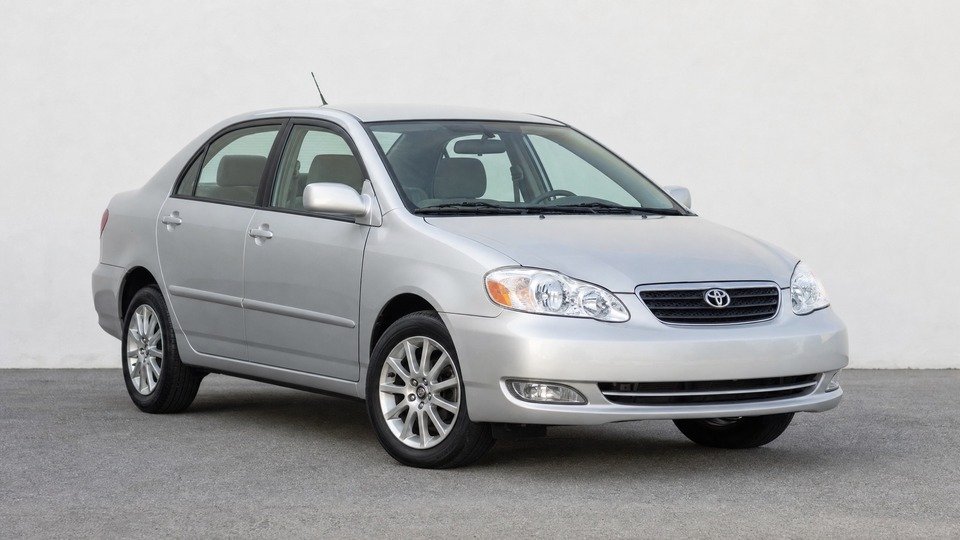

Toyota Corolla 1.6 VVT-i E12

The 3ZZ-FE shares the ZZ engine family's tendency for oil consumption. The low-tension piston rings were designed for fuel efficiency but are prone to carbon glazing, which prevents proper oil scraping. Consumption of 0.5-1 litre per 1,000 km has been reported on affected cars, mainly those built between 2002 and 2004. Toyota revised the piston design with additional oil drain holes from approximately 2005 production onward. Mild cases can be managed by using 5W-30 oil and regular longer drives to keep the rings clean. An Italian tune-up (sustained high-RPM driving) can sometimes free mildly stuck rings. Decarbonisation treatment costs around €200-400. Severe cases require piston ring replacement at €1,500-2,500 including labor. The E12 has no oil level warning light, so regular dipstick checks between services are essential.

The 3ZZ-FE uses a timing chain that is designed to last the engine's lifetime, but in practice the chain stretches and the tensioner weakens after 100,000-150,000 km. The tensioner relies on oil pressure, and when it weakens, a metallic rattling noise occurs for 1-30 seconds on cold start as the chain is momentarily slack. Ignoring this can lead to chain skip and catastrophic valve-to-piston contact, since the 3ZZ-FE is an interference engine. Replacing just the tensioner is a relatively simple job (it unbolts from the side of the timing cover) and costs €150-300 including parts and labor. A complete chain kit (chain, guides, tensioner, sprockets) costs €400-1,200 depending on the shop. Toyota updated the tensioner design, so always fit the latest version.

The 3ZZ-FE engine is known for consuming ignition coils at a higher rate than average. Coil packs typically start failing between 60,000 and 100,000 km, with a second wave of failures around 120,000 km. Symptoms include engine stuttering, loss of power, rough idle, and increased emissions, which can cause problems during emissions testing. Individual coil packs cost €15-30 each for aftermarket units, or €30-50 for OEM Denso units. A full set of four with spark plugs and labor runs €80-250 depending on parts choice. Prophylactic replacement of all four coils every 80,000 km is recommended by specialists. Always replace spark plugs at the same time.

This issue only affects cars with the MMT (Multi-Mode Transmission) semi-automatic gearbox. The clutch actuator motor or its internal components fail, causing the car to slip into neutral with a flashing N on the dashboard, rendering it undriveable. The only temporary fix is switching the ignition off, waiting 30-60 seconds, and restarting. Toyota acknowledged that approximately 1,000 MMT gearboxes were built with incorrect grease. A main dealer charges €800-1,800 for repair or replacement. Specialist rebuild services offer fixes for €400-700. The MMT gearbox also exhibits jerky low-speed operation even when working correctly. Manual gearbox models are strongly recommended. If the car has an MMT, budget for this repair as it is almost inevitable at higher mileages.

The rear drum and disc brake calipers on the E12 Corolla are prone to seizing, particularly on cars that do mostly short urban trips or are parked for extended periods. The caliper slide pins corrode and the pistons stick, causing uneven pad wear, pulling under braking, and in some cases a burning smell from the overheated brake. This is a well-known TUV failure point. Freeing a seized caliper with new slide pins and lubricant costs €50-100 per side. If the caliper piston is too corroded, replacement costs €150-250 per caliper including pads. Preventive maintenance includes regular caliper servicing and ensuring the handbrake is not left on for long periods.

The 3ZZ-FE water pump is a mechanical unit driven by the timing chain. The pump seal tends to weep coolant after 80,000-120,000 km. The thermostat housing can also develop cracks. Symptoms include gradual coolant loss, poor cabin heating, and eventually overheating if not addressed. The pump costs €60-100 and the thermostat housing about €40-60. Total repair at an independent workshop runs €200-400, or up to €500 at a Toyota dealer. It is advisable to replace the pump and thermostat together to avoid repeat labor costs.

The rubber gaskets around the rear light clusters deteriorate with age and UV exposure, allowing water to enter the boot. Water collects in the spare wheel well and can cause corrosion of components stored there. Condensation inside the light clusters is a visible early warning sign. The fix is straightforward: new OEM seals cost €15-30 per side, or butyl sealant tape works equally well. A dealer repair costs €80-200 including diagnosis. Left unaddressed, standing water in the boot causes musty smells, carpet mold, and eventual electrical problems if water reaches the wiring in the boot area.
