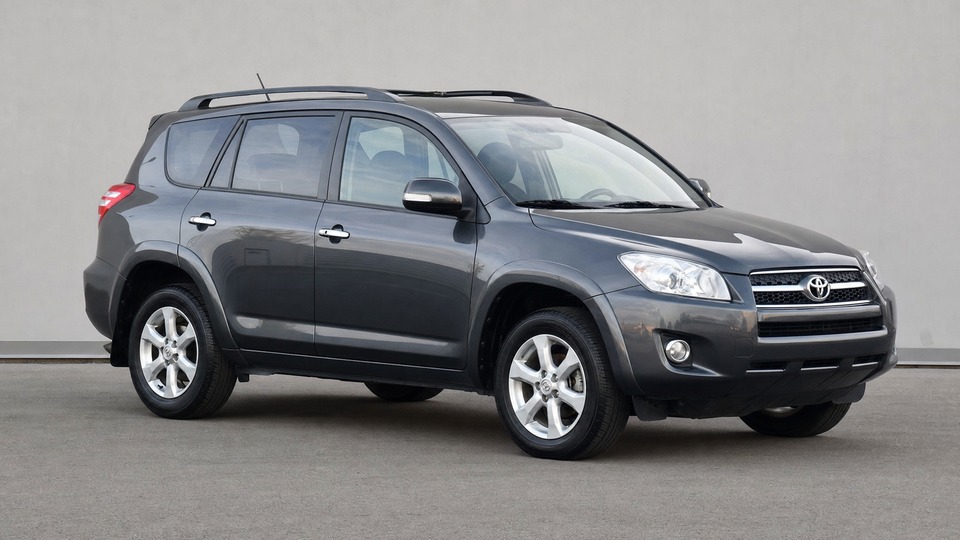

Toyota RAV4 2.2 D-4D XA30

The 2AD-FTV engine is known for head gasket failures, particularly on models built before 2010. The aluminium cylinder head warps due to thermal cycling, aggravated by head bolts that were too short in the original design. Symptoms include coolant loss without visible leaks, white exhaust smoke, and eventual overheating. Toyota acknowledged the issue and offered goodwill repairs up to 7 years / 180,000 km for vehicles produced July 2005 to December 2008. From 2010 onward, Toyota revised the cylinder heads (thicker casting) and torque specifications, significantly reducing failure rates. The repair involves head removal, surface machining or replacement, and new gasket - typically 10-15 hours of labor. At an independent garage, expect around €2,000-2,500; Toyota dealers quote €3,000-3,500. All used examples are now outside goodwill coverage.

The DPF on the 2.2 D-4D clogs frequently when driven predominantly on short urban trips. The system requires sustained driving above 60 km/h for passive regeneration to occur. When the filter becomes too blocked, active regeneration initiated by the ECU may also fail, triggering warning lights and eventually limp mode. A forced regeneration at a garage costs €200-300. If the DPF is severely blocked, cleaning costs €300-500 and full replacement runs €800-1,500. This is one of the most common complaints on RAV4 diesel forums. Regular motorway driving significantly reduces the risk. Some owners report DPF issues as early as 40,000-60,000 km with city-only driving.

The EGR cooler on the 2AD engine uses thin metal tubes that can develop cracks from repeated heating and cooling cycles. When this happens, coolant can leak into the exhaust system or intake manifold. Symptoms include coolant loss, white smoke from the exhaust, and a sweet smell. The EGR cooler is integrated with the intake manifold on some variants, making replacement more expensive. Independent garage costs range from €800-1,200, while Toyota dealers may charge €1,400-1,800 due to the complexity and part cost. This typically occurs after 100,000-150,000 km and is more common on cars that do frequent stop-start driving.

The variable-nozzle turbocharger uses moveable vanes to control boost pressure. These vanes accumulate carbon and soot deposits, especially with gentle driving or short trips, causing them to stick. Symptoms include lack of power, turbo whistle changes, and error codes triggering limp mode. Cleaning the turbo actuator mechanism at a specialist costs €400-600. If the turbo internals are damaged, a reconditioned turbo unit runs €600-800 plus €300-500 labor. A new OEM turbo with fitting can reach €2,000-2,500. Regular spirited driving and quality oil changes help prevent buildup. The issue typically develops gradually between 80,000-150,000 km.

The 2AD-FTV uses electromagnetic (solenoid) injectors. The copper seal washers between the injectors and cylinder head can burn out over time, allowing combustion gases to leak past. This causes carbon buildup around the injector seat, making removal difficult and sometimes resulting in injector damage. A single reconditioned injector costs around €130-180, with labor of approximately €150-200 per injector. Replacing all four injectors with reconditioned units typically costs €800-1,200 at an independent garage. If injectors seize in the head due to carbon, extraction can add €200-500 to the bill. This generally occurs after 120,000-180,000 km. Using quality diesel fuel and regular fuel additive treatments helps prevent early failure.

Some 2AD-FTV engines consume oil at rates above Toyota's threshold of 0.5 liters per 1,000 km. Owners report consumption of 1 liter per 2,000-3,000 km in more severe cases. The causes include worn piston rings, degraded valve stem seals, and turbo seal leakage. Mild cases can be managed by regular oil level checks and top-ups (€100-200/year in extra oil). Severe cases requiring piston ring replacement or engine overhaul can cost €2,000-3,000. Toyota previously offered warranty repairs for consumption exceeding their threshold, but all XA30 models are now outside any coverage. This tends to worsen gradually and is more prevalent on higher-mileage examples above 150,000 km.

This is a shared issue with the petrol XA30 RAV4. The universal joint in the steering intermediate shaft develops play over time, producing a noticeable clunk or knock when turning the steering wheel, particularly at low speeds and over bumps. While not a safety concern in early stages, it worsens over time. The replacement intermediate shaft costs €150-250 for the part, with 1-2 hours of labor. Total repair at an independent garage runs €300-450, or €450-600 at a Toyota dealer. This is common on cars with over 80,000 km.
