Jaguar XE 2.0d X760 Reliability

Common Problems

Timing chain stretch and failure

€2,000 - 4,5001 of 7

Chain stretches prematurely on pre-November 2019 engines, can destroy engine if it snaps · more· less

The Ingenium 2.0 diesel uses a timing chain at the rear of the engine (flywheel side), making replacement a major job requiring gearbox removal. JLR acknowledged in a technical bulletin that early chains used inferior materials. Three chain revisions followed, with the critical update arriving in November 2019 with new guides, tensioners, and a damped intermediate sprocket. Chains typically begin stretching between 60,000 and 130,000 km, initially causing a metallic rattle on cold start. If ignored, the chain can jump or snap, causing piston-to-valve contact and catastrophic engine damage. Oil dilution from incomplete DPF regeneration accelerates wear. Specialist timing chain replacement costs €2,300-3,500 including parts and 18-24 hours labour. If the engine is damaged, a reconditioned fitted engine runs €5,000-9,000. No official recall exists. Post-November 2019 production engines are significantly less affected.

Oil dilution from DPF regeneration

€200 - 6002 of 7

Fuel enters the oil sump during active regeneration, diluting lubrication and accelerating chain wear · more· less

During active DPF regeneration, extra fuel is injected to raise exhaust temperatures. If regeneration is interrupted by stopping the engine during a short trip, unburnt fuel washes past the piston rings into the oil sump. The XE has a longitudinally mounted engine with the DPF close-coupled to the turbo outlet, which is better than transverse-mounted Land Rover variants. Nevertheless, predominantly short-trip driving causes oil dilution that accelerates timing chain wear and reduces bearing protection. The fix is straightforward: change oil every 12,000-15,000 km (not the manufacturer's recommended 34,000 km interval), and ensure regular 30+ minute motorway runs. Monitor oil level — if it rises above the max mark, the oil is diluted and must be changed immediately.

Turbocharger failure

€1,500 - 2,5003 of 7

Turbo can fail from oil starvation or contamination, sometimes at relatively low mileage · more· less

Turbocharger failures are documented on the 2.0d Ingenium, sometimes occurring at relatively low mileage around 80,000-100,000 km. The XE and F-Pace appear most commonly affected. Symptoms include a high-pitched whistle that progressively worsens, sudden power loss, or restricted performance mode. Turbo failure is often linked to oil dilution degrading lubrication quality, timing chain debris contaminating the oil system, or a blocked turbo oil feed pipe. Specialist turbo replacement costs €1,500-2,500 for parts and labour. When replacing the turbo, the entire oil system must be cleaned to prevent the new unit failing in the same way. Premium oil and shorter service intervals significantly reduce this risk.

Piston cooling oil jet solenoid failure

€300 - 7004 of 7

Coolant leak from thermostat housing shorts out the solenoid, triggering false oil warnings · more· less

The 2.0 Ingenium diesel uses an electronically controlled solenoid to manage oil flow to the piston cooling jets. The most common failure cause is a coolant leak from the thermostat housing gasket, which drips onto the solenoid's electrical connector and shorts it out. This triggers fault code P25A9 and a 'Critically Low Oil' warning message, even when oil level is normal. While the engine does not typically enter limp mode, the constant false warning makes it impossible to detect a genuine low oil situation. Long-term solenoid failure can reduce piston cooling under load, increasing internal wear. Replacement including the thermostat housing gasket costs €300-700 at a specialist.

InControl infotainment system failures

€200 - 1,5005 of 7

Touchscreen freezes, Bluetooth drops, navigation crashes, and system fails to wake · more· less

The InControl Touch and Touch Pro infotainment systems fitted to the XE have been a persistent source of complaints. Common issues include the screen freezing or going blank, Bluetooth connectivity dropping repeatedly, navigation failing to load, and the system not powering on with the ignition. Software updates can sometimes resolve these issues and are free if the vehicle is connected to the internet. However, if a firmware update bricks the module or hardware fails, a complete unit replacement costs €1,200-1,500 out of warranty. The instrument cluster can also intermittently blank due to software glitches. Early 2015-2016 models are more prone to these issues.

AdBlue system faults

€200 - 9006 of 7

NOx sensor failure, injector crystallisation, and quality detection errors · more· less

The selective catalytic reduction system can develop issues including crystallisation on the AdBlue injector nozzle, faulty NOx sensors, and erroneous quality warnings. The 'Incorrect Diesel Exhaust Fluid Quality Detected' message often stems from contaminated or degraded AdBlue rather than an actual system fault. AdBlue has a shelf life and degrades in heat. NOx sensor replacement costs €400-750 at a specialist. Injector cleaning or replacement costs €200-400. Using genuine AdBlue and avoiding overfilling the tank helps prevent issues. If the system detects persistent faults, the car may restrict restarts after a set number of ignition cycles.

Battery drain and parasitic draw

€200 - 5007 of 7

Electronics fail to enter sleep mode, draining the battery within days when parked · more· less

Multiple XE owners report the car failing to enter proper sleep mode after the ignition is switched off, resulting in a flat battery after several days of parking. Normal parasitic draw should be under 50 mA, but faulty modules can keep the draw at 200+ mA. Common culprits include the alarm chirp sounder (internal rechargeable battery degrades and shorts), body control module software faults, the fuel filler cap motor drawing power continuously, and aftermarket accessories. A software update may resolve BCM-related issues. If the alarm sounder or a control module needs replacing, costs range from €200-500. Keeping the car on a trickle charger during extended parking periods is recommended.

Timing chain is the critical concern on pre-2020 cars

The Ingenium 2.0 diesel has well-documented timing chain issues affecting pre-November 2019 production engines. JLR acknowledged inferior chain materials in a technical bulletin but never issued a recall, leaving owners liable for repair costs. The XE benefits from a close-coupled DPF position that reduces oil dilution compared to transverse-mounted JLR variants, but the fundamental chain design weakness remains. Post-November 2019 models with updated components are significantly less affected. For pre-2020 cars, frequent oil changes (every 12,000-15,000 km) and avoiding predominantly short-trip use are essential preventive measures. Budget for a potential timing chain replacement if buying a pre-2020 car.

Pre-Purchase Inspection Checklist

General checks

Service history
Complete Jaguar dealer or specialist records essential. Verify oil change intervals — anything over 20,000 km between services is a concern on this engine.
Cold start the engine
Engine must be started completely cold. Listen carefully for any metallic rattle in the first 30 seconds — this is the most critical check for this car.
Test drive minimum 30 minutes
Include motorway speeds to check for turbo whistle, power delivery, and DPF regeneration behaviour.
Check tyre condition
Inspect tread depth, age (date codes), and uneven wear patterns indicating suspension issues.

Specific for this vehicle

Listen for cold start timing chain rattle
A metallic rattle lasting more than 2-3 seconds on cold start indicates timing chain stretch. Walk away if the rattle persists beyond 5 seconds.
Check build date for timing chain update
Cars built after November 2019 received updated timing chain components. Check the VIN plate or service records for the exact build date.
Monitor oil level — check if above maximum
Oil level rising above the max mark indicates fuel dilution from incomplete DPF regeneration. This accelerates timing chain and bearing wear.

+ 4 more checksShow less

Test infotainment system thoroughly
Check touchscreen responsiveness, Bluetooth pairing, navigation, and reversing camera. Cycle through all functions.
Check for coolant leaks around thermostat housing
Inspect the thermostat housing area for coolant residue. Leaks here cause the piston cooling jet solenoid to fail (fault code P25A9).
Verify fuel cooler recall completed (2016 models)
Recall J079 affects 2016 models — underfloor diesel fuel cooler may leak and create a fire risk. Confirm with Jaguar using VIN.
Run a diagnostic scan for stored fault codes
Check for P25A9 (piston solenoid), DPF-related codes, AdBlue system faults, and timing chain-related faults.

Recalls and Technical Service Bulletins

Underfloor diesel fuel cooler leak — potential fire risk (2016 models, recall J079) Verify completed

Emissions software and hardware update (built Nov 2016 - Jul 2018, recall H149) Verify completed

Fuel return pipe leak (built Nov 2019 - Apr 2021, recall H359) Verify completed

Driver airbag inflator propellant deterioration (2015-2016 build) Verify completed

Seatbelt pre-tensioner may fail to operate (built Jan - Mar 2022, recall H412) Verify completed

Contact Jaguar with the VIN to verify all recalls have been completed. The timing chain issue is NOT covered by an official recall despite JLR acknowledging the problem in a technical bulletin. The fuel cooler recall (J079) on 2016 diesel models is particularly important due to the fire risk.

Warranty Status

Factory warranty (3 years / unlimited km) Expired on most used examples

Rust perforation warranty (6 years) Check remaining coverage based on build date

Extended warranty availability Available through Jaguar dealers and third parties

Most used XE 2.0d models are outside their original 3-year factory warranty. Jaguar offers extended warranty programmes, but check exclusions carefully — pre-existing timing chain wear may not be covered. Third-party warranties are available but often exclude known Ingenium engine issues.

Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.

This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.

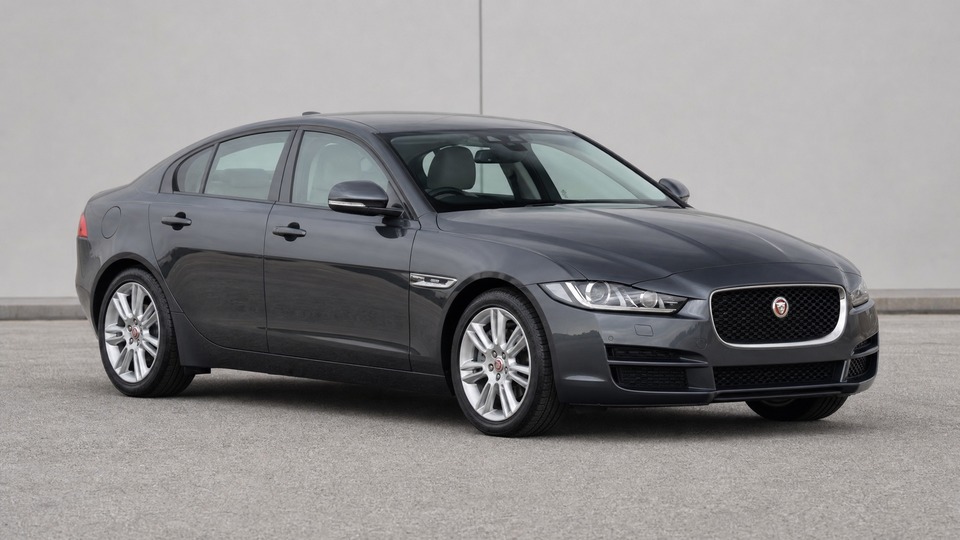

Jaguar XE 2.0d X760
