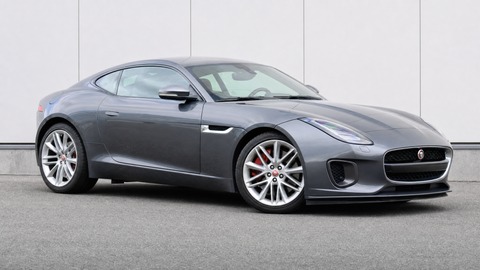

Jaguar F-Type V6 S X152

The lower Y-shaped plastic coolant pipe sits in the engine valley beneath the supercharger and is prone to cracking with age and heat cycling. When it fails, coolant pools on the block between the two cylinder banks. The repair is expensive primarily because the supercharger must be removed to access the pipes, requiring roughly 10 hours of labor. Parts are inexpensive (around €150 for the pipes), but total dealer cost typically reaches €2,500-3,500. Independent specialists can complete the work for €1,500-2,000. Many owners choose to replace all plastic coolant components simultaneously as a preventive measure. Upgraded aluminium replacement pipe kits are available from aftermarket suppliers and are strongly recommended. This issue is more common on pre-2016 cars but can affect any model year.

The OEM spring-loaded coupler connecting the supercharger drive shaft to the rotor assembly wears over time. The spring rubs against the shaft, eventually cutting grooves in it. Symptoms include a rattling or clattering noise at idle, particularly on cold starts and engine shutdown. Jaguar specialists report this as very common on V6 and V8 supercharged engines. The repair requires supercharger removal (6+ hours labor). Most specialists now recommend replacing the original spring coupler with a solid Eaton coupler (part ~€50-120) as a permanent fix. Total repair cost including labor ranges from €800 at an independent specialist to €2,000 at a Jaguar dealer. If ignored, the worn coupler can eventually damage the supercharger snout shaft, making the repair significantly more expensive.

The water pump on the supercharged V6 is mechanically driven and positioned at the front of the engine. Coolant can infiltrate the bearing housing, corroding the water pump bearing and causing the impeller shaft seal to fail. Symptoms include a low coolant warning and visible traces of coolant around the pump pulley. Early cars (2013-2015) were particularly prone, sometimes failing before 30,000 km. The pump itself costs approximately €200-350, and the repair is relatively accessible at the front of the engine. Total cost including labor runs €600-1,500 depending on whether additional coolant pipes need replacing at the same time. Many specialists recommend replacing the small plastic coolant pipe connecting to the pump during the job, as it is fragile and likely to break during removal.

The F-Type V6 S features an active exhaust system with electronically controlled butterfly valves in the rear silencer. These valves can seize open or closed if the car is not driven regularly or the exhaust button is rarely used. Symptoms include the exhaust sounding the same regardless of the mode selected, or an exhaust squeak. A new OEM rear silencer assembly from Jaguar costs €1,500-2,500. However, aftermarket specialists offer exchange services with new stainless steel valves for €400-500, or individual replacement valves for around €130 each. High-temperature lubricant can sometimes free a stuck valve as a temporary measure. Regular use of both quiet and loud modes helps prevent seizure.

The rear differential pinion seal can develop leaks, allowing differential oil to escape. On the standard mechanical differential, a seal replacement costs approximately €500-800. However, V6 S models equipped with the optional electronic differential (E-Diff) require special Castrol BOT 720 fluid only available through Jaguar dealers, and if the differential internals are damaged from running low on oil, replacement costs can reach €3,000-3,500. Listen for whining noises from the rear axle and check for oil residue around the differential housing. Regular differential oil changes help extend seal life.

Jaguar acknowledged that the underbody cross braces had insufficient zinc-nickel plating, making them susceptible to road grit sandblasting the coating off the leading edges. Surface rust appears quickly, sometimes even on nearly-new cars. Jaguar issued a Special Service Message and updated replacement braces are available with improved plating. The replacement cost is modest (€300-800 for parts and labor), and the corrosion is largely cosmetic and structural integrity is not compromised on most examples. However, buyers should inspect the underside carefully and factor in the cost of new braces as a routine item. Cars stored outside in winter or regularly driven on salted roads are most affected.

The signature rising centre dashboard vent is a common failure point. The motor or mechanism jams, leaving the vent stuck open or closed. Jaguar dealer quotes vary widely from €400-1,500, but the repair is straightforward and well-documented. Independent specialists charge €200-400 including parts. The vent assembly itself costs approximately €200, and the swap takes under an hour. Many owners report this as an annoying but minor issue that has no effect on climate control function, only the direction of airflow.

Some F-Type owners report fine hairline cracks developing in the headlight lenses, particularly on 2016-2018 models. Separately, failed headlight seals can allow moisture to enter, causing condensation that does not clear after driving. Light misting that clears is considered normal, but persistent fogging or visible water droplets indicate a seal failure. Moisture can corrode internal LED driver modules. Full headlight assembly replacement from Jaguar is expensive (€1,500-3,000 per unit), but seal repairs by specialists cost significantly less. This issue affects a relatively small number of cars.
