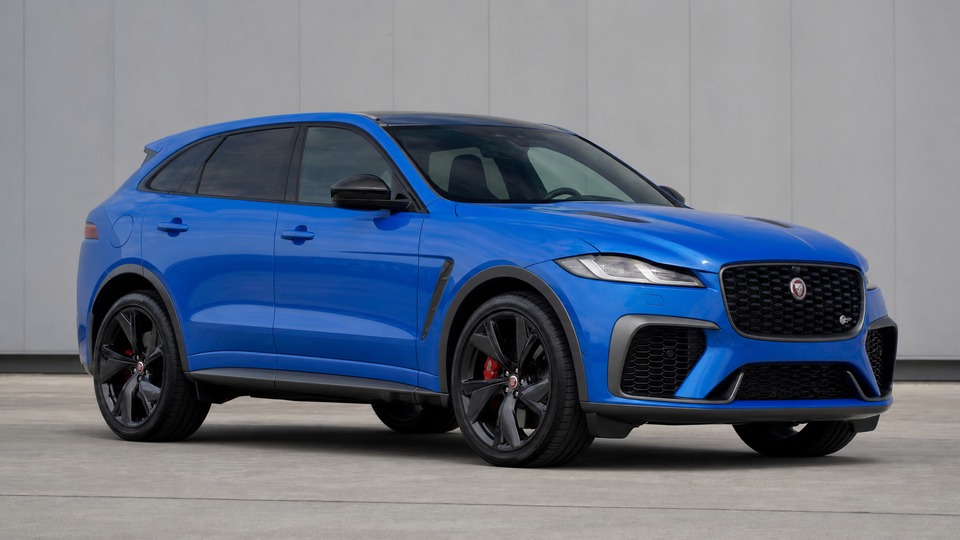

Jaguar F-Pace SVR 5.0 V8 X761

The AJ133 supercharged V8 has a documented timing chain tensioner weakness, acknowledged by Jaguar in Technical Service Bulletin SSM 71932 (2021). The hydraulic tensioner's internal check valves are prone to clogging from oil sludge, particularly when service intervals exceed 16,000 km or when non-approved oil grades are used. The SVR's higher output and more aggressive driving profile appears to accelerate wear compared to the same engine in the Range Rover Sport. Symptoms begin with a metallic rattle lasting 2-5 seconds after cold start, which is the chain slapping against its guides while the tensioner repressurises. If the tensioner seizes entirely, the chain can skip teeth, causing catastrophic valve-to-piston contact. Pre-2014 AJ133 engines used a narrower 6.35mm pitch chain that was more failure-prone; from 2014 Jaguar upgraded to an 8mm pitch chain with hardened steel contact pads on the guide backs, which reduced but did not eliminate the issue. For F-Pace SVR models (all 2018+), the updated chain design is standard, but tensioner plunger seizure remains documented between 70,000-110,000 km. Caught early (tensioner, guides, and chain replaced preventively), specialist repair costs €2,000-3,500. If timing has jumped and internal damage has occurred, main dealer rebuilds are quoted at €7,500-9,000. Insist on full oil change history with JLR-approved 5W-30 at strict 12-month intervals.

All JLR supercharged engines share a design weakness in the coolant routing under the supercharger. The original plastic crossover pipes (the Y-pipe is the primary failure point) were seam-welded and degraded rapidly from thermal cycling. Jaguar redesigned these around 2018-2019 as single-piece extrusions, which improved but did not fully resolve the issue, as the material remains plastic. When a pipe cracks, coolant pools in the engine valley between the cylinder banks. If the driver does not notice the low coolant warning promptly, overheating can cause head gasket or cylinder head damage. The SVR generates more heat than the standard 5.0 applications due to higher boost pressures, putting additional thermal stress on these components. Repair requires partial supercharger removal for access, making it labour-intensive. Jaguar dealer repair with OEM replacement pipes typically costs €1,500-2,500. Independent specialists offering aftermarket aluminium upgrade kits (from brands like RKX or Euro-AMP, parts cost €150-250) charge €1,200-1,800 total. Proactive replacement with aluminium pipes during other engine work is strongly recommended by the JLR specialist community. Always check coolant level and look for residue or staining around the supercharger and valley area.

The Eaton TVS supercharger uses a spring-loaded coupler (also called the isolator or snout coupler) to connect the belt-driven nose cone to the internal rotor pack. This spring absorbs vibration but is a known wear item that eventually fractures, producing a distinctive metallic rattling from the top of the engine that is most audible at idle and diminishes under load. The noise is often confused with timing chain rattle, but the character is different: the coupler rattle is more irregular and metallic. If ignored, a failed coupler can damage the nose cone bearings and supercharger internals. The coupler part itself costs only €30-50 for an aftermarket solid replacement (recommended over the factory spring type by most specialists), but the supercharger must be removed to access it, adding significant labour. Independent specialists charge €500-800 total for the job. If the worn coupler has already damaged the nose cone bearings, a complete snout refurbishment runs €800-1,500. Jaguar dealers typically quote the upper end of this range. TSB SSM75114 documents a related exhaust valve rattle issue that should be differentiated during diagnosis.

The mechanical water pump on the AJ133 5.0 V8 is prone to premature seal failure. The root cause is coolant getting past the seal face and corroding the pump bearing, which allows the impeller shaft to develop play, further degrading the seal in a self-reinforcing cycle. K Motors (a UK JLR specialist) reports that some 5.0 supercharged pumps have failed at under 30,000 km. Symptoms include a low coolant level warning on the dashboard and visible weeping or crusting around the water pump pulley area. Jaguar released an updated water pump part (revised bearing seal design) that addresses the issue. Independent specialist replacement with the updated part costs approximately €600-800. Jaguar dealer replacement runs €1,000-1,500. Early detection is critical: if the pump fails completely while driving, the engine can overheat rapidly, especially under the sustained high loads that SVR drivers tend to generate. Always check the water pump area for coolant residue during a pre-purchase inspection.

The SVR uses an electronically controlled rear differential that requires Castrol BOT 720 fluid. A documented issue is the rear diff vent becoming clogged with road debris, especially in wet or cold climates. When blocked, the differential pressurises internally during normal temperature cycling, which can blow out the rotating shaft seals. Once seals leak, the differential loses fluid, leading to accelerated internal wear. Fluid analysis on affected vehicles has shown elevated wear metals consistent with premature bearing and gear erosion. If caught at the seal stage, repair costs €400-800 at a specialist. If the differential has run low on fluid and internal damage has occurred, complete replacement is necessary at €3,000-4,000 including parts and labour. JLR recommends a drivetrain service at 100,000 km that includes front and rear differential and transfer case fluid changes, but many specialist mechanics recommend the rear diff fluid be changed earlier, around 60,000 km, and the vent inspected and cleaned at every service.

JLR's electrical systems remain a persistent weak point across the range, and the F-Pace SVR is no exception. The InControl Touch Pro infotainment system is prone to freezing, rebooting, and intermittent failures of connected features. Forum threads on fpaceforum.com and fpaceforums.co.uk spanning hundreds of posts document these issues extensively. The system was replaced by Pivi Pro on 2021+ facelift models, which improved matters but introduced its own software quirks. Other common electrical complaints include phantom forward-collision braking events (the car brakes hard for no reason), intermittent 'SOS Service Limited' warnings, key-fob synchronisation failures, and 12V battery drain when parked for more than 5-7 days. Software resets resolve many issues, but when the infotainment control module (ICM) or telematics unit fails outright, replacement runs €600-2,500 at a Jaguar dealer. JLR has an internal policy in some markets to cover ICM-related failures for up to 10 years or 160,000 km, though this is not advertised. Test all electronics thoroughly during inspection: cameras, parking sensors, lane-keep assist, adaptive cruise control, and the touchscreen system.

Multiple F-Pace SVR owners, particularly on 2020-2022 model years, have reported premature front wheel bearing failures. The symptom is a clicking or grumbling noise most apparent at low speeds and during slow turns. One fpaceforum.com thread documents an owner who had three front wheel bearings replaced within 45,000 miles. The F-Pace uses a bolt-in hub design rather than pressed bearings, which makes replacement relatively straightforward. Specialist repair costs €350-700 per side. The issue is not unique to the SVR but appears more common on it, likely because the SVR's 22-inch wheels, wider tires, and heavier weight put greater loads on the bearings. When inspecting, drive the car in slow figure-eights in a car park and listen for any clicking or grumbling. If a bearing is worn, replacement should not be delayed as a failed bearing can lock the wheel.

The SVR's active exhaust system uses vacuum-operated butterfly valves to switch between quiet and loud exhaust modes. Jaguar issued TSB SSM75114 documenting a known rattle from the tailpipe actuator valves inside the muffler assembly. The valve shafts can corrode from moisture exposure and seize open (permanently loud) or closed (permanently muted), or they develop a rattle at idle when partially stuck. When the valve mechanism fails, Jaguar's standard remedy is to replace the entire rear muffler assembly, which is expensive at €1,500-2,000 from a dealer. Aftermarket specialists offer individual valve repair or stainless steel replacement valves for €500-800 including fitting. Some owners have had success freeing stuck valves with penetrating oil, but this is typically a temporary fix. The issue is cosmetic in the sense that it does not affect performance, but many SVR buyers value the exhaust note switching, and a constantly-loud SVR in residential areas can cause practical problems.
