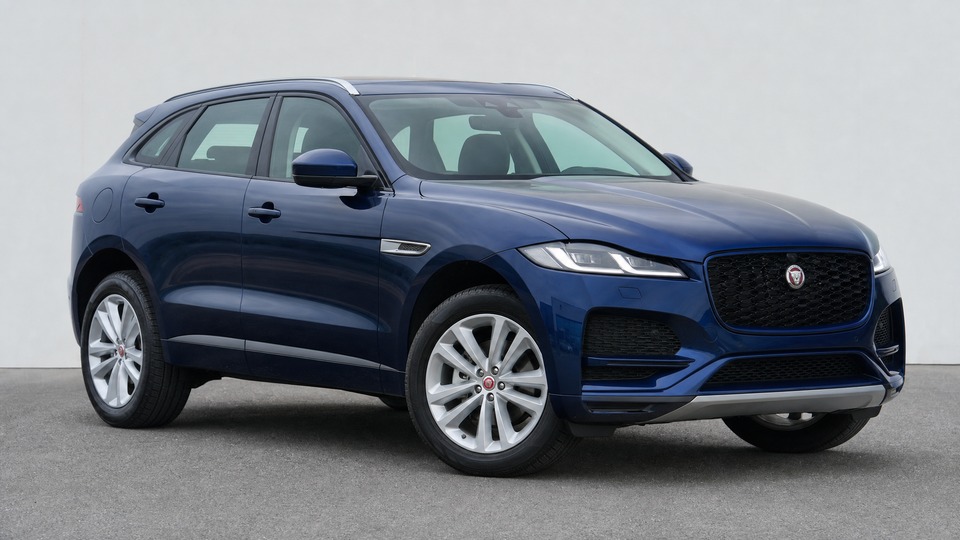

Jaguar F-Pace 3.0 V6 X761

The AJ126 engine has two large plastic crossover pipes: one visible on top and one underneath the supercharger. These two-piece pipes are plasti-welded at the seams, and these seams crack and split over time due to heat cycling. JLR issued a Technical Service Bulletin in 2018 acknowledging the defective parts but never issued a recall. Failure typically occurs between 50,000-120,000 km, often with little warning — owners report finding puddles of coolant or receiving a low coolant warning. If caught early, replacement costs €1,500-2,500 at a specialist (the supercharger must be removed for access to the lower pipe). If the engine overheats before the leak is noticed, head gasket damage can occur, pushing costs to €3,500+. Many owners proactively replace the plastic pipes with aftermarket aluminium versions (available from RKX, euro-amp, and others) as preventive maintenance. Jaguar has also released updated aluminium outlet pipes. This is widely considered a 'when, not if' failure on pre-2019 cars.

The water pump on supercharged 3.0 and 5.0 JLR engines is prone to premature failure. Coolant seeps into the bearing housing, corrodes the bearing, and eventually allows water to escape. Failures are commonly reported between 60,000-100,000 km. Symptoms include a low coolant warning and visible coolant traces near the pump. Replacement at an independent specialist costs approximately €800-1,200 (parts and labour). At a Jaguar dealer, quotes of €1,500-1,800 are common. Some owners replace the water pump at the same time as the coolant pipe upgrade, since the supercharger is already removed, which saves on repeat labour costs.

The supercharger uses an Eaton TVS rotor pack with a spring-loaded coupling (isolator) between the belt-driven input shaft and the rotor. The spring weakens over time, producing a rattling or clattering noise from the supercharger area, particularly noticeable at idle and low RPM. JLR released a revised coupler design around 2018. The coupler part itself is inexpensive (€40-80 for an aftermarket upgrade), but the labour is significant because the supercharger must be removed. Total repair at a specialist runs €600-1,000; at a dealer, €1,200-1,500. Many owners opt for a solid polyurethane or oil-filled nylon coupler as a permanent fix, which eliminates the rattle at the cost of slightly more mechanical noise transmission.

The AJ126 V6 shares the same timing chain design weakness as the AJ133 V8: plastic guides that can become brittle over time and hydraulic tensioners that gradually lose effectiveness. However, the V6 is less frequently affected than the V8 and issues tend to appear at higher mileages (typically above 120,000-150,000 km). Symptoms include a brief rattle on cold start and, in severe cases, rough running or fault codes related to camshaft timing. If the chain jumps teeth, catastrophic piston-to-valve contact can destroy the engine. JLR improved the guides on later production (adding a small steel reinforcement pad) and modified the tensioner contact angle. Frequent oil changes (every 10,000-12,000 km rather than the manufacturer's longer interval) help preserve chain life. A full timing chain replacement at a specialist costs approximately €2,500-3,500; at a dealer, €4,000-5,000.

A small number of F-Pace V6 owners have reported rear differential failures, particularly on 2016-2017 models. The failure produces a noise that sounds like oversized tyres on a truck, making it easy to mistake for a tyre or wheel bearing issue. Some cases have been traced to cracked differential mounts. Jaguar's recommended fluid change interval for the differential is 160,000 km, but many specialists advise changing it every 80,000 km as preventive maintenance. A replacement rear differential at a specialist costs approximately €2,000-3,000 (used/reconditioned unit) or €3,500-4,000 (new unit from Jaguar). This issue appears relatively uncommon and primarily affects early production vehicles.

The InControl Touch Pro system is a well-documented weak point across the entire F-Pace range. Common symptoms include the screen freezing mid-use, going completely blank for several minutes before rebooting, Bluetooth connectivity dropping, navigation refusing to load, and the system failing to shut down with the ignition (which contributes to battery drain). Jaguar's own engineering team acknowledged the system had no feasible fix for certain hardware revisions. Software updates have resolved some issues but have also bricked modules in other cases, requiring complete replacement. A replacement infotainment module costs approximately €1,200-1,500 fitted. The rear camera and parking sensor systems also suffer intermittent glitches. The 2021 facelift introduced the newer Pivi Pro system, which is significantly improved.

The F-Pace has a known tendency to not enter sleep mode properly after the ignition is switched off. Symptoms include the hazard lights remaining faintly illuminated, indicator lights staying on, and audible whirring sounds under the bonnet. A healthy F-Pace should draw under 50 mA when sleeping, but faulty modules can maintain a draw of 200+ mA, flattening the battery within 48-60 hours. Common culprits include the alarm chirp sounder (its internal rechargeable battery degrades and shorts), body control module software faults, and the infotainment system failing to shut down. A dealer software update often resolves the issue. If hardware replacement is needed (alarm sounder, control module), costs range from €200-500. A quality trickle charger is recommended for cars that sit for extended periods.
