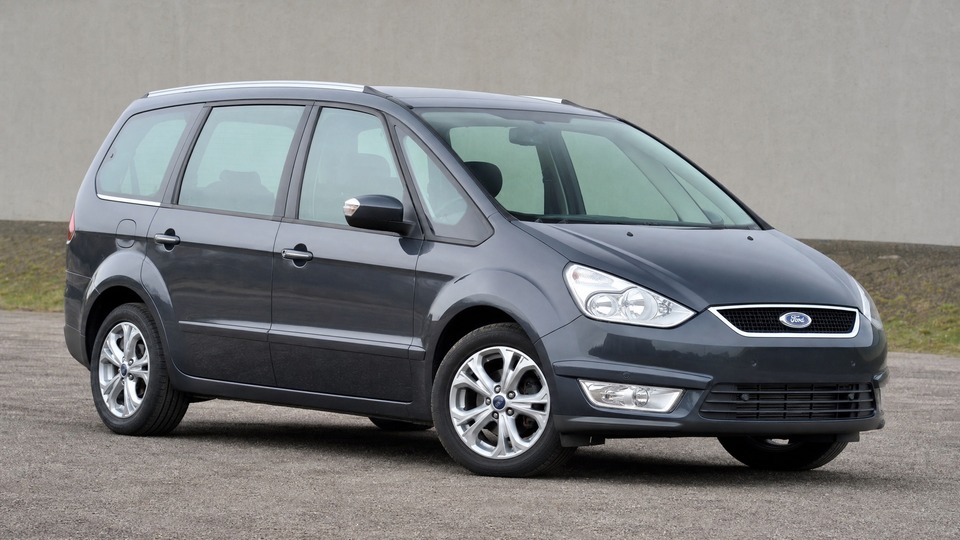

Ford Galaxy 2.0 TDCi Mk2

Galaxy automatics use the Getrag 6DCT450 wet-clutch Powershift transmission. The first-generation clutch design used internal damper springs that frequently crack and contaminate the gearbox with debris. Around 90% of first-generation Powershift failures stem from the clutch or damage caused by its breakdown. Symptoms include jerky low-speed shifts, hesitation from standstill, loss of even-numbered gears (2/4/6), and 'Transmission Malfunction' warnings. Ford's claim of a lifetime fluid fill is misleading; the transmission needs fluid and filter changes every 60,000 km or 3 years. Skipping this service dramatically increases failure risk. Specialist rebuild costs €1,500-3,000, while a Ford dealer replacement can reach €4,000 or more. Manual gearbox Galaxy models avoid this issue entirely.

The DPF on the 2.0 TDCi needs exhaust temperatures above 600 degrees for passive regeneration, which only happens during sustained motorway driving. Short urban trips are the primary cause of blockage. The system uses a fuel vaporizer (5th injector) to initiate forced regeneration. This vaporizer can become blocked with carbon buildup, typically around 150,000 km, and the glow plug element within it weakens over time. A Ford technical bulletin also identifies a fuse blown by internal short-circuit in the vaporizer due to overheating. Pressure sensor hoses deteriorate from heat cycling, causing false readings. Professional DPF cleaning costs €300-500; vaporizer replacement runs €200-400; full DPF replacement costs €1,500-2,500. Post-2010 facelift models have a more complex system that is more sensitive to driving patterns.

The dual-mass flywheel absorbs torsional vibrations from the diesel engine but is a known wear item on all Ford TDCi models. The Galaxy's heavier body (1,750-1,850 kg) and frequent use as a fully loaded family hauler puts extra strain on the DMF. Symptoms include a metallic rattling at idle that changes or disappears when the clutch pedal is depressed, vibration through the pedals, and difficulty engaging gears smoothly. Some owners report failure as early as 80,000 km, particularly on cars used in stop-start urban traffic. The clutch must always be replaced at the same time since the gearbox has to be removed. Total cost including clutch kit, DMF, and labour runs €1,000-2,000 depending on whether you use an independent specialist or Ford dealer.

The EGR valve recirculates exhaust gases to reduce NOx emissions but accumulates carbon deposits over time, especially with short-trip driving. When clogged, it causes loss of power, rough idle, increased fuel consumption, and engine malfunction warnings. The valve is located at the rear of the engine and is difficult to access. Removal requires taking off wipers, cowl panel, and an engine mount, plus draining the coolant. A new EGR valve costs €200-400 for the part alone; with labour, expect €350-600 at an independent garage or €800-1,200 at a Ford dealer. Ford released a revised calibration that cycles the valve upon engine shutdown to help prevent future buildup. Post-2010 Euro 5 models tend to suffer this more frequently due to increased EGR flow rates.

The variable-geometry turbocharger uses movable vanes to optimize boost across the rev range. These vanes can stick from carbon buildup if the car is driven too gently or only on short trips, as the vanes remain in the same position for extended periods. Symptoms include loss of power, limp mode activation, black smoke, and diagnostic code P2263 (boost pressure performance). A professional turbo cleaning service costs €300-500 and resolves many cases. However, if the actuator mechanism is mechanically damaged, the entire turbo may need replacing at €1,200-2,000. Ford does not sell the actuator separately. Specialist turbo actuator repair services can fix just the actuator for €150-300. Regular spirited driving that gets the turbo working through its full range helps prevent vane sticking.

The injector leak-off (return) pipes and seals are a very common failure point on the 2.0 TDCi. Specialists report that return pipe or seal deterioration accounts for roughly 99% of injector-related complaints. Symptoms include diesel smell in the engine bay, hard starting, and visible fuel weeping around the injectors. Seal replacement is inexpensive at €200-400 including labour. The Siemens/Continental piezo injectors themselves can fail internally after 150,000+ km, causing rough idle, misfires, and black smoke. A single injector costs €200-400 reconditioned or €400-600 new. If all four need replacing, expect €1,500-2,000 at a specialist. Injectors can seize in the cylinder head, requiring specialist extraction tools that add to labour costs.

Specialists describe the AC system as one of the most common failure areas on the Mk2 Galaxy specifically. The receiver/drier unit corrodes over time, allowing a slow gas leak that gradually reduces cooling performance. If ignored, the compressor has to work harder and can fail, turning a €400 repair into a €1,000-1,200 job requiring full system replacement (compressor, condenser/drier, expansion valve, flush, and regas). Annual AC servicing and regas can catch the issue early. Replacement of just the receiver/drier with regas costs around €400 at an independent garage.

The front wiper linkage spindles corrode over time, initially causing juddering and eventually complete seizure. Early detection allows mechanical cleaning, but advanced corrosion requires full wiper mechanism replacement at around €300. The alarm control module sits in the front passenger wheel arch and is prone to water damage, causing random alarm activations and central locking malfunctions. Door wiring looms deteriorate at the rubber grommets where wires pass through the door hinges, affecting electric windows and central locking. Keeping drain channels clear and applying dielectric grease to wiring connectors during servicing helps prevent these issues.
